Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQD150

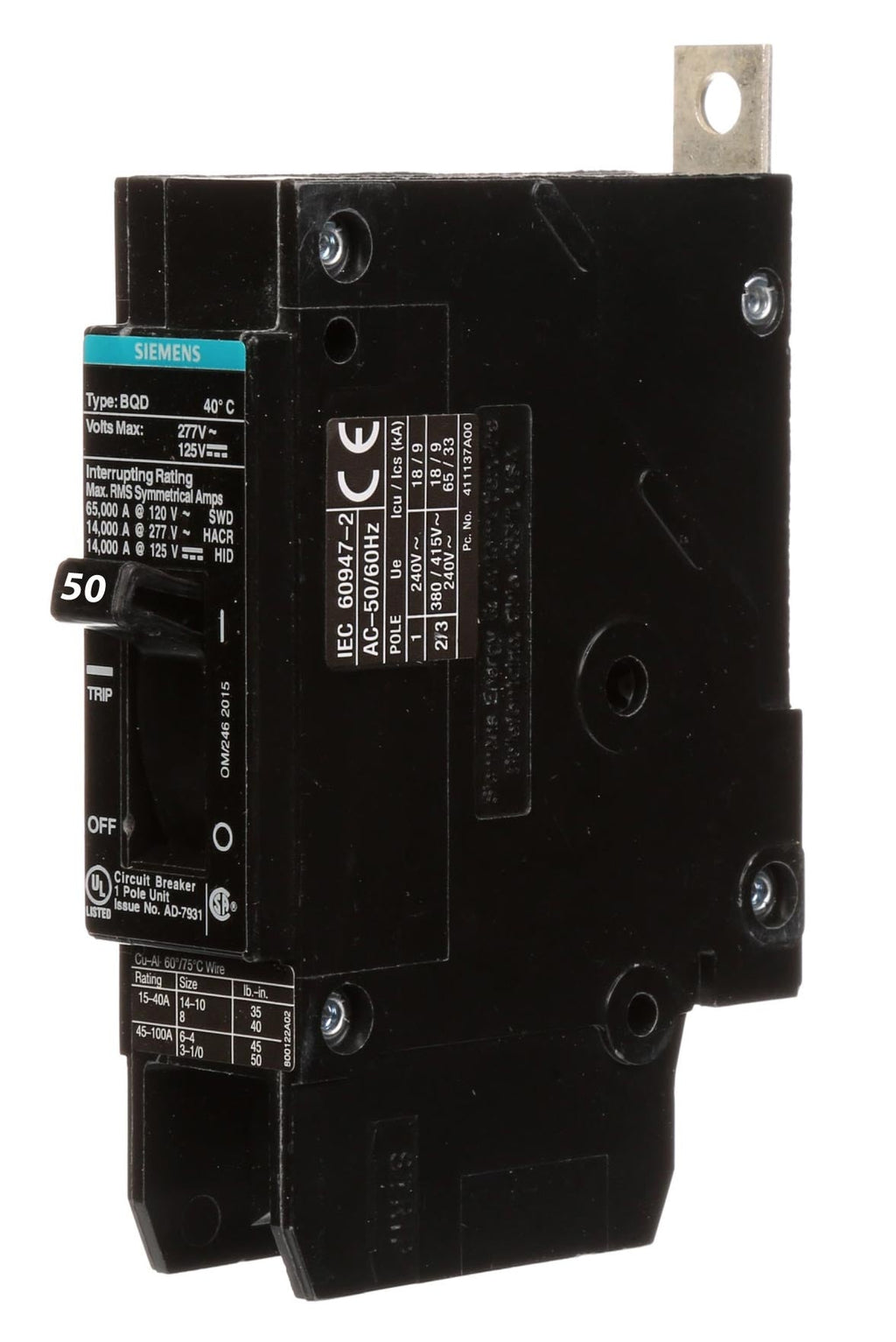

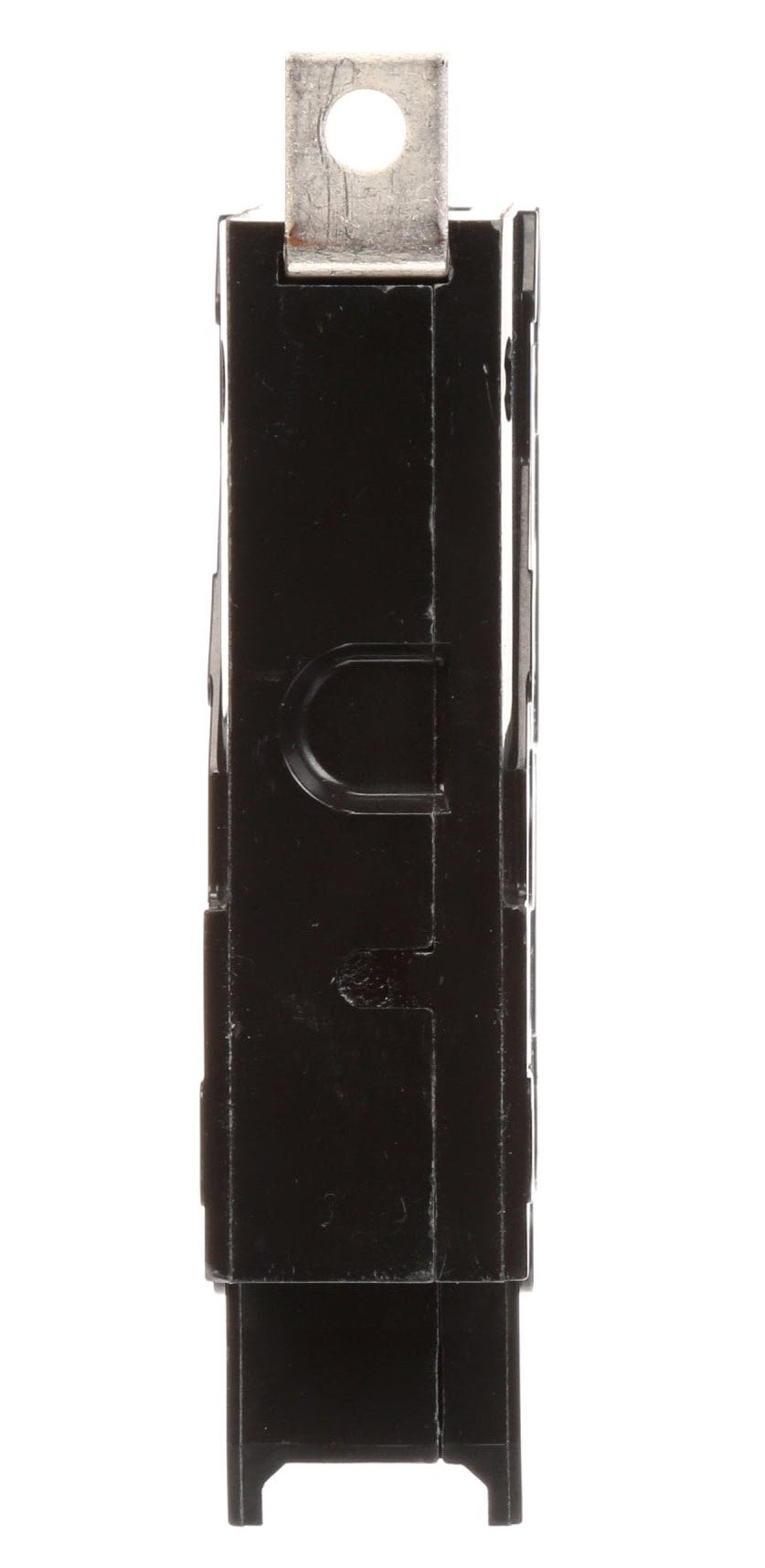

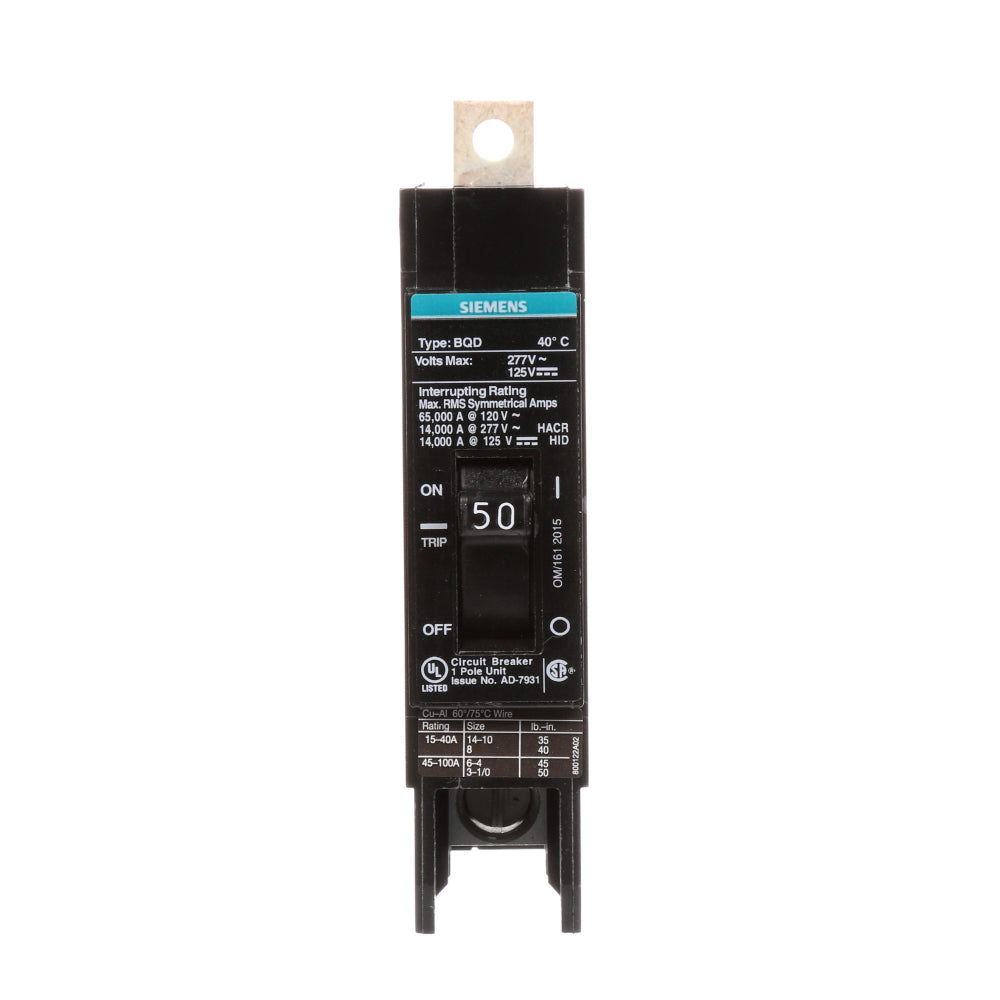

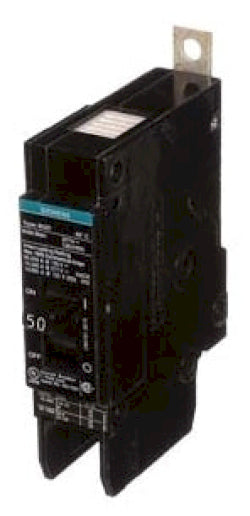

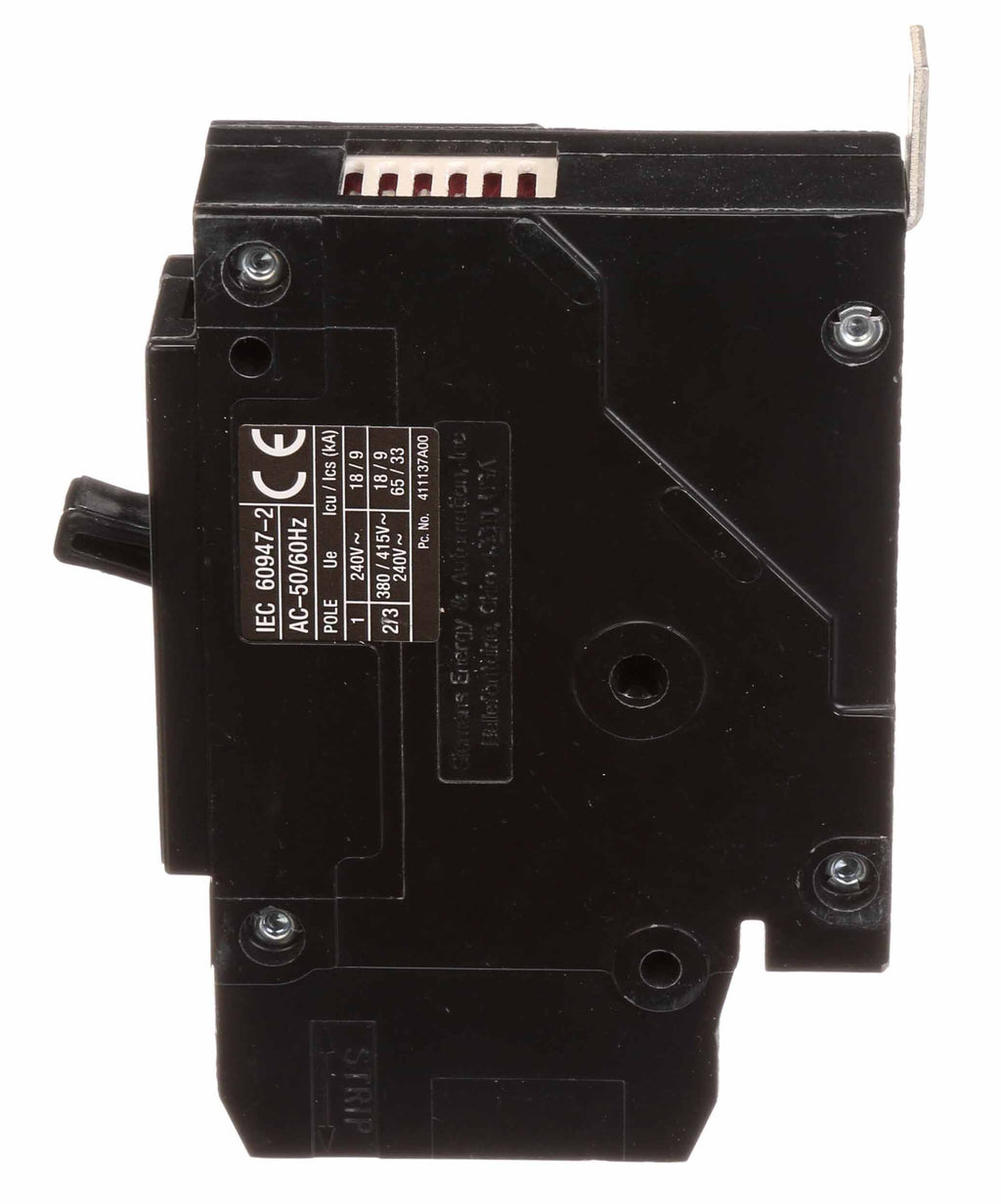

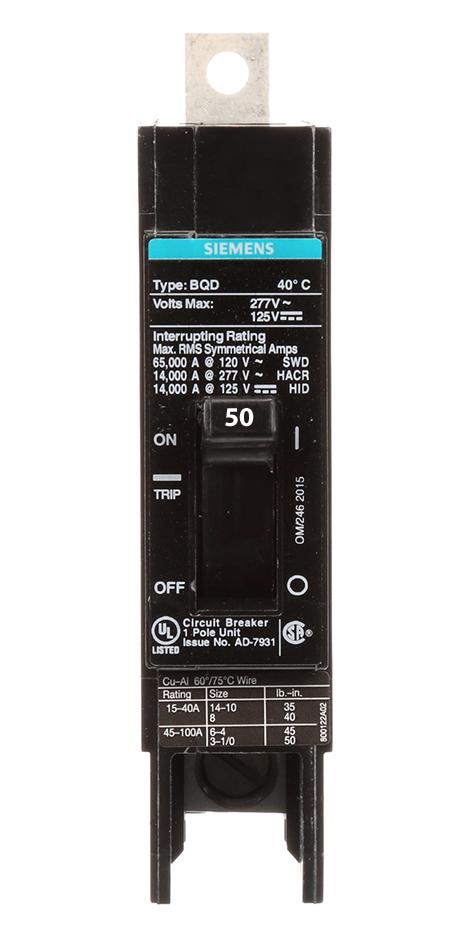

BQD150 - Siemens 1-pole, 50 ampere molded case circuit breaker designed for bolt-on mounting in panelboards.
Siemens BQD150 features thermal-magnetic trip unit, rated for 277 VAC with 14 kA interrupting capacity at 277V and 480Y/277V systems, suitable for commercial and industrial applications requiring reliable overcurrent protection.
Key Specifications
- Amperage: 50A
- Voltage: 277 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14 kA @ 277 VAC
- Series/Frame: BQD
- Trip Unit: Thermal-Magnetic
- Interrupting Rating @ 120 VAC: 65 kA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BQD150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 277
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/BQD
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 078364327715
- GTIN : 00783643277151
- Country of Origin : Mexico
- Dimensions : 1 in x 4.49 in x 4.49 in
- Weight : 0.56
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 498
- Certification : CSA-C22.2,UL 498
