Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQD135

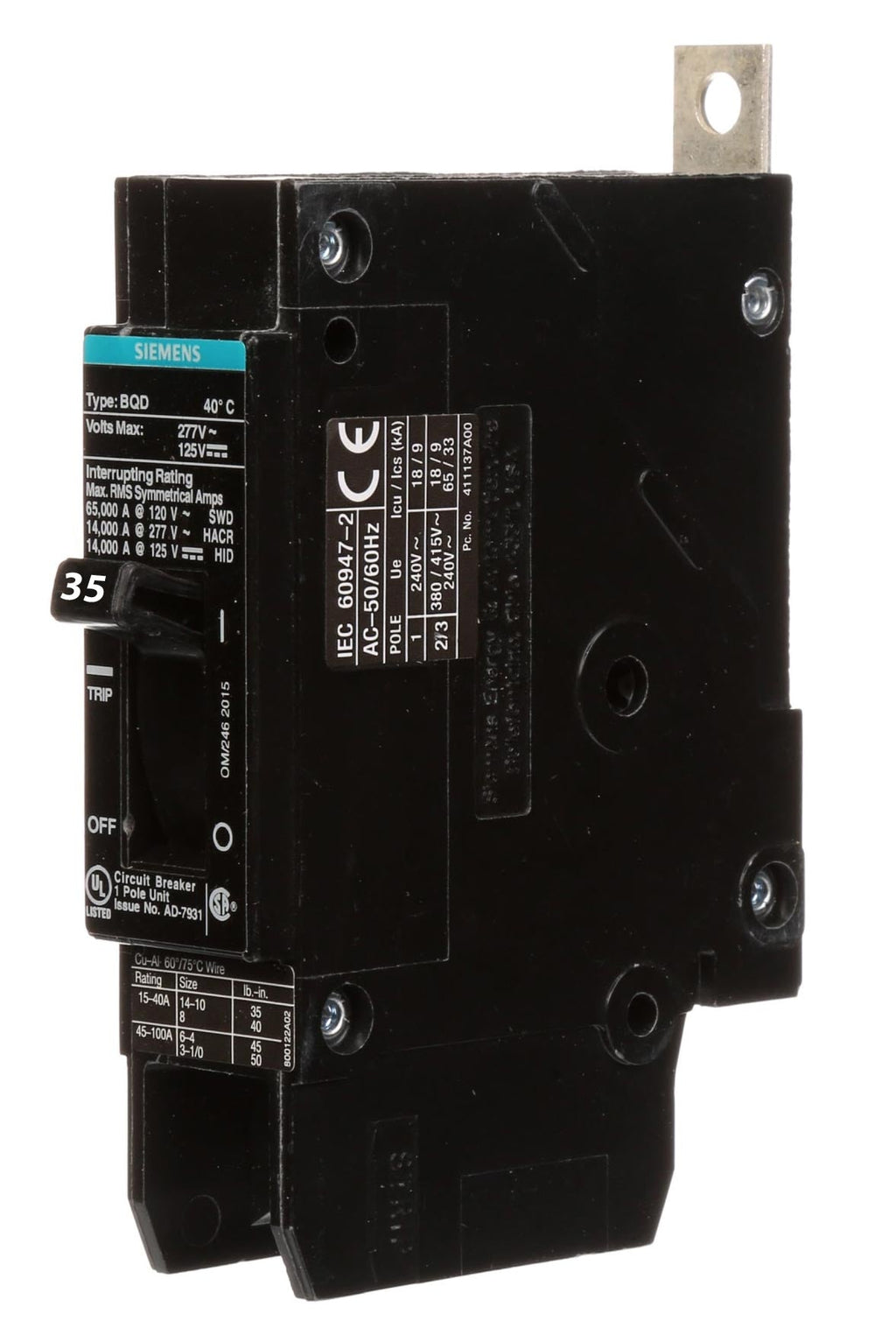

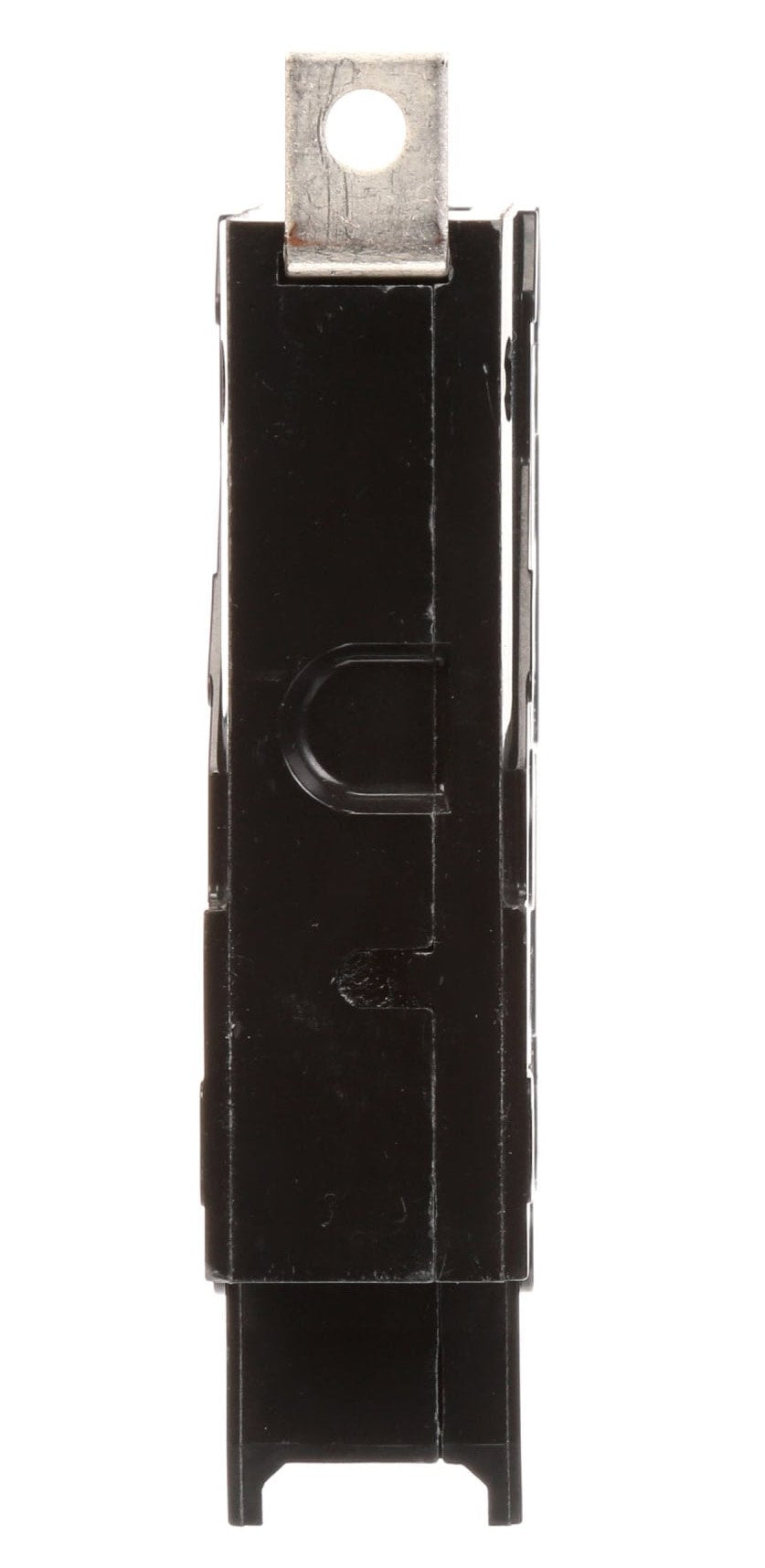

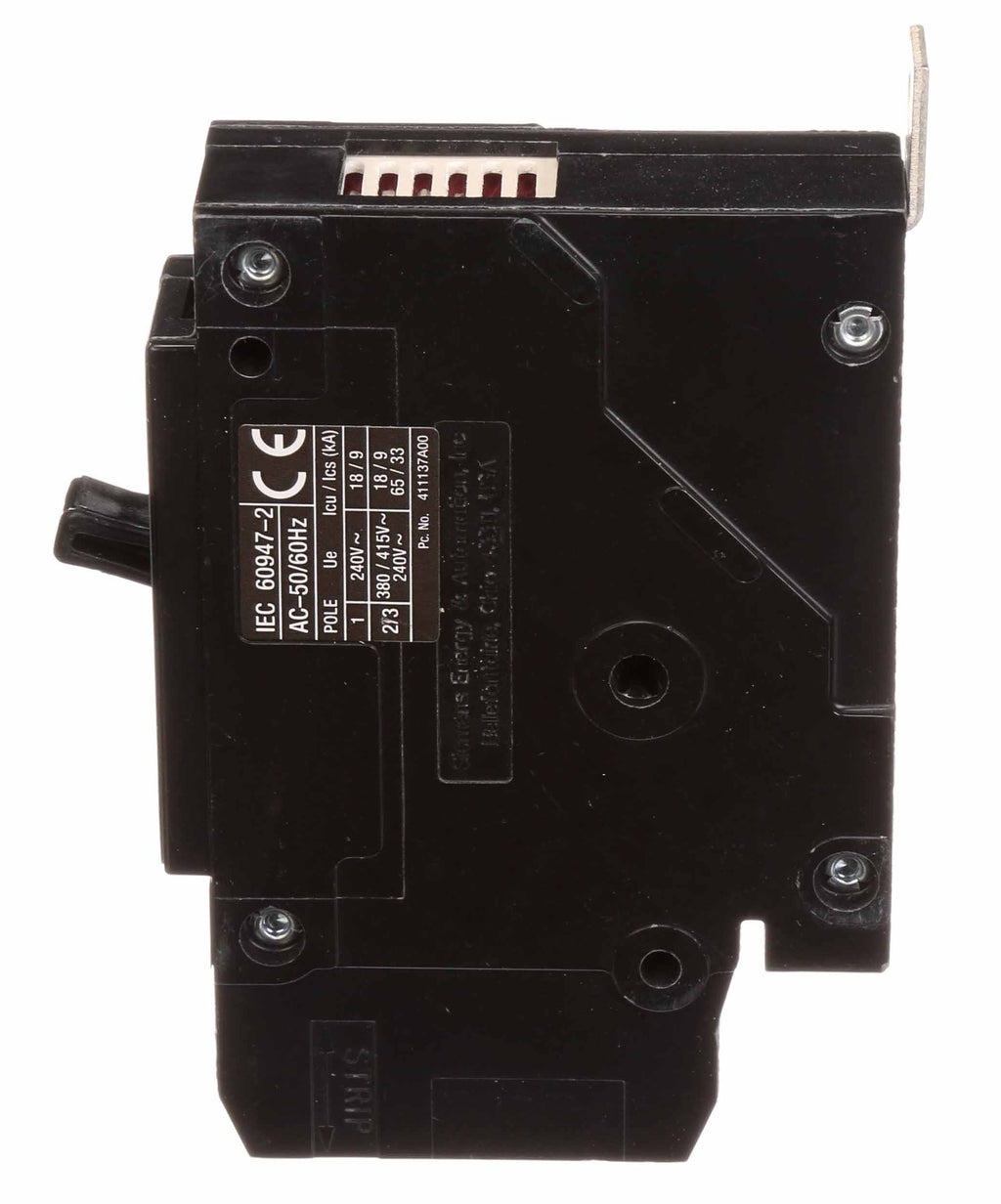

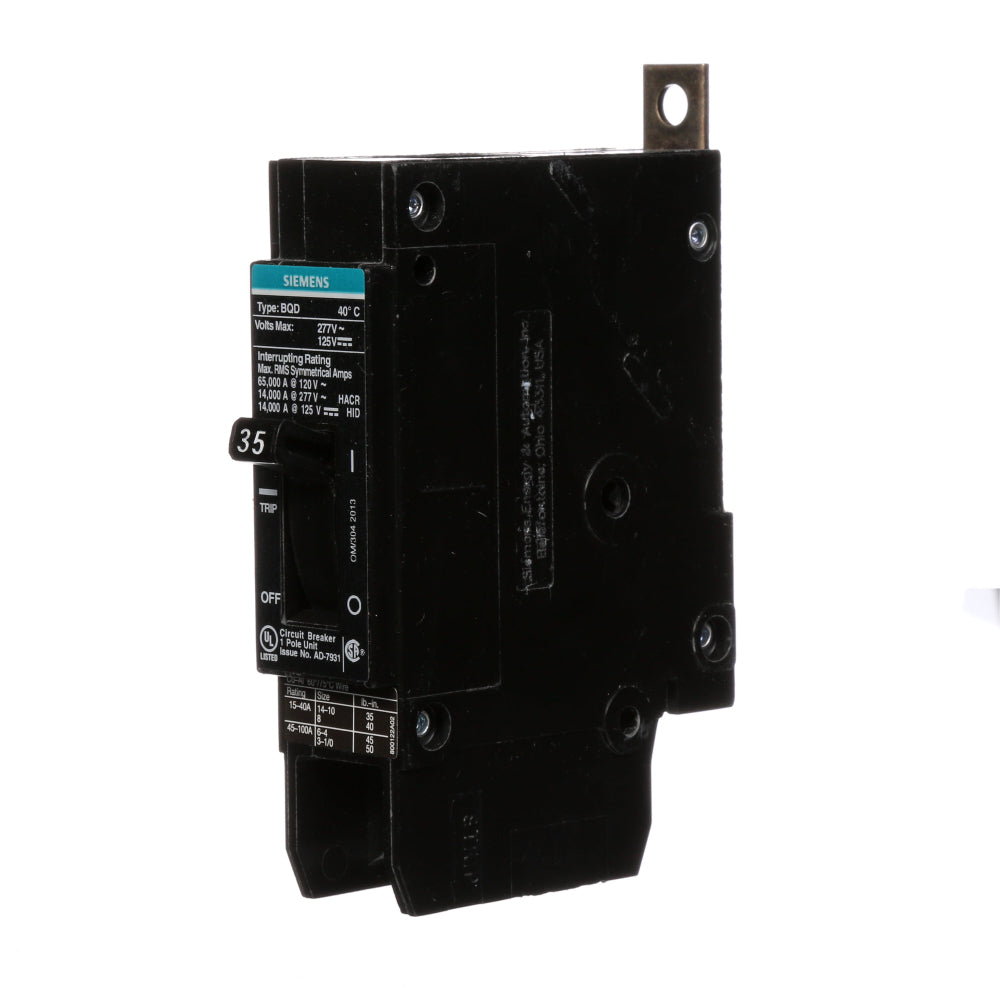

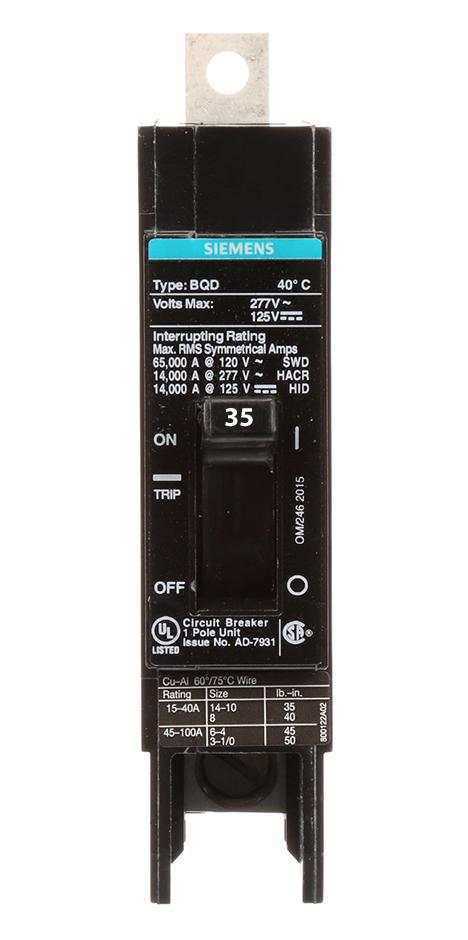

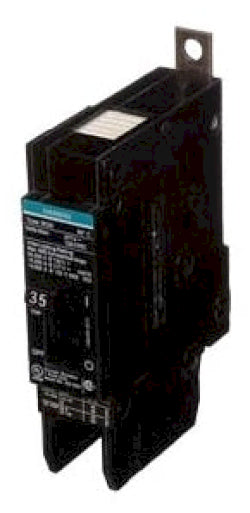

BQD135 - Siemens 1-pole molded case circuit breaker with thermal magnetic trip, rated at 35A and 277VAC.The Siemens BQD135 features a BQD frame in a compact molded case design for light commercial and industrial applications. It provides reliable thermal magnetic protection with 1 pole configuration, 120/277 VAC at 60 Hz or 125 VDC ratings, and 35 ampere capacity at 40 deg C. Interrupt rating is 14 kA at 277 VAC.
- Part Number: BQD135
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Frame: BQD
- Poles: 1
- Amperage: 35A at 40 deg C
- Voltage: 120/277 VAC 60 Hz, 125 VDC (UL)
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 14 kA at 277 VAC
Specifications
- Part Number: BQD135
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 277
- Amperage : 35
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/BQD
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277120
- GTIN : 00783643277120
- Country of Origin : Mexico
- Dimensions : 1 in x 4.49 in x 4.49 in
- Weight : 0.549
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 495
- Certification : CSA-C22.2,UL 495
