BQD1100 - Siemens 100 Amp 277V 1-Pole BQD Series Molded Case Circuit Breaker 14kA Interrupt Rating

BQD1100

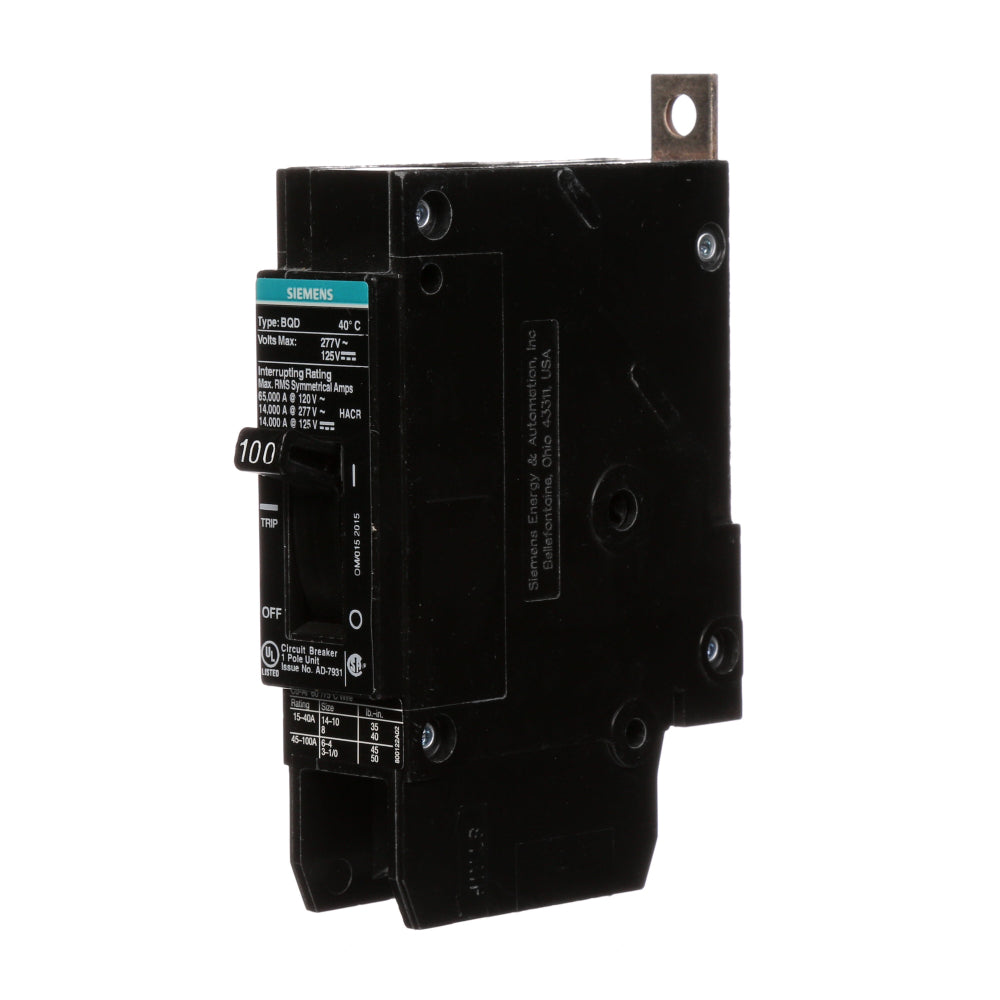

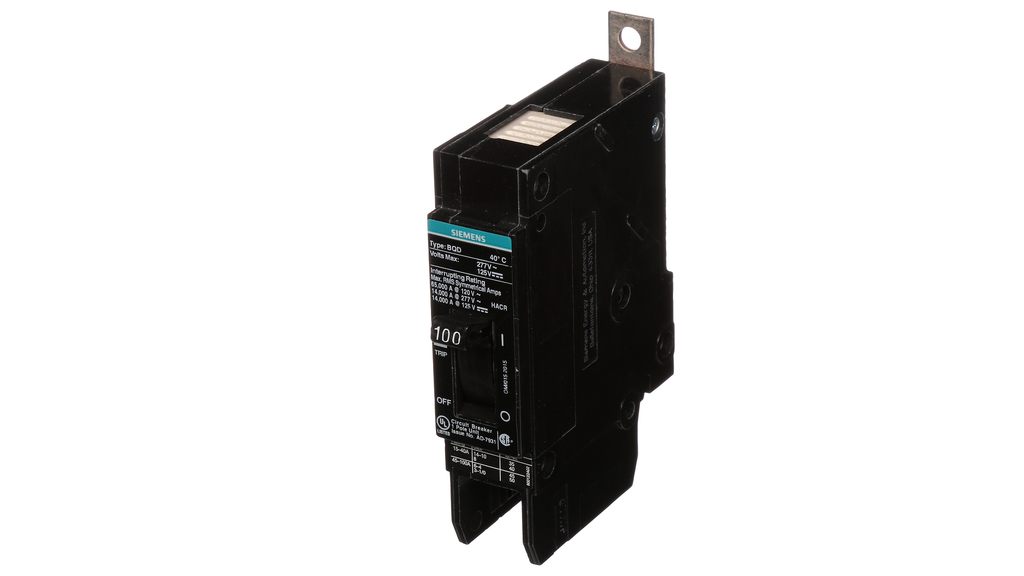

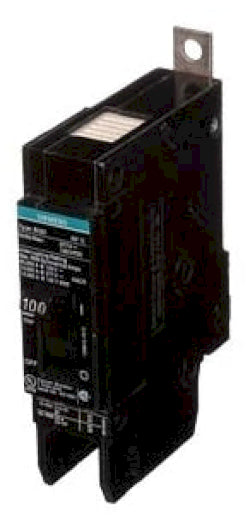

BQD1100 is a Siemens 100 Amp, 277 Volt AC, 1-Pole molded case circuit breaker from the BQD series designed for reliable circuit protection.This Siemens BQD1100 circuit breaker features a thermal magnetic trip unit, a bolt-on mounting type, and an interrupting rating of 14,000 amperes at 277 Volts AC. It is ideal for lighting panels and general circuit protection applications, meeting UL 489 standards.

Key Specifications
• Amperage: 100 Amp
• Voltage: 277 Volts AC
• Number of Poles: 1
• Series/Frame: BQD
• Mounting Type: Bolt-On
• Interrupt Rating: 14,000 Amperes at 277V AC
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD1100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 277
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277205
• GTIN : 00783643277205
• Country of Origin : Mexico
• Dimensions : 1 in x 4.49 in x 4.49 in
• Weight : 0.549
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 489
• Certification : CSA-C22.2,UL 489
