Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQD115

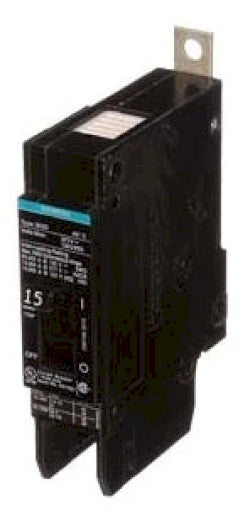

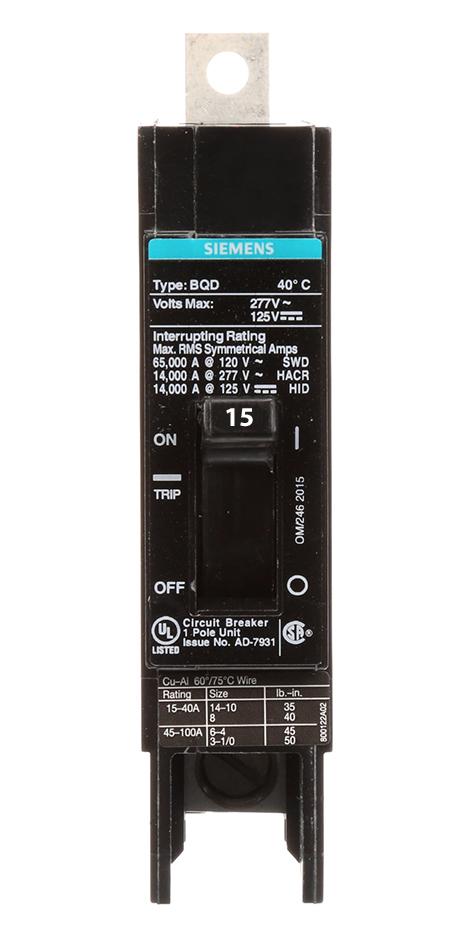

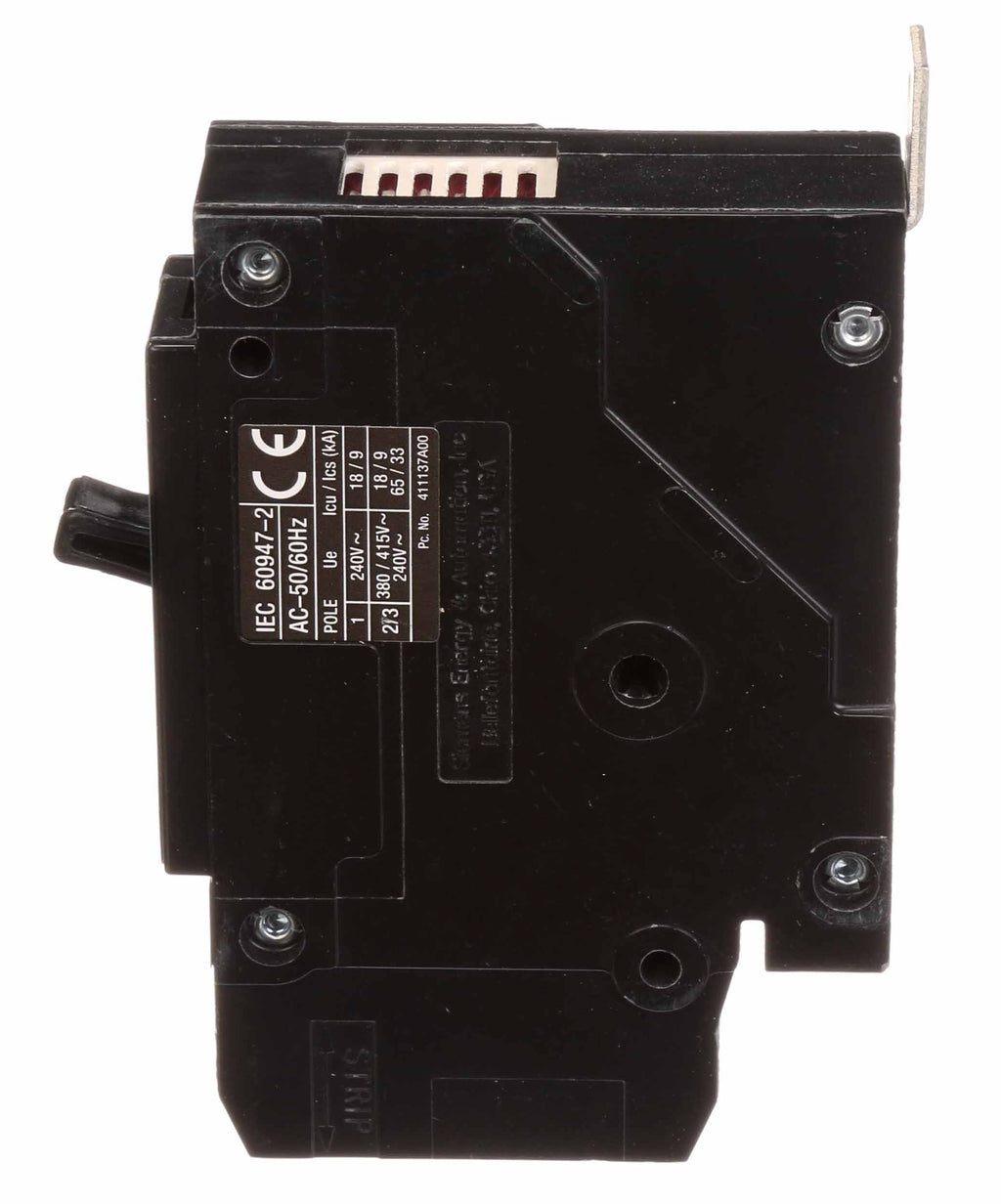

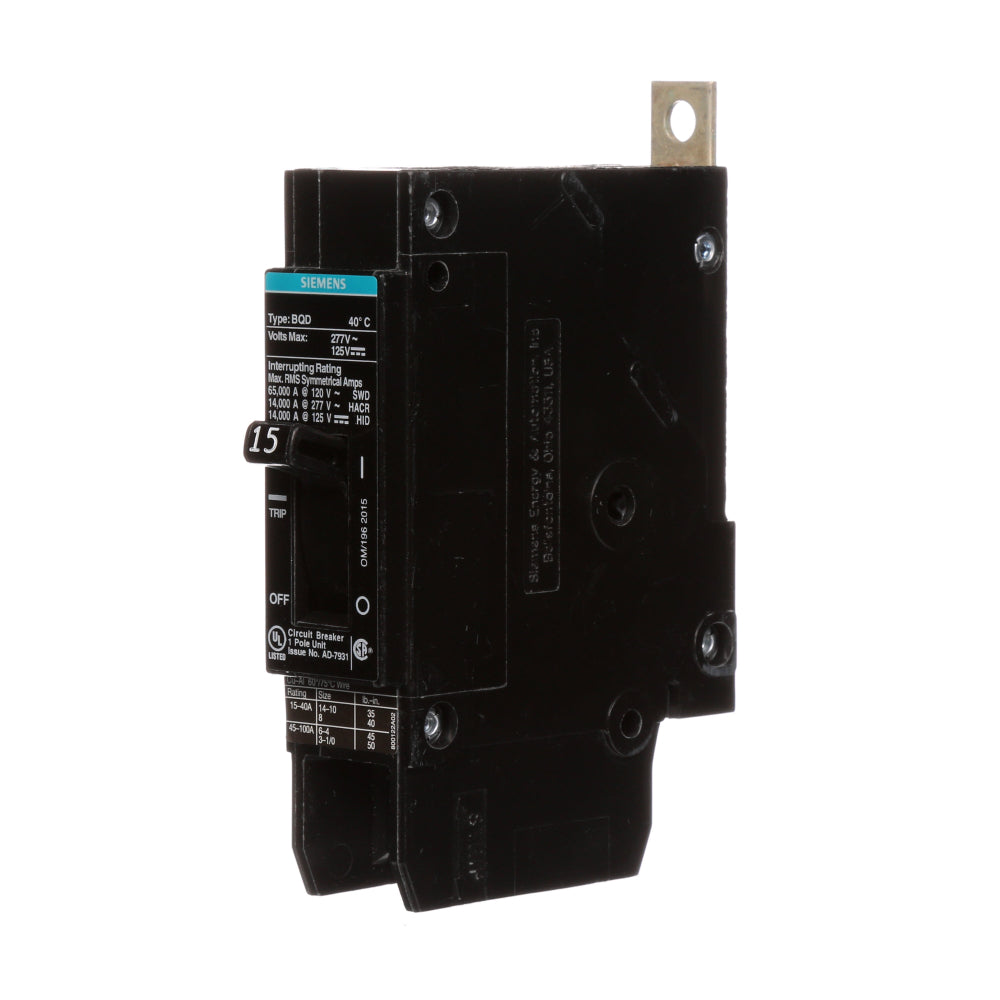

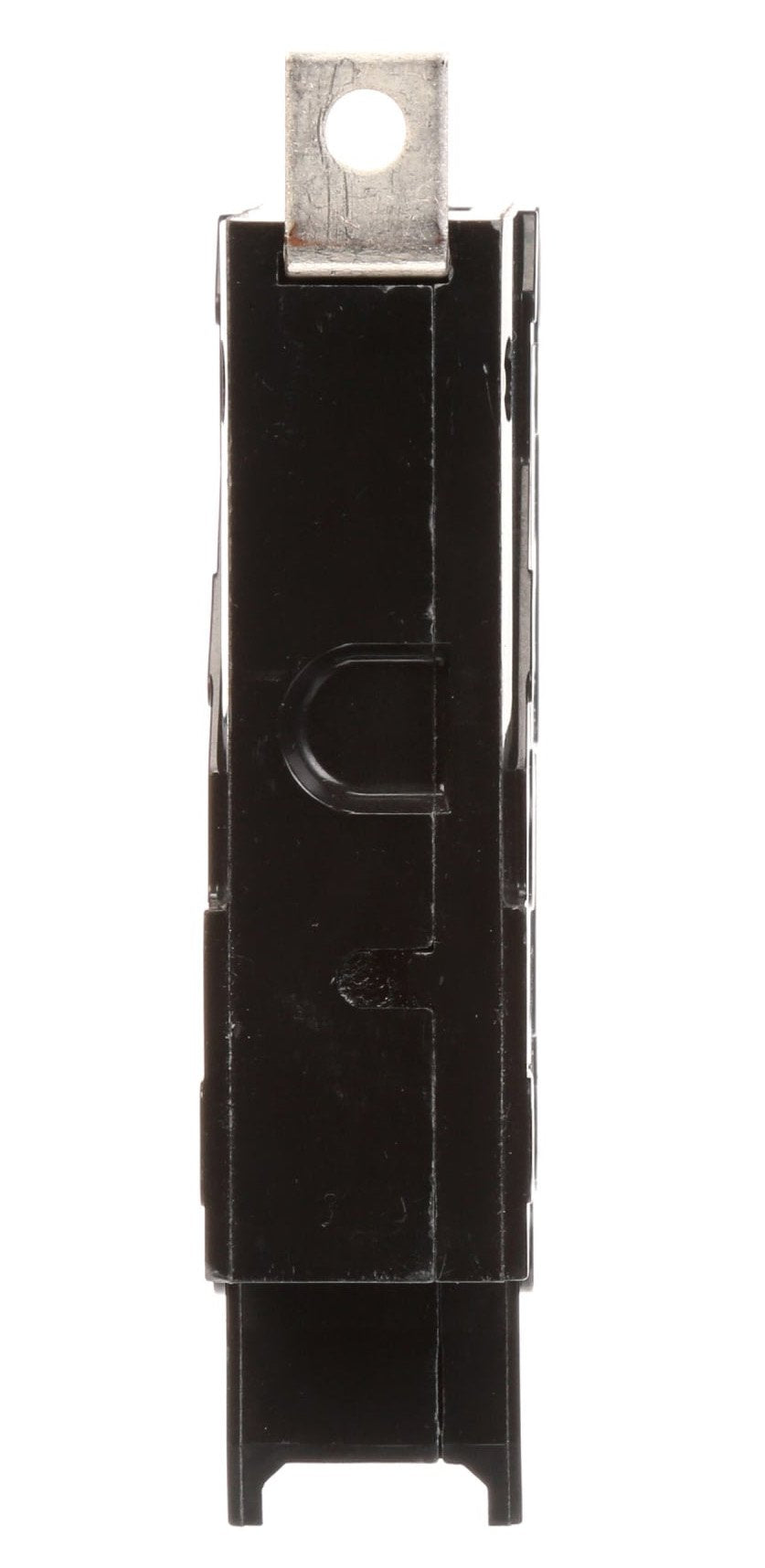

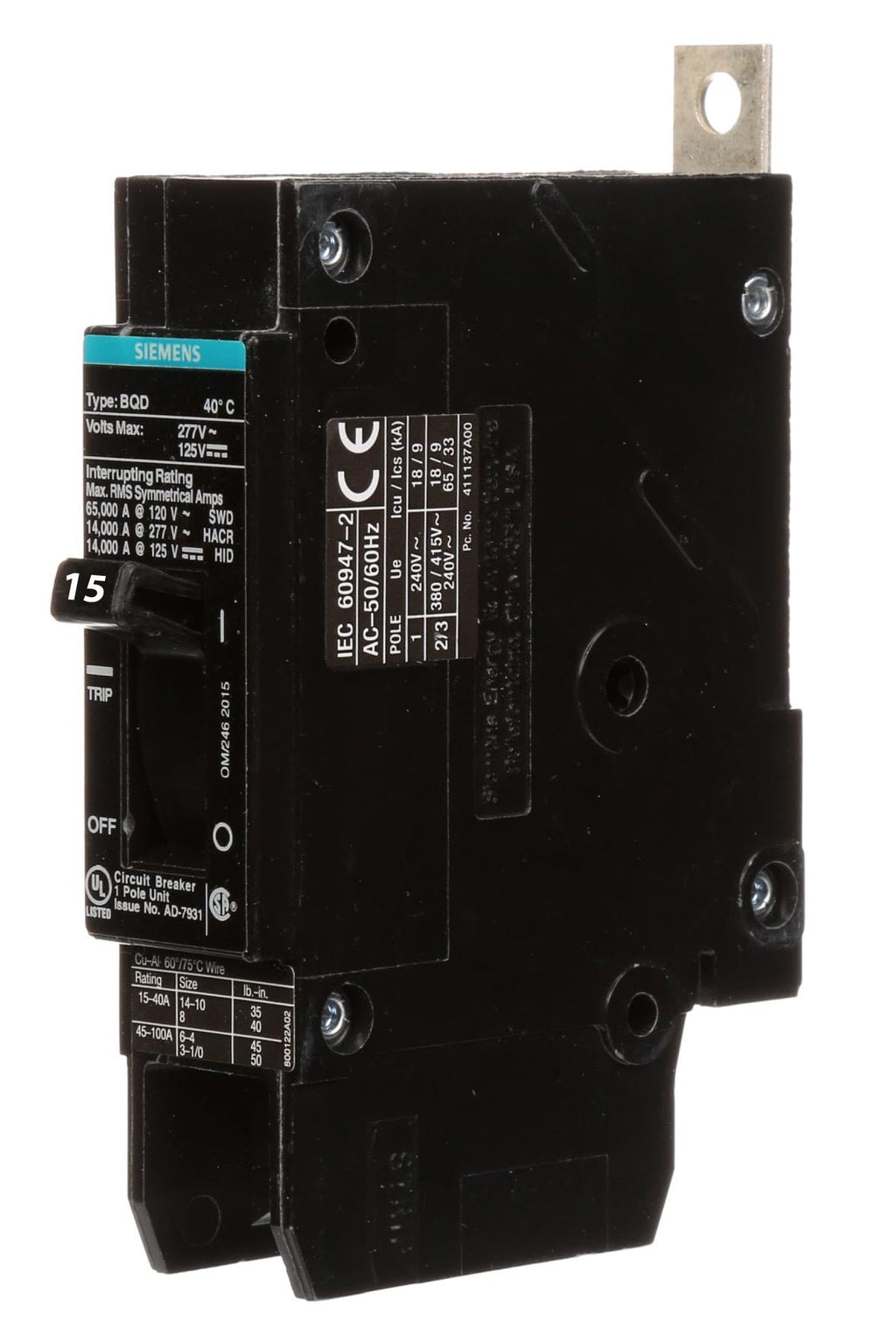

BQD115 - Siemens 1-pole molded case circuit breaker rated at 15A and 277VAC.
This Siemens BQD frame thermal-magnetic circuit breaker provides reliable overcurrent protection for panelboard applications. It features bolt-on mounting with busbar line side and lug load side terminations, suitable for construction and general use.
Key Specifications
- Amperage: 15A
- Voltage: 277VAC
- Poles: 1
- Frame: BQD
- Trip Type: Thermal Magnetic
- Interrupt Rating: 14kA @ 277VAC
- Mounting: Bolt-on / Panel Mount
- Line Term: Busbar
- Load Term: Lug
- Certifications: UL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BQD115
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 277
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/BQD
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277083
- GTIN : 00783643277083
- Country of Origin : Mexico
- Dimensions : 1 in x 4.49 in x 4.49 in
- Weight : 0.595
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 490
- Certification : CSA-C22.2,UL 490
