BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker

Save $520.38
SKU: BDA36110-New
Condition: New
Price:
$1,010.62 $1,531.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

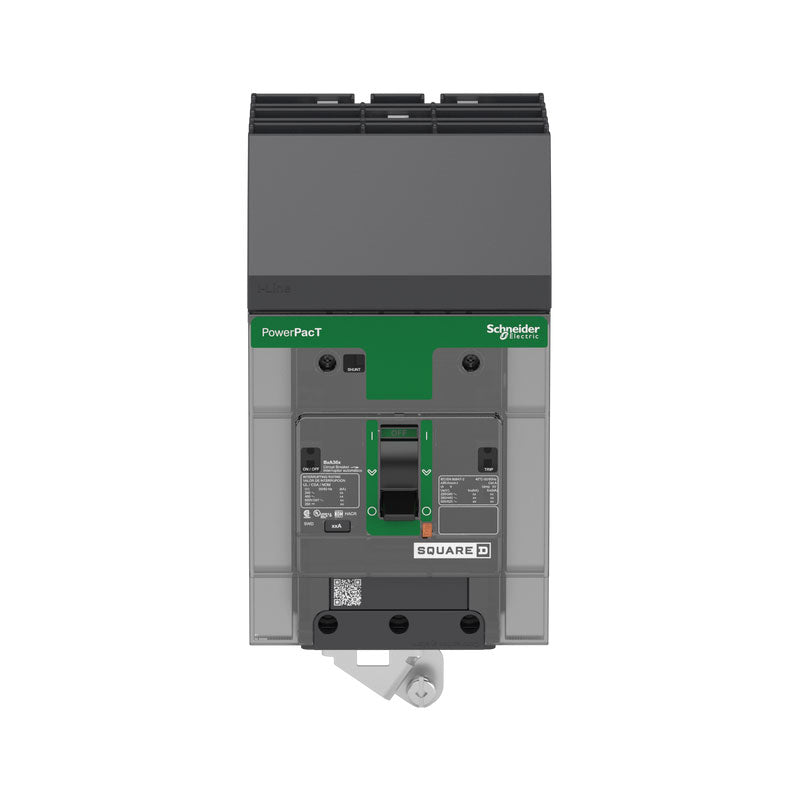

BDA36110 - Square D/ Schneider Electric I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply

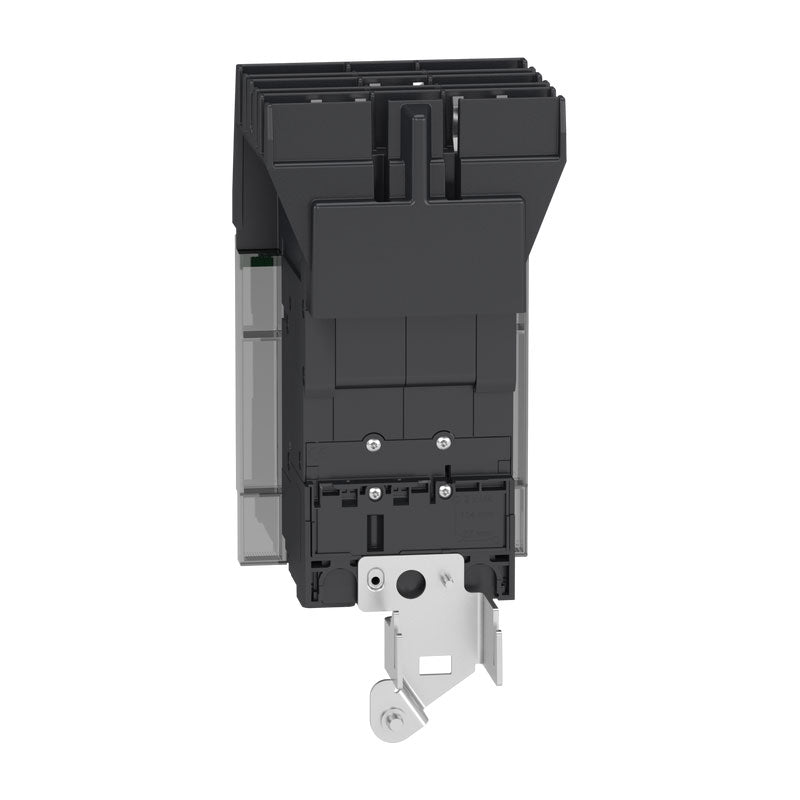

BDA36110 - Square D I-Line 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

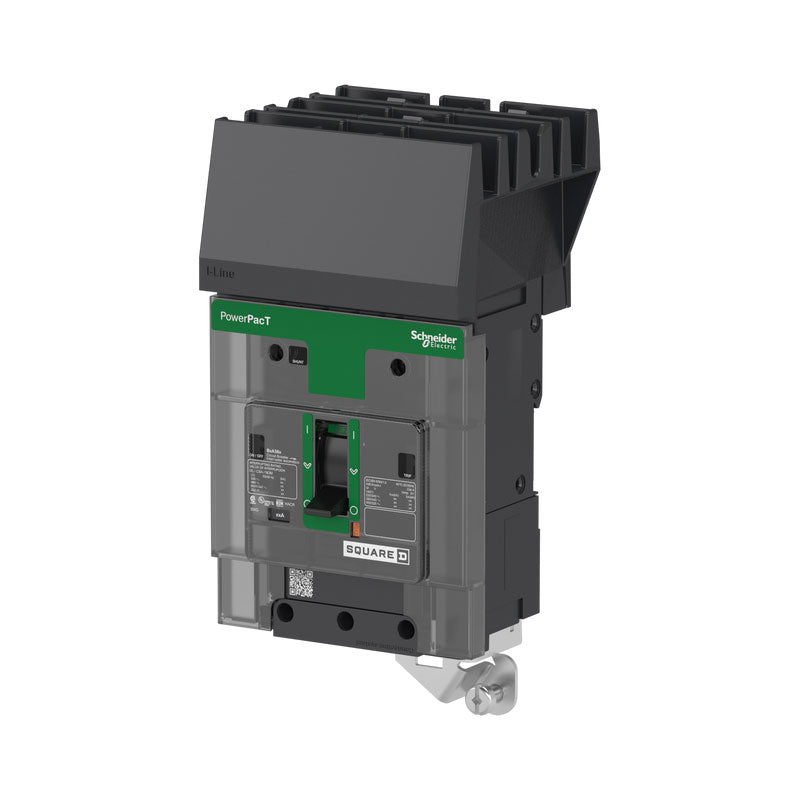

BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply

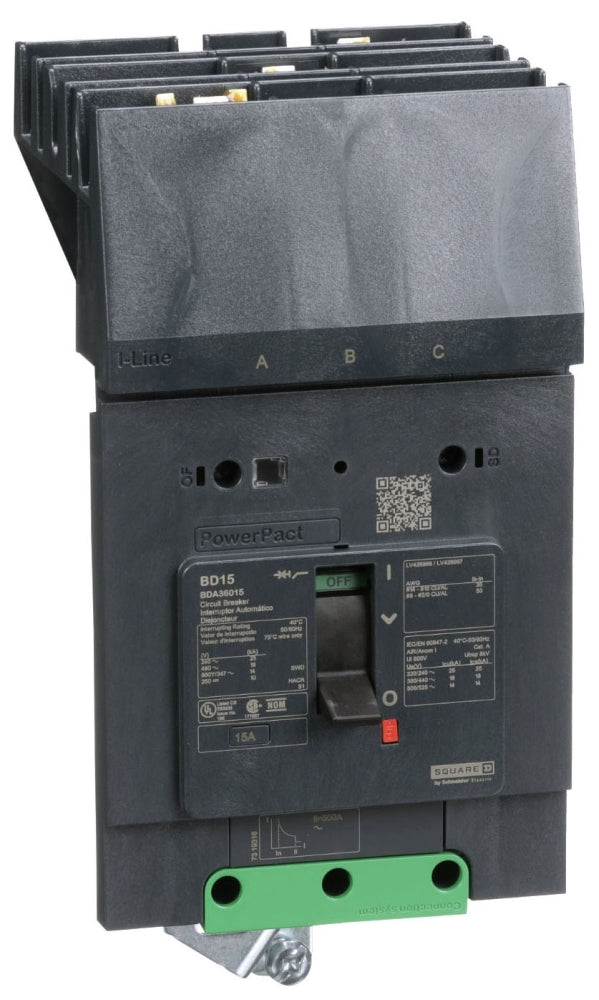

BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply

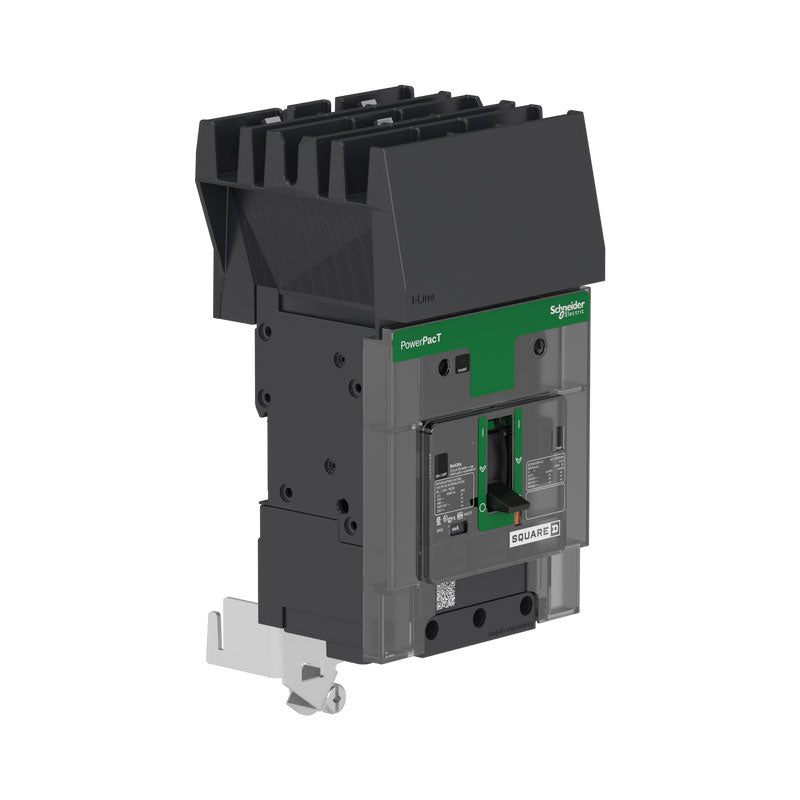

BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA36110 - Square D/ Schneider Electric I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
BDA36110 - Square D I-Line 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
BDA36110 - Square D PowerPact B 110A 3 Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply

Description

BDA36110


BDA36110 is a Square D PowerPact B series 3 pole molded case circuit breaker designed for I-Line panelboards and switchboards. This breaker features a 110A thermal magnetic trip unit and is rated for 600Y/347VAC with a 14kA interrupt rating at 480V. It is suitable for industrial and commercial power distribution applications requiring reliable protection and easy installation. This Square D BDA36110 circuit breaker is built with a robust thermal magnetic trip mechanism for overload and short-circuit protection. It is designed for I-Line ABC mounting and is compatible with PowerPact B frame panelboards. The breaker is certified to meet industry standards and is RoHS compliant, mercury free, and halogen free.
  • Part Number: BDA36110
  • Manufacturer: Square D
  • Series/Frame: PowerPact B
  • Amperage: 110A
  • Poles: 3
  • Voltage: 600Y/347VAC
  • Interrupt Rating: 14kA at 480V
  • Mounting Type: I-Line ABC
  • Trip Unit: Thermal Magnetic
  • Standards: RoHS, Mercury Free, Halogen Free
  • Color: Gray
  • Dimensions: 5.39" H x 3.19" W x 3.5" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA36110
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 110
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901051893
  • GTIN : 00785901051893
  • Country of Origin : United States

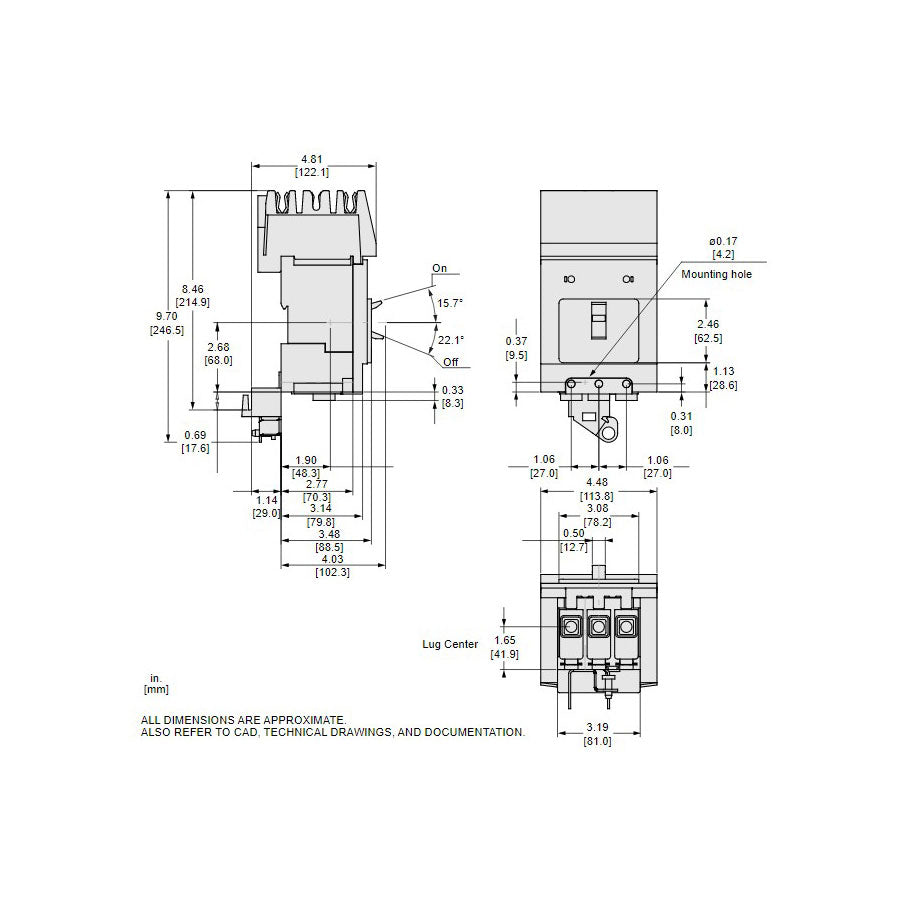

  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.201
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489, NEMA AB1, EN/IEC 60947-2, NMX J-266, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
