BDA36015 - Schneider Electric 15A 3-Pole 600Y/347VAC PowerPact B Circuit Breaker I-Line 14kA

BDA36015

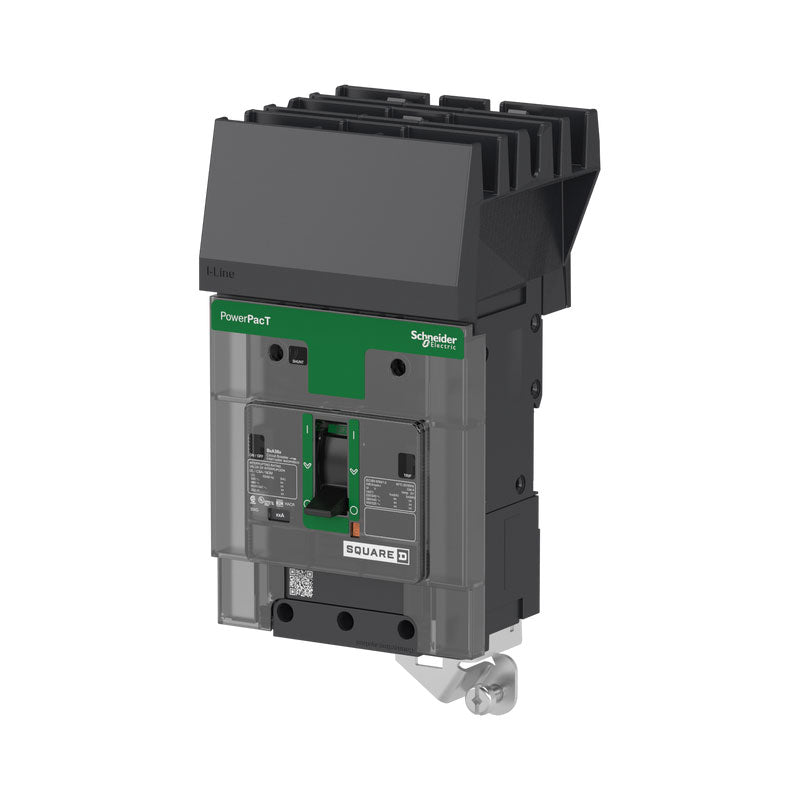

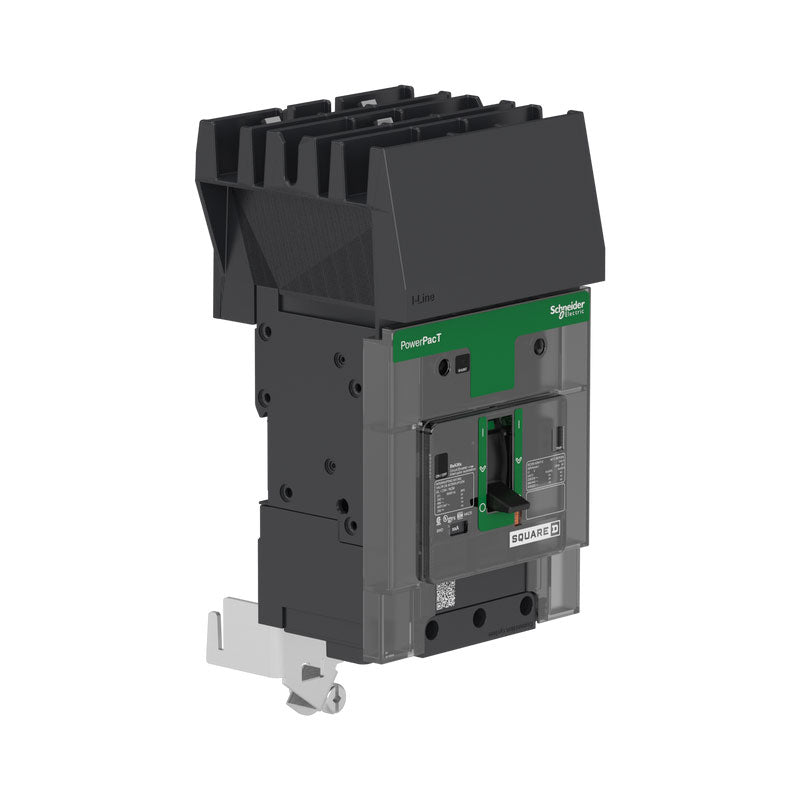

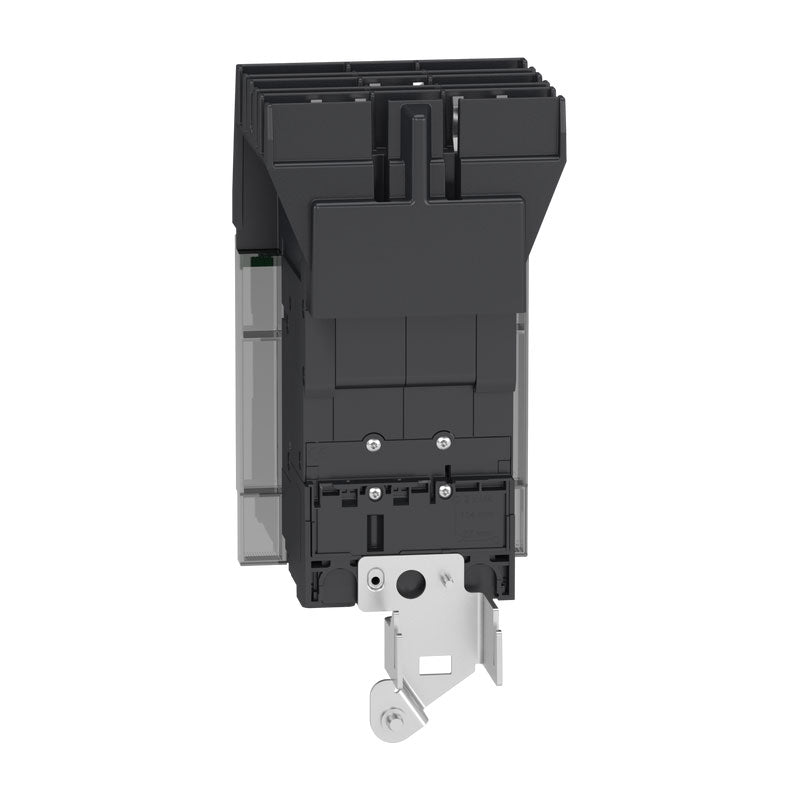

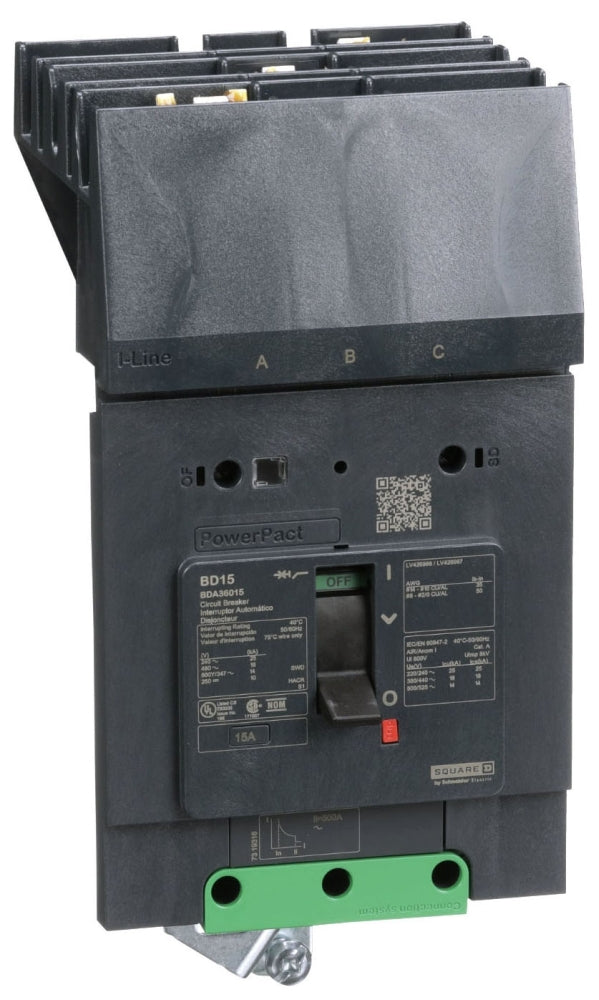

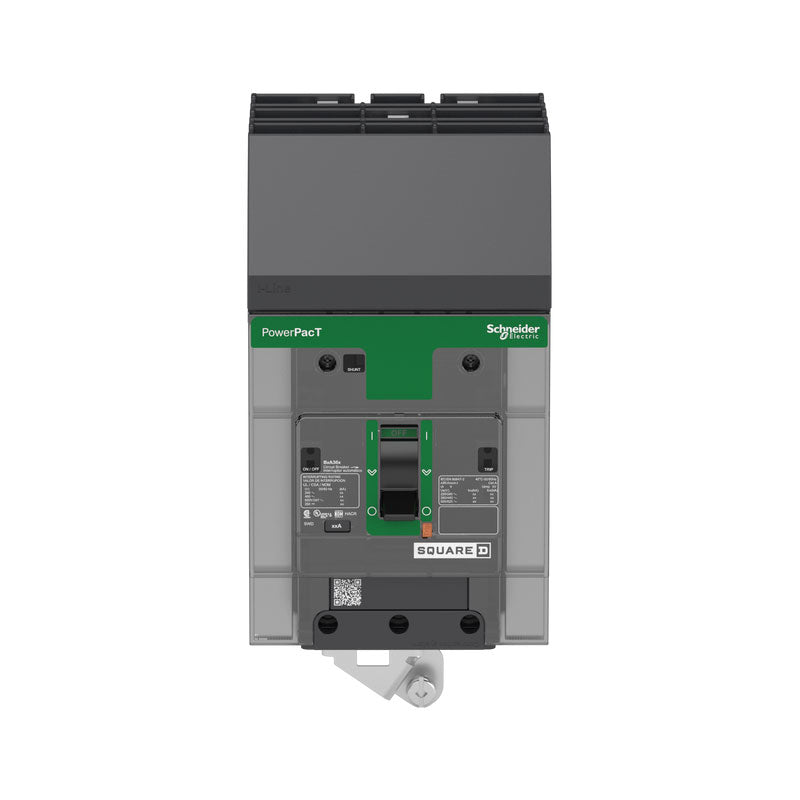

BDA36015 is a Schneider Electric PowerPact B circuit breaker designed for reliable electrical protection in commercial and industrial applications.This 3-pole circuit breaker features a 15 amp continuous current rating at 80% and operates at 600Y/347VAC with a breaking capacity of 14kA. It uses advanced thermal-magnetic trip technology and dual-break rotating contacts to enhance safety and durability. The breaker mounts on an I-Line panel with mechanical lugs on the load side for easy installation. It is certified to UL, CSA, NOM, IEC, CCC standards and is RoHS and REACH compliant, ensuring eco-friendly and safe operation.

Key Specifications
• Amperage: 15A continuous current rating at 80%
• Voltage Rating: 600Y/347VAC
• Poles: 3-Pole configuration
• Interrupt Rating: 14kA at 600Y/347VAC
• Mounting Type: I-Line plug-in style with mechanical lugs
• Trip Unit: Thermal-Magnetic
• Series/Frame: PowerPact B
• Certifications: UL, CSA, NOM, IEC, CCC, CE marked
• Environmental Compliance: RoHS, REACH, mercury and halogen free
• Durability: Rated for 20,000 mechanical and 10,000 electrical cycles
• Ingress Protection: IP40, IK07 impact resistance
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BDA36015
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901011583
• GTIN : 03606481152480
• Country of Origin : Mexico

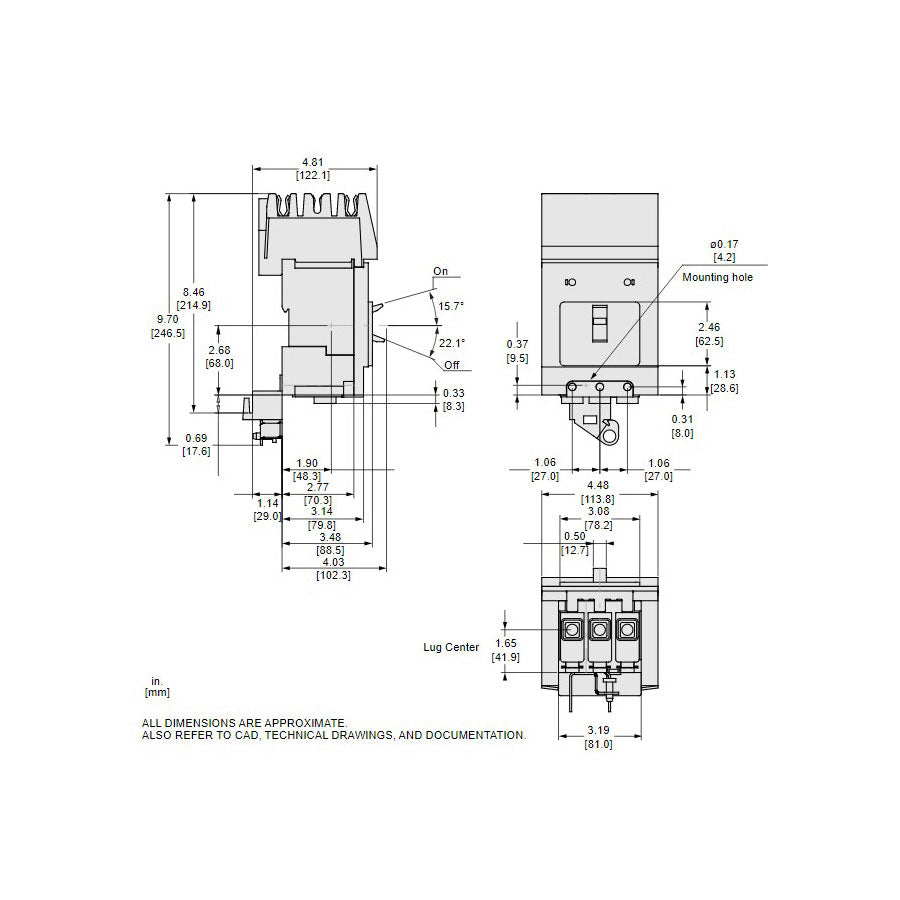

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.21 lb
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, GB 14048.2, UL 489, CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
