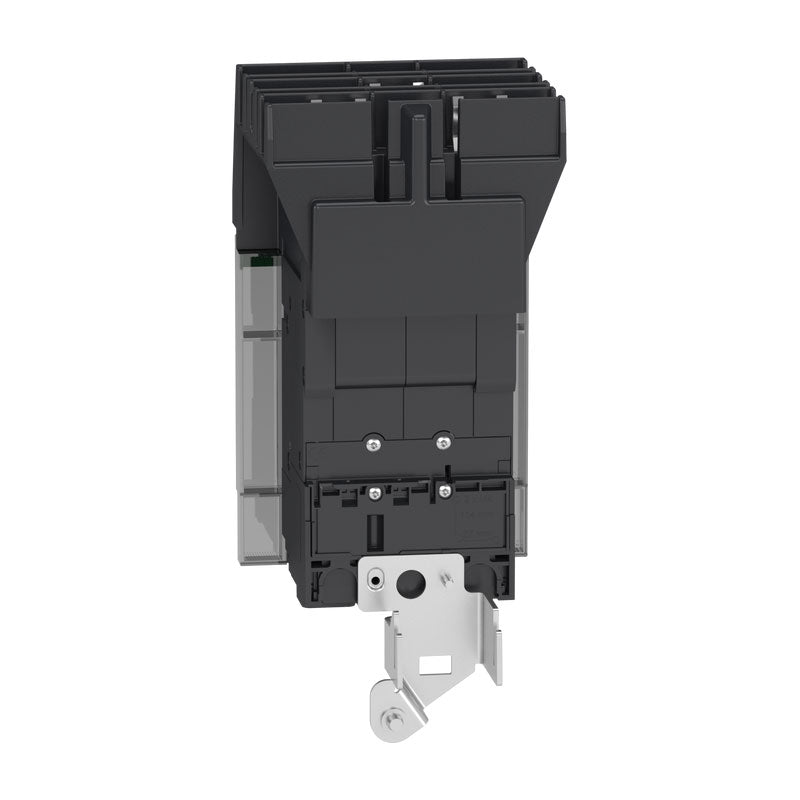

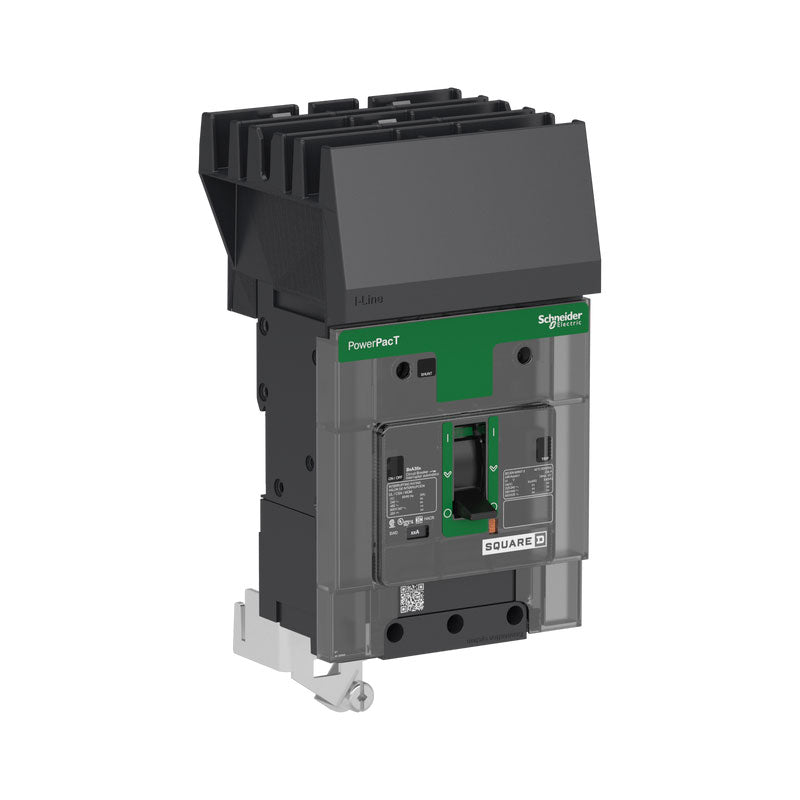

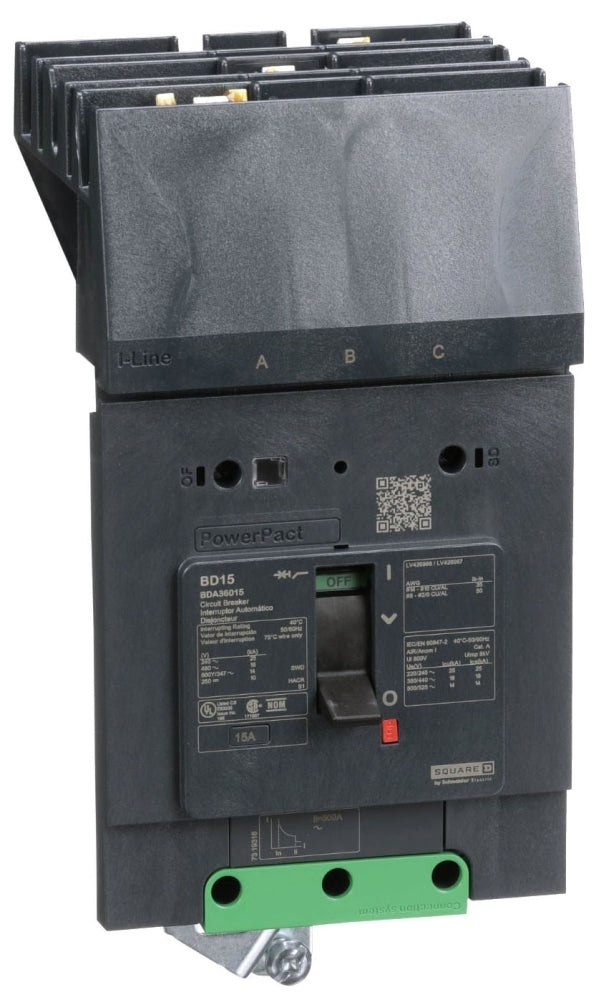

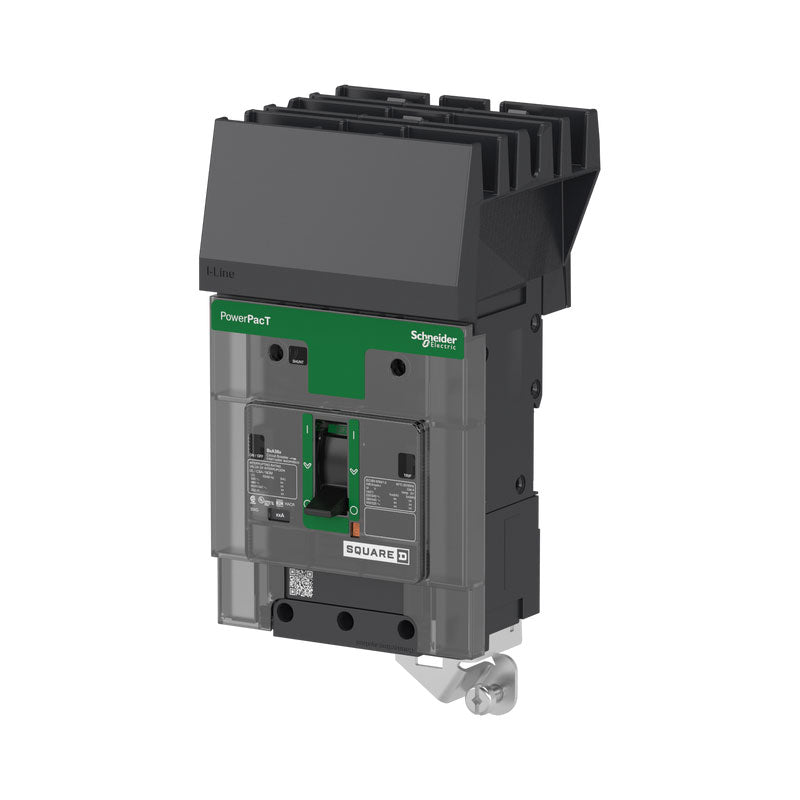

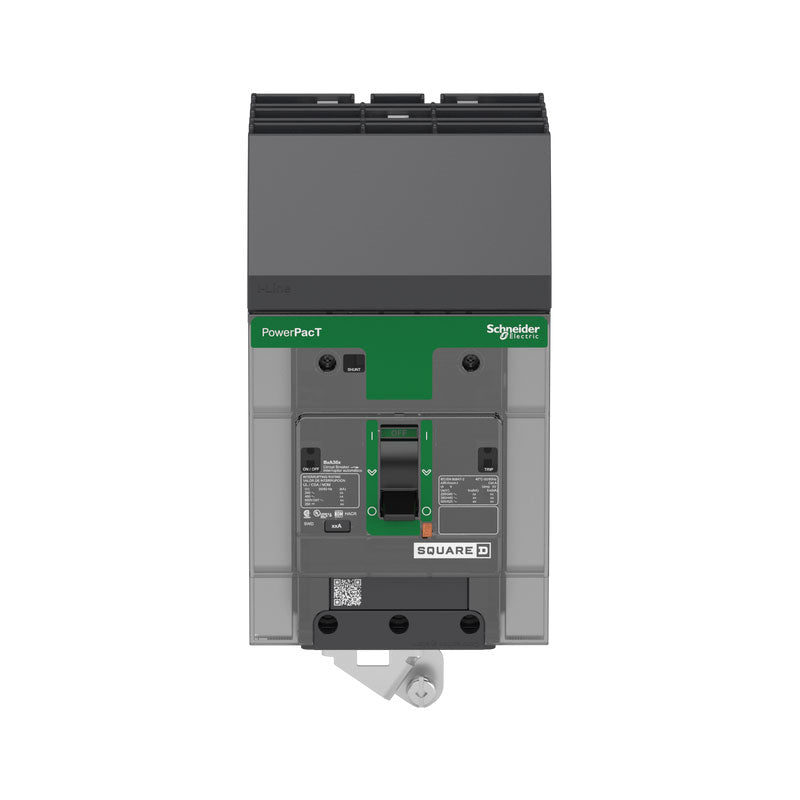

BDA36025 - Schneider Electric 25A 3 Pole 600V I-Line Circuit Breaker 18kA@480V Thermal Magnetic Toggle

BDA36025

BDA36025 is a Schneider Electric 25 amp, 3 pole circuit breaker designed for 600 Volt applications with I-Line mounting.This thermal magnetic circuit breaker features a toggle actuator and an interrupt rating of 18kA at 480V AC. It is UL 489 listed and suitable for use in power distribution systems requiring reliable overcurrent protection. The breaker supports 80% continuous current rating and is compatible with I-Line panelboards.

Key Specifications
• Amperage: 25A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 18kA at 480V AC
• Breaker Type: Thermal Magnetic
• Actuator Type: Toggle
• Continuous Current Rating: 80%
• Certifications: UL 489 Listed
• Series/Frame: PowerPact B
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BDA36025
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901036302
• GTIN : 03606481152541
• Country of Origin : Mexico

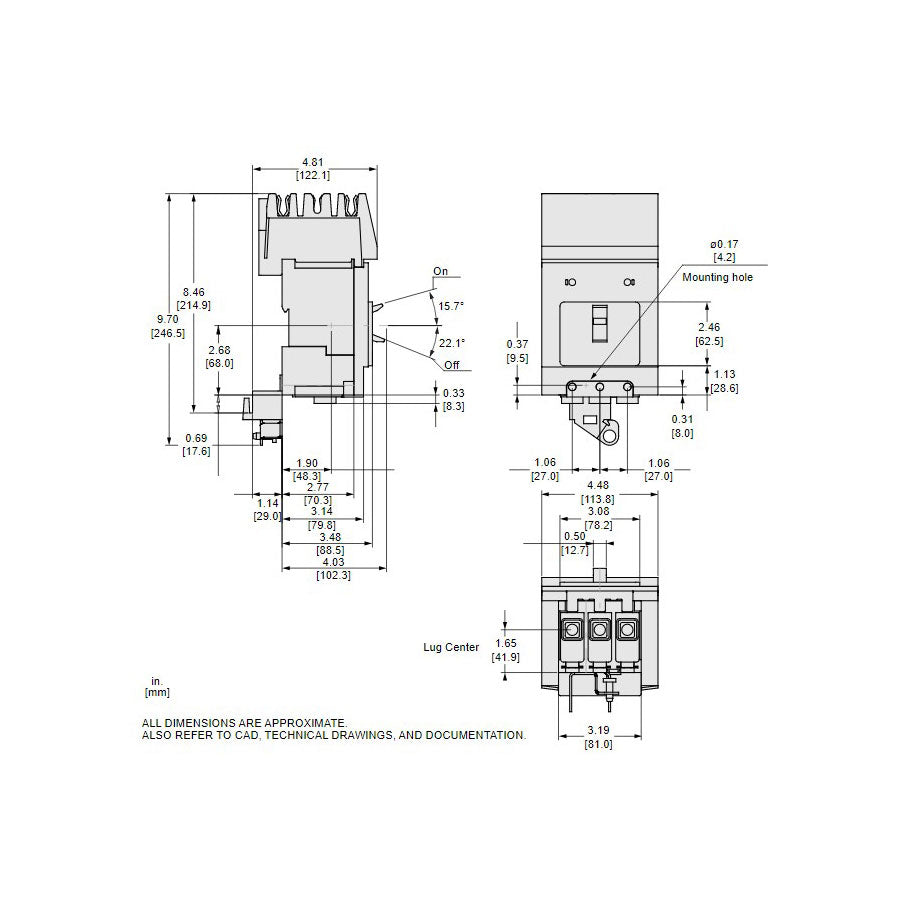

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.12
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
