Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BDA36035

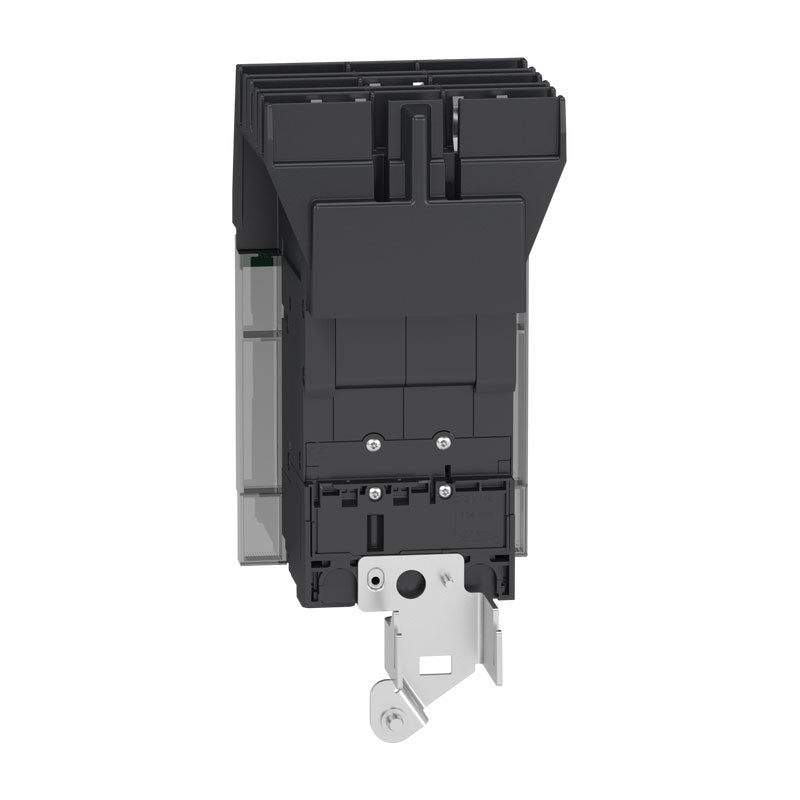

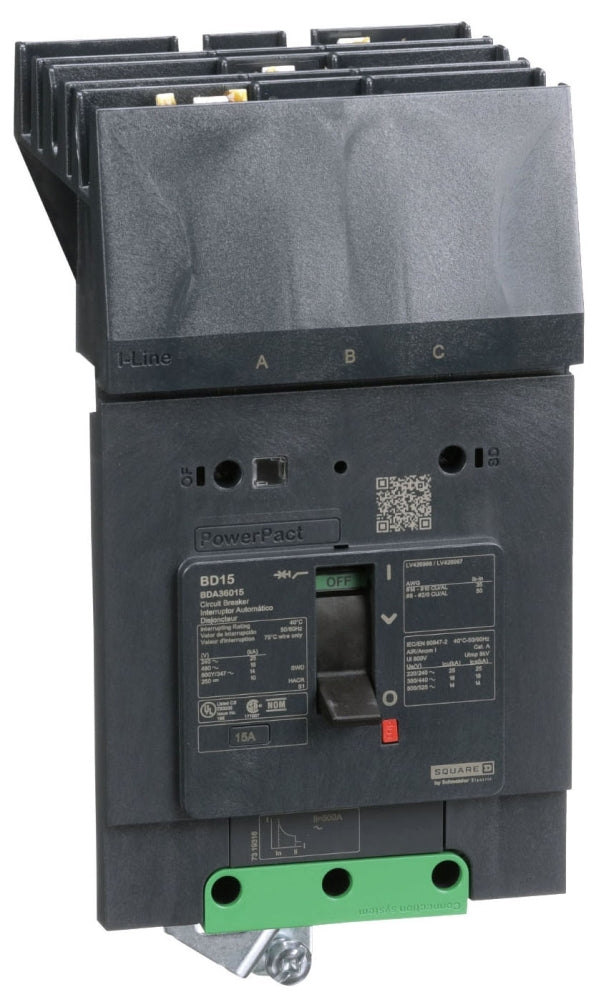

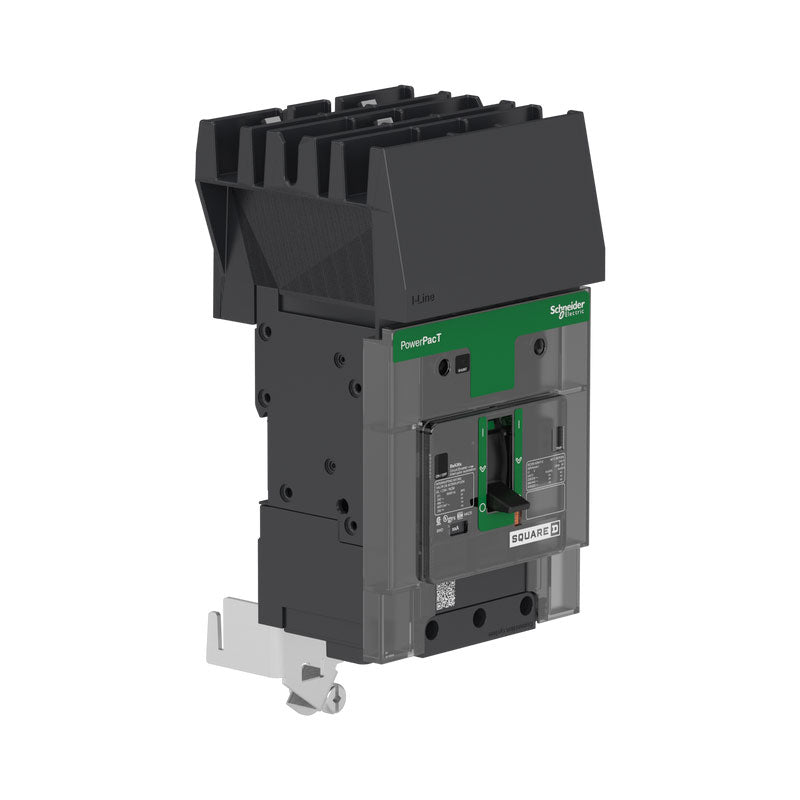

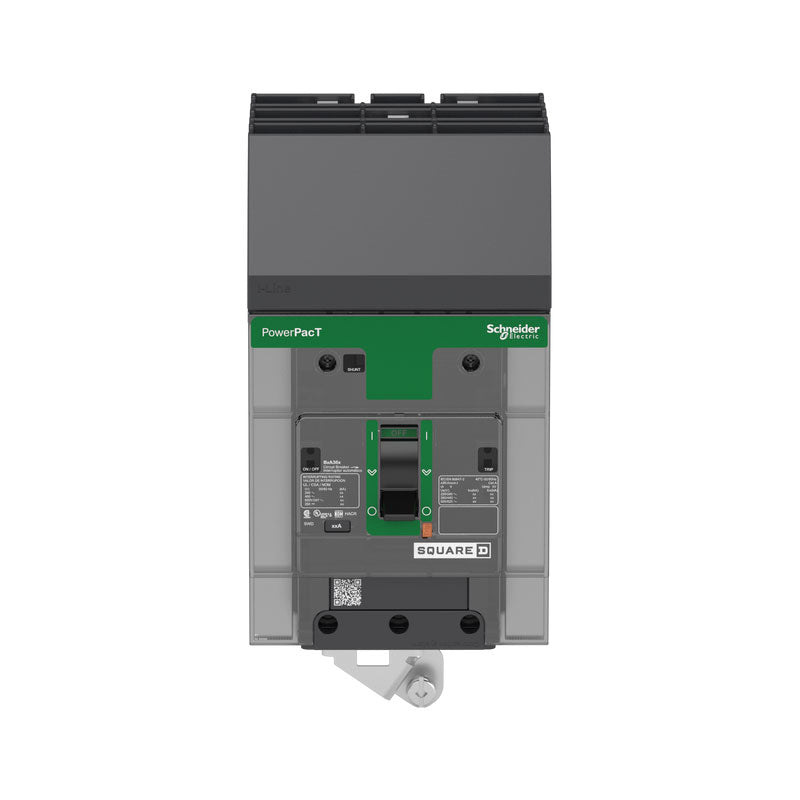

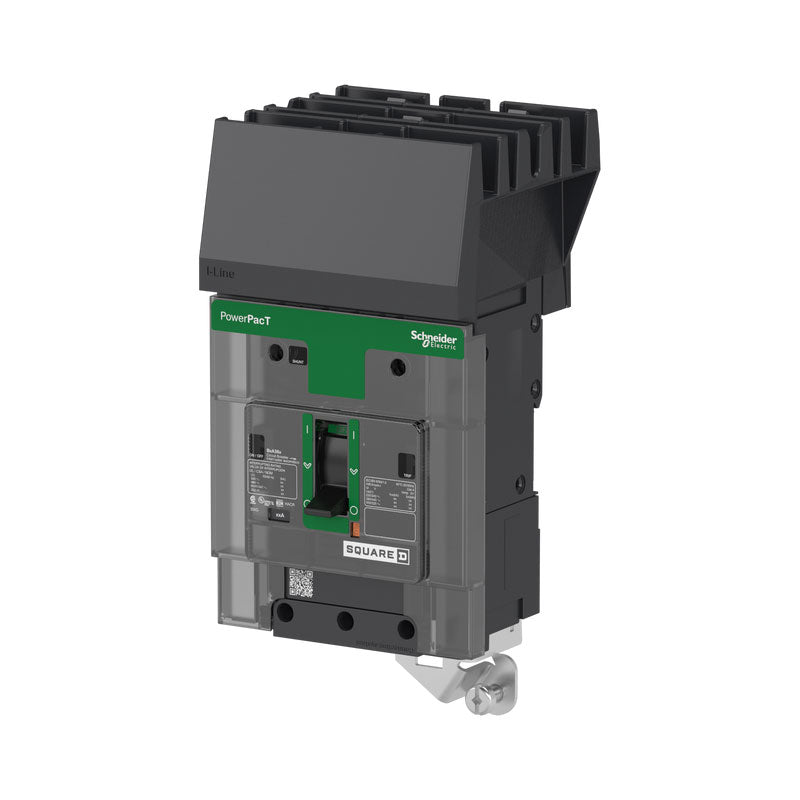

BDA36035 is a 3 pole thermal magnetic molded case circuit breaker from Square D designed for 35 amps and 600Y/347VAC applications.This circuit breaker features a BDA frame with I-Line style plug-in connection, providing reliable long time and instantaneous trip protection. It has an interrupting rating of 25kA at 277/408VAC and supports line and load lug terminal connections for wire gauges AWG 14 to AWG 2/0 aluminum or copper. Certified to multiple standards including UL, CSA, CE, and RoHS, it is suitable for commercial and industrial power distribution.
- Key Specifications
- Amperage: 35A
- Voltage: 600Y/347VAC
- Poles: 3
- Frame Type: BDA
- Connection Type: I-Line Style Plug-In
- Interrupt Rating: 25kA at 277/408VAC
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Terminal Connection: Line and Load Lug
- Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
- Certifications: UL, CSA, CE, RoHS, NEMA, IEC
- Operating Temperature: -13 to 158°F
- Color: Gray
- Part Number: BDA36035
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDA
- Voltage : 600
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
- UPC : 78590105124
- GTIN : 00785901051244
- Country of Origin : Mexico

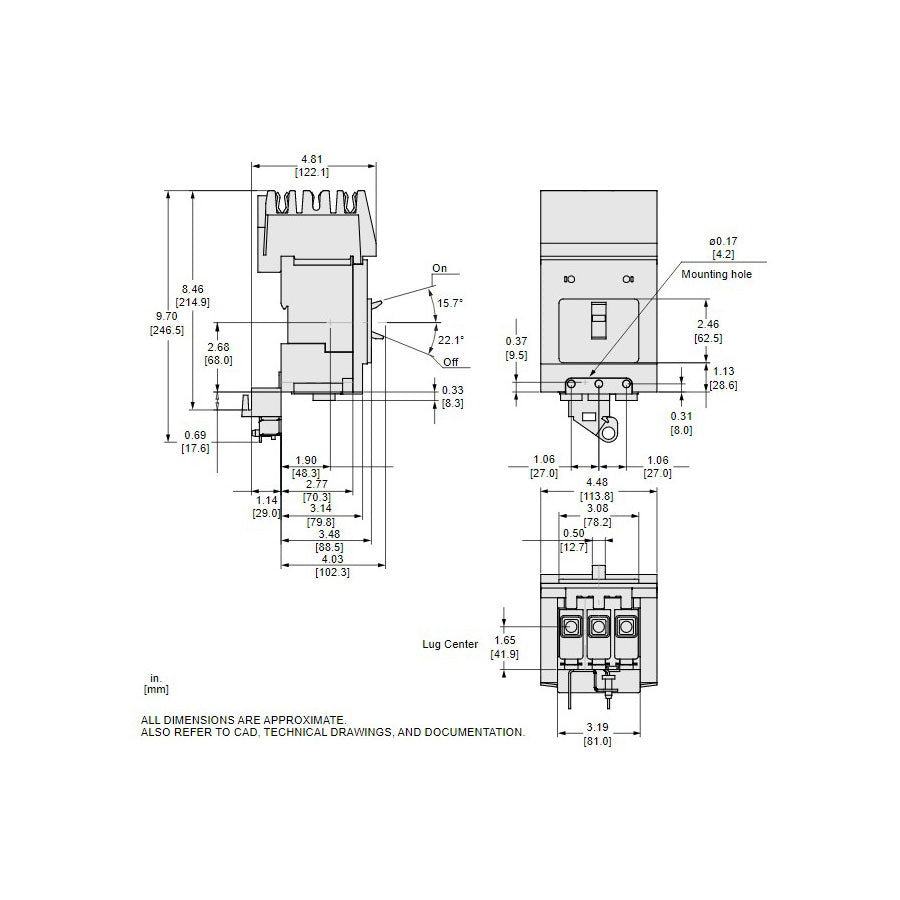

- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 4.12
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5, NMX J-266, GB 14048.2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
