Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B3100HH

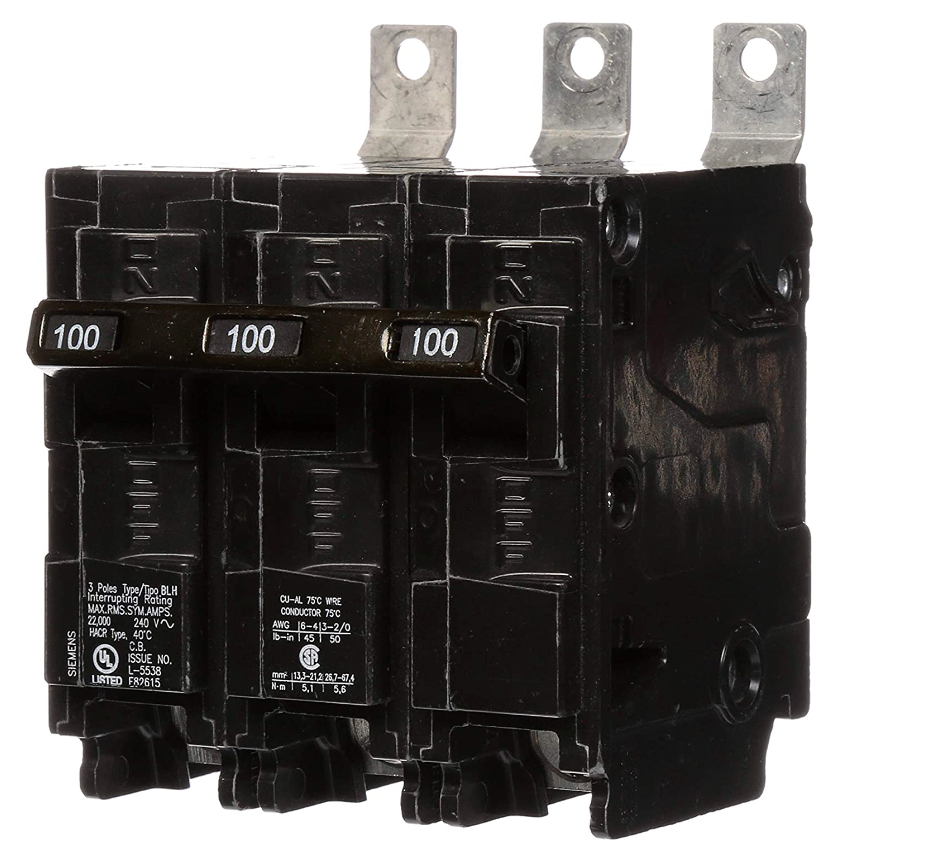

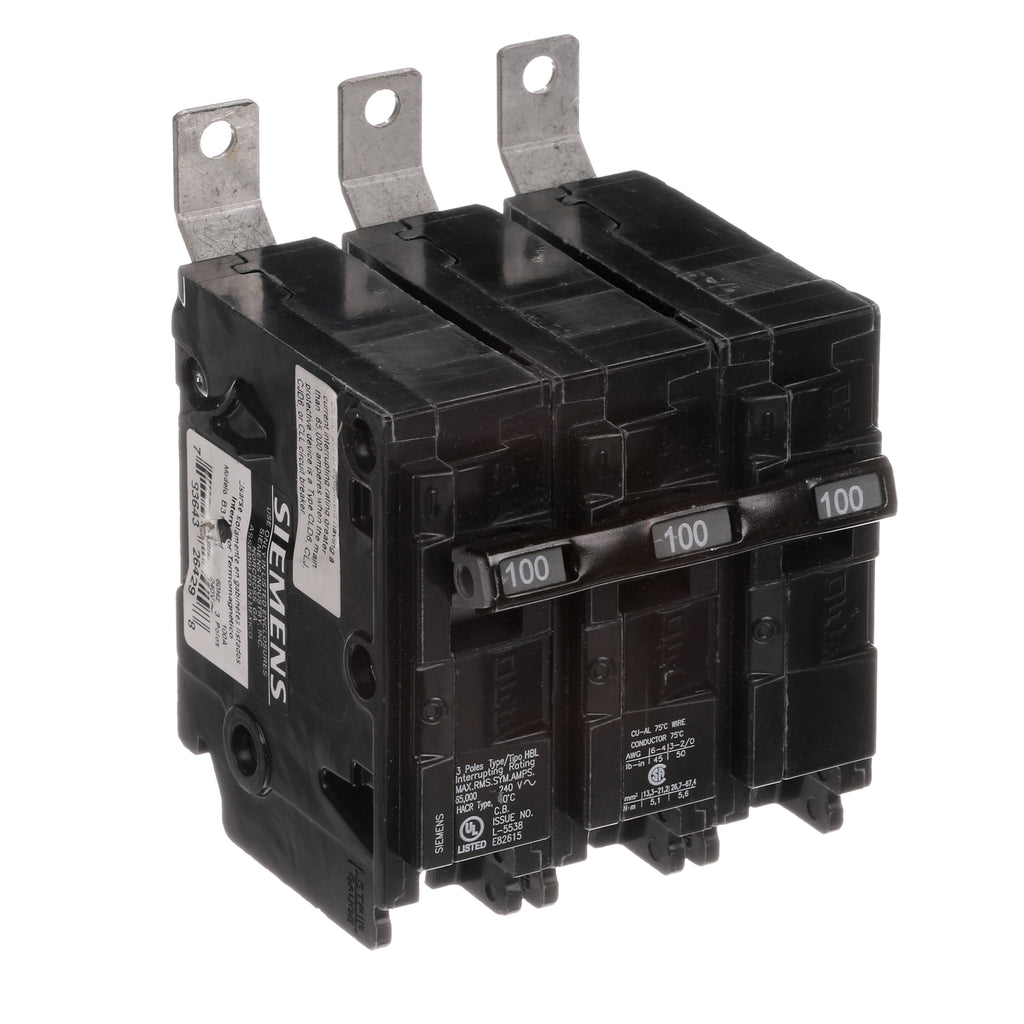

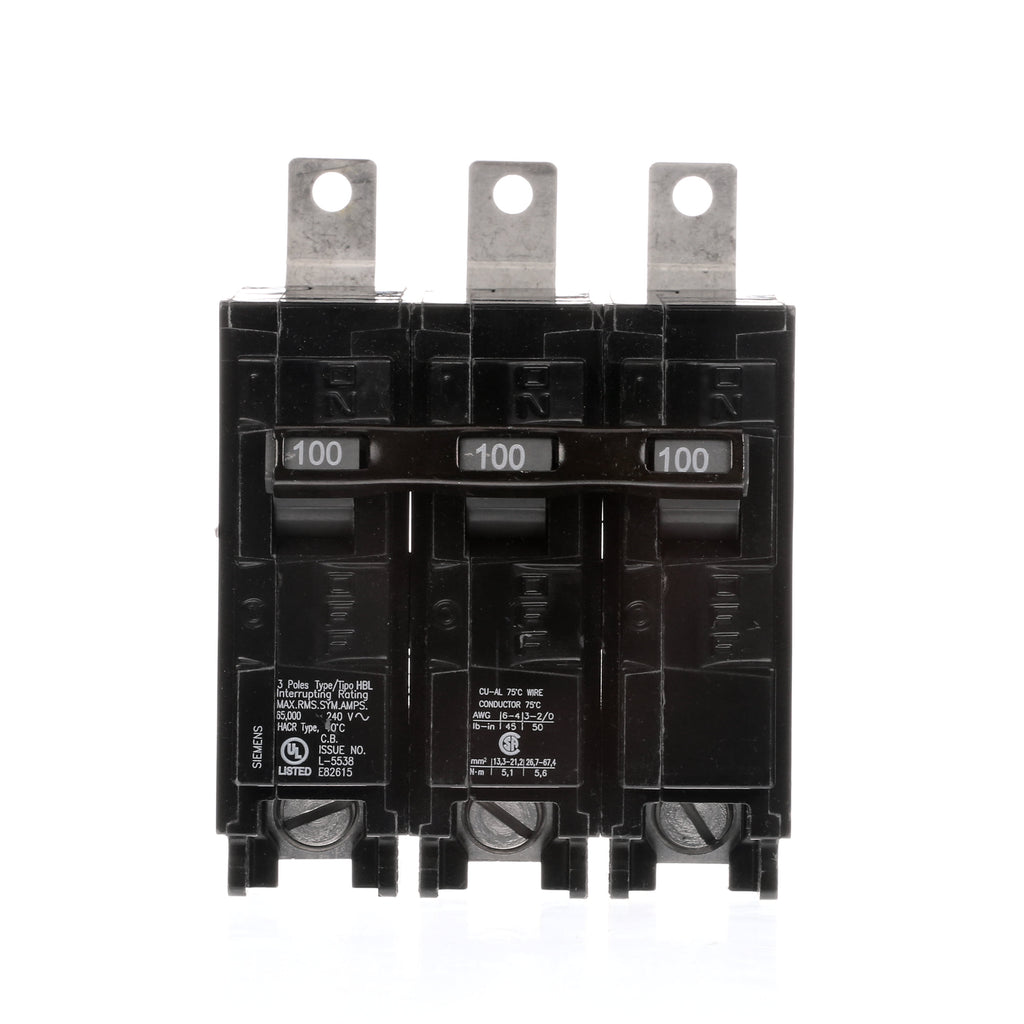

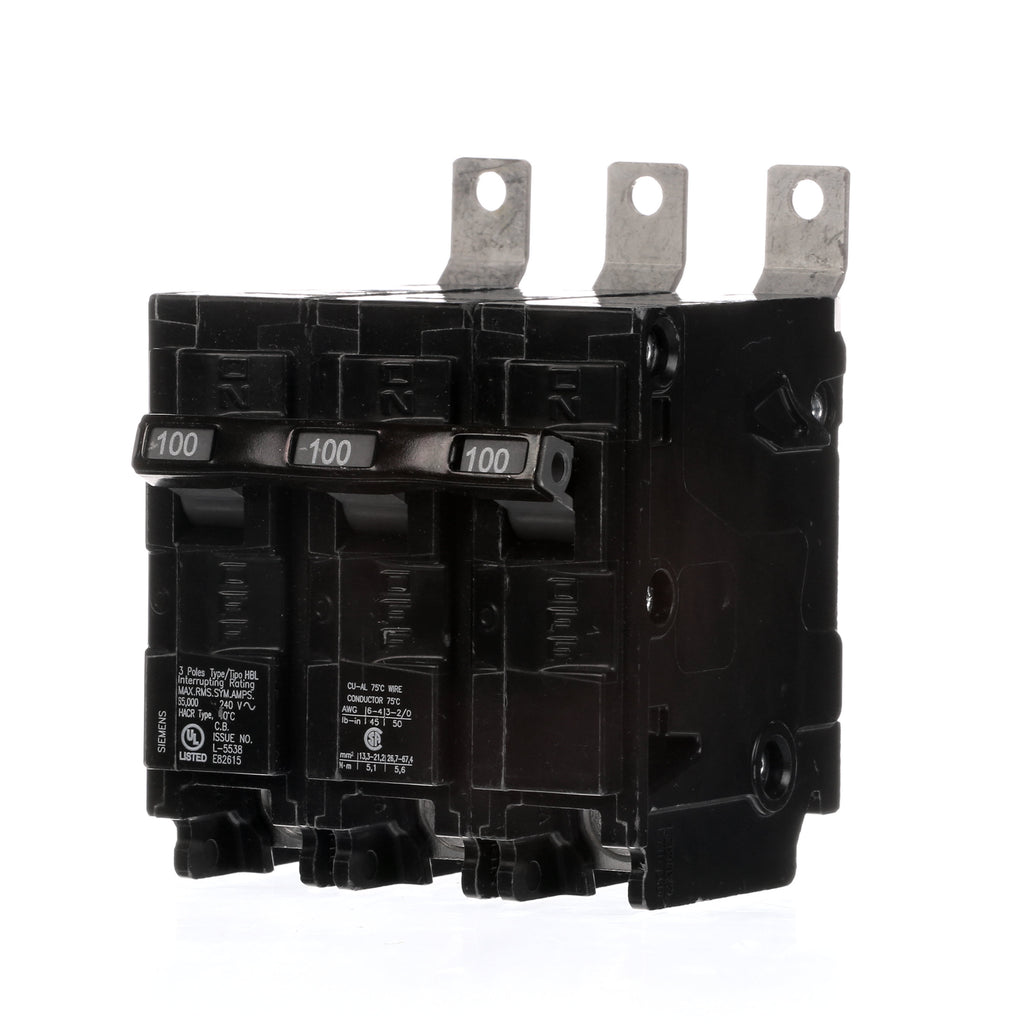

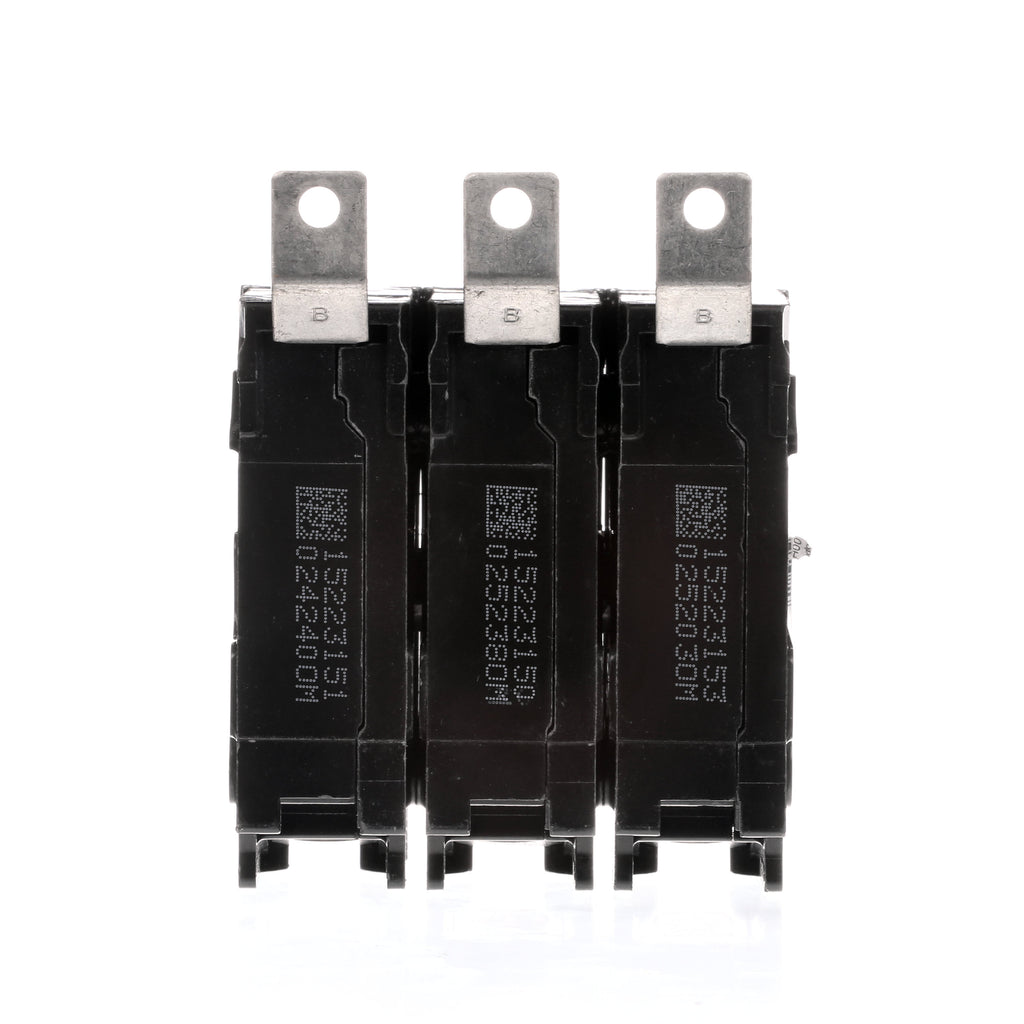

B3100HH - Siemens 3-pole, 100A bolt-on molded case circuit breaker from the HBL frame series.
This thermal-magnetic circuit breaker features a 240V rating, bolt-on mounting, and 65kA interrupt rating at 240VAC, designed for reliable power distribution protection.
Key Specifications
- Part Number: B3100HH
- Manufacturer: Siemens
- Amperage: 100A
- Voltage: 240V
- Poles: 3
- Frame/Series: HBL
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 65kA @ 240VAC
- Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: B3100HH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : HBL
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643264298
- GTIN : 00783643264298
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 2.756 inch
- Weight : 1.058
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
