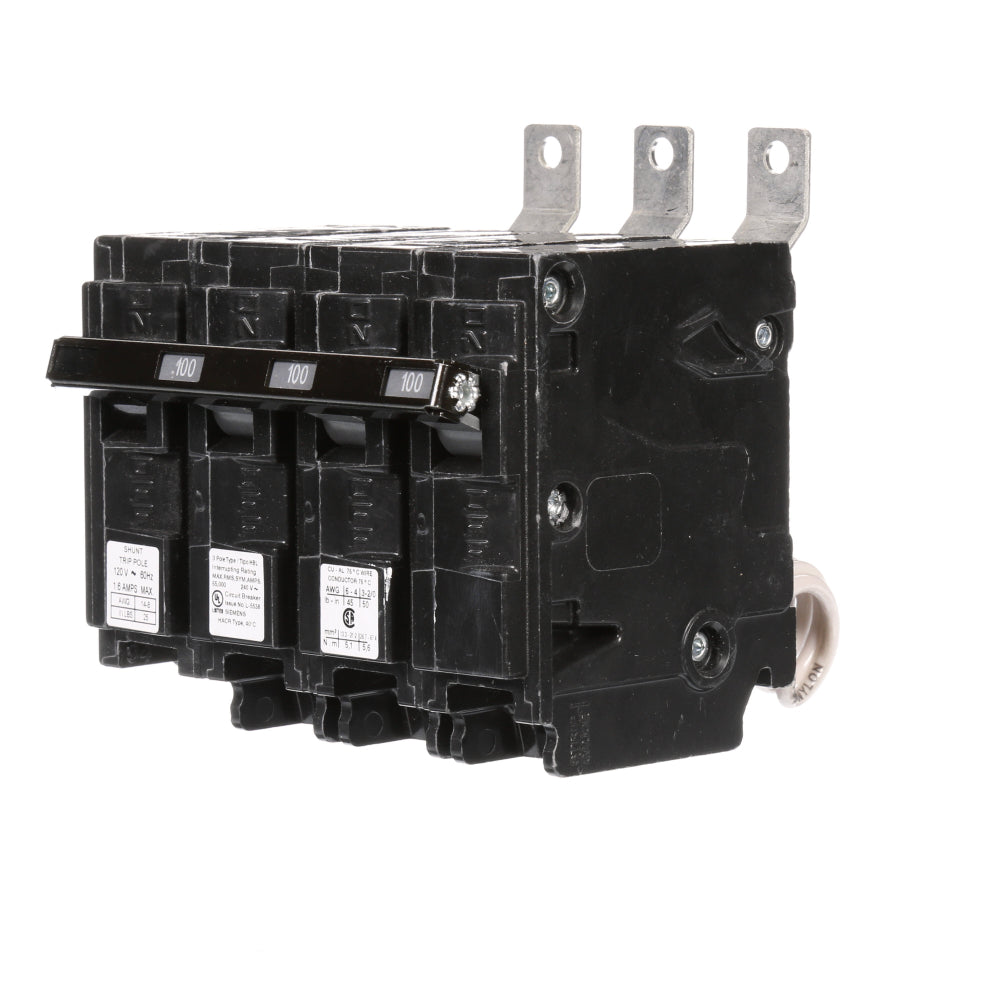

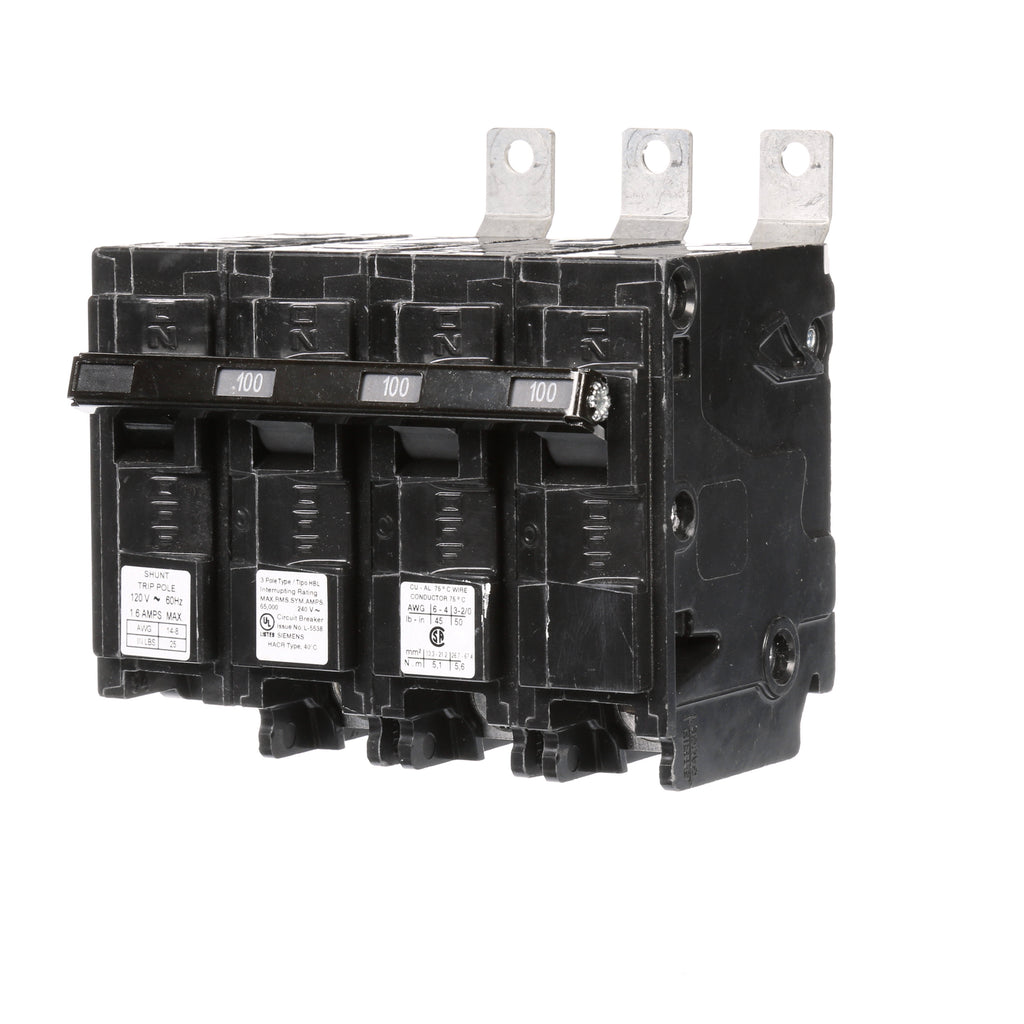

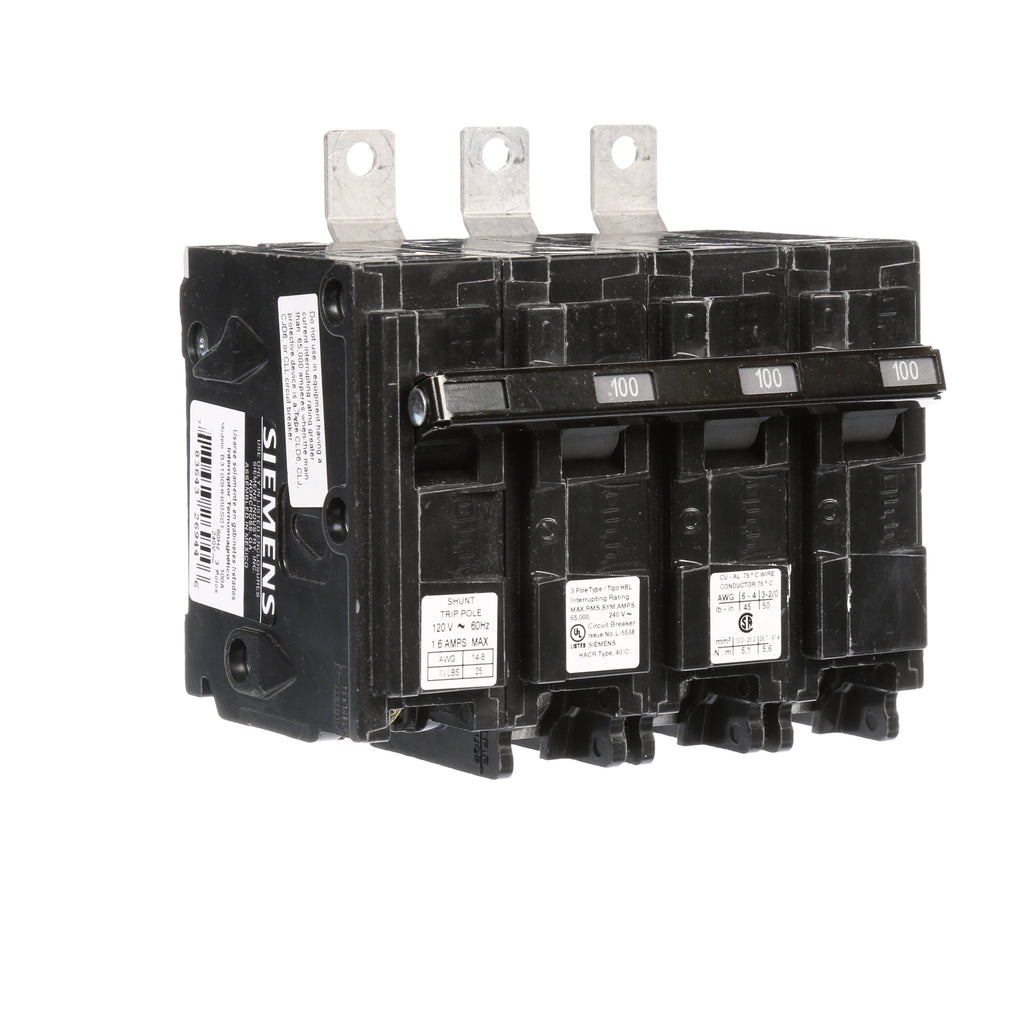

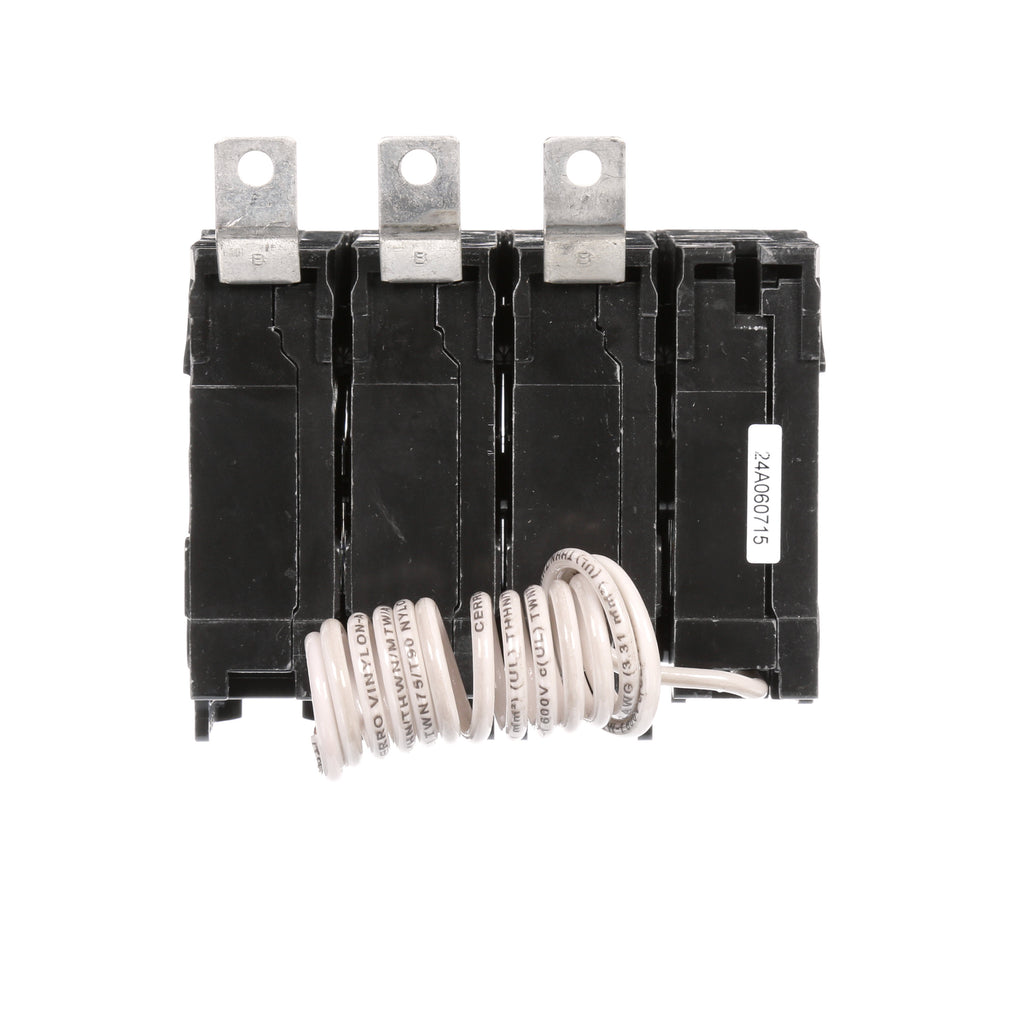

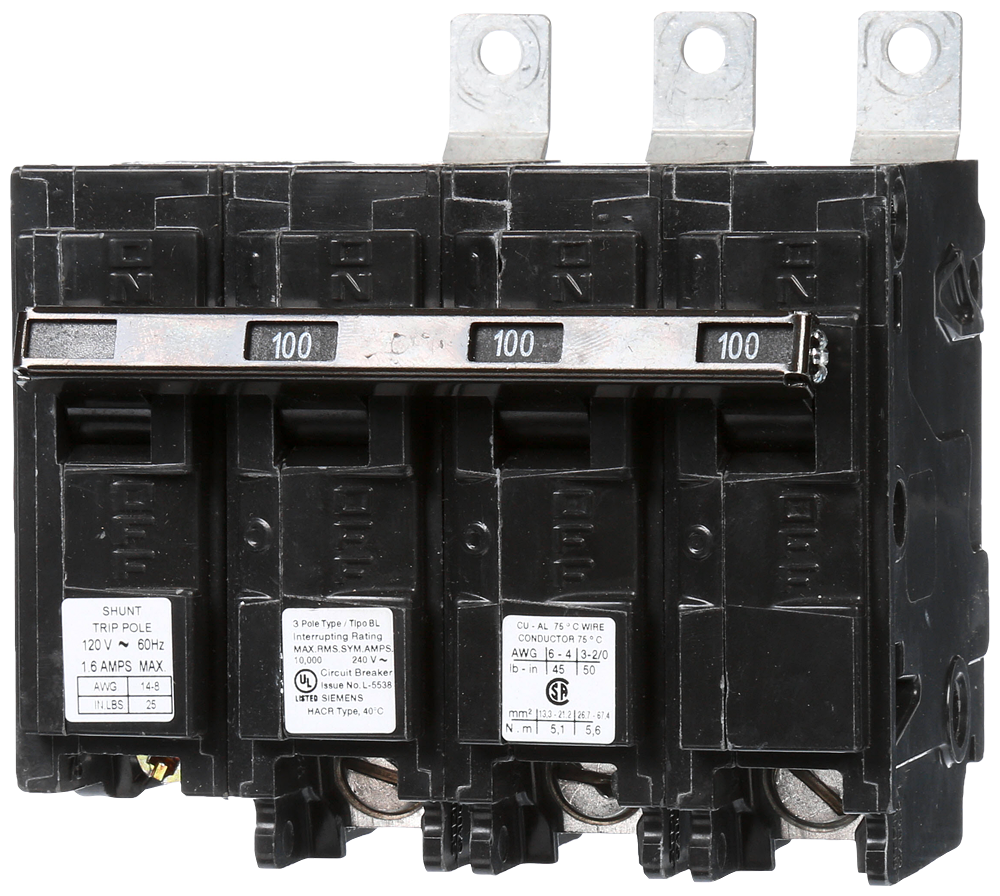

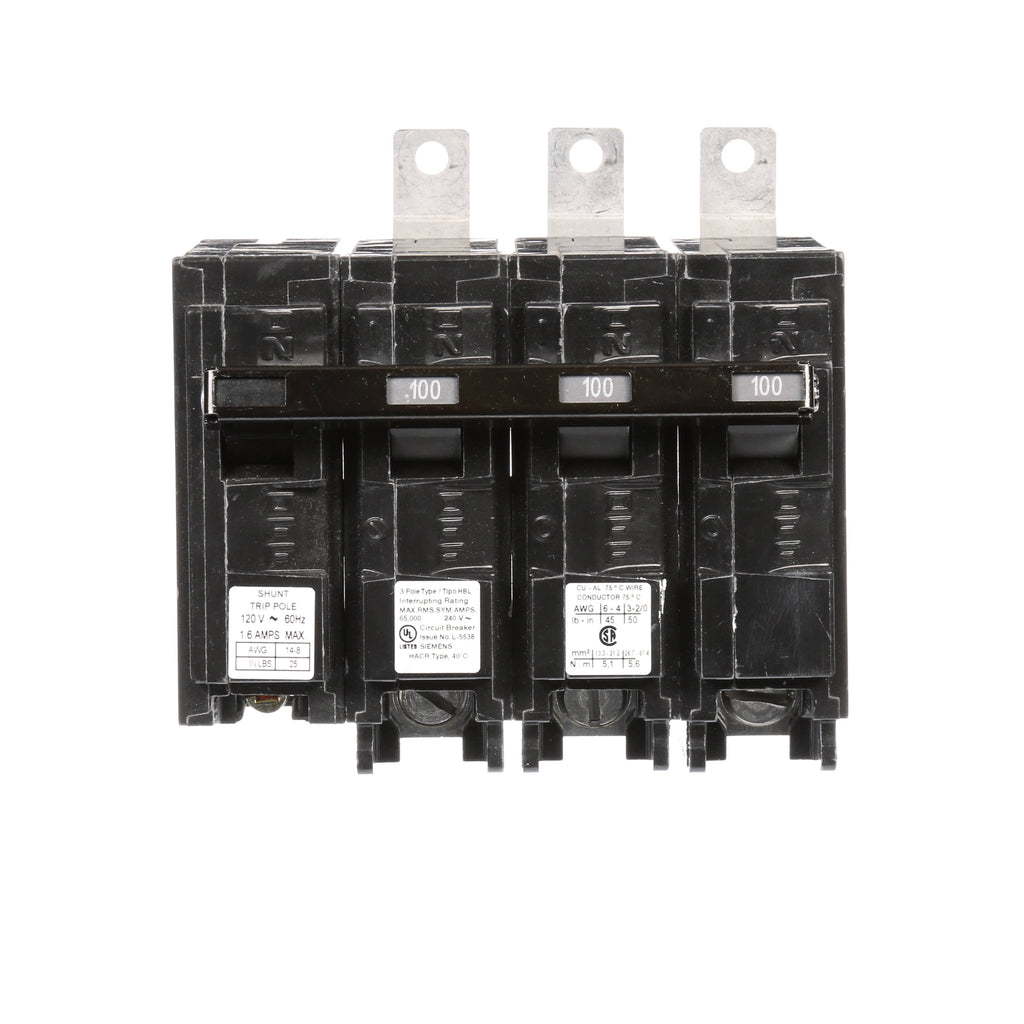

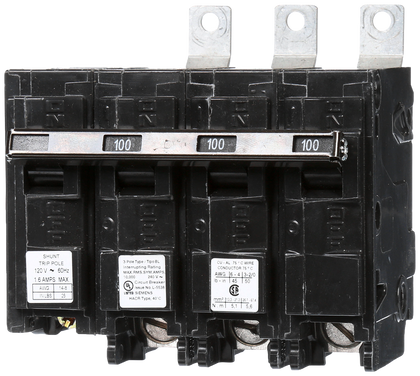

B3100HH00S01 - Siemens 100A 240V 3 Pole B Series Bolt-On Circuit Breaker with 120V Shunt Trip

B3100HH00S01

B3100HH00S01 is a Siemens 100 Amp, 240 Volt AC, 3 Pole B Series bolt-on circuit breaker with a 120V shunt trip feature.This Siemens molded case circuit breaker offers very high interrupting capacity of 65,000 A at 240V AC. It features thermal magnetic trip units with long time and instantaneous trip functions, designed for panelboard mounting in 3-phase systems. The breaker is UL Listed, CSA Certified, HACR Rated, and NOM Certified, ensuring compliance with industry standards.

Key Specifications
• Amperage: 100A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 65,000 A at 240V AC
• Series/Frame: B Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Phase: 3
• Certifications: UL Listed, CSA Certified, HACR Rated, NOM Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 120V shunt trip




Specifications

• Part Number: B3100HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 783643269446
• GTIN : 00783643269446
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
