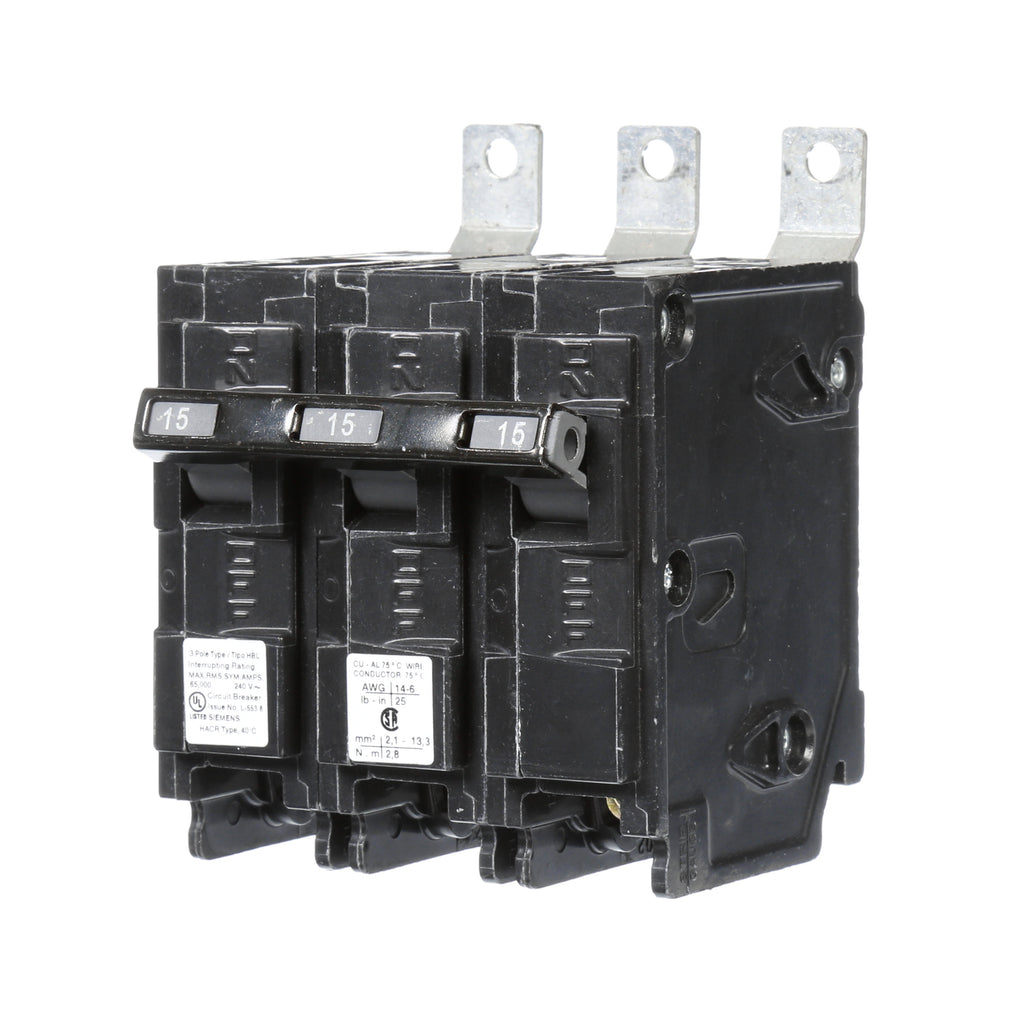

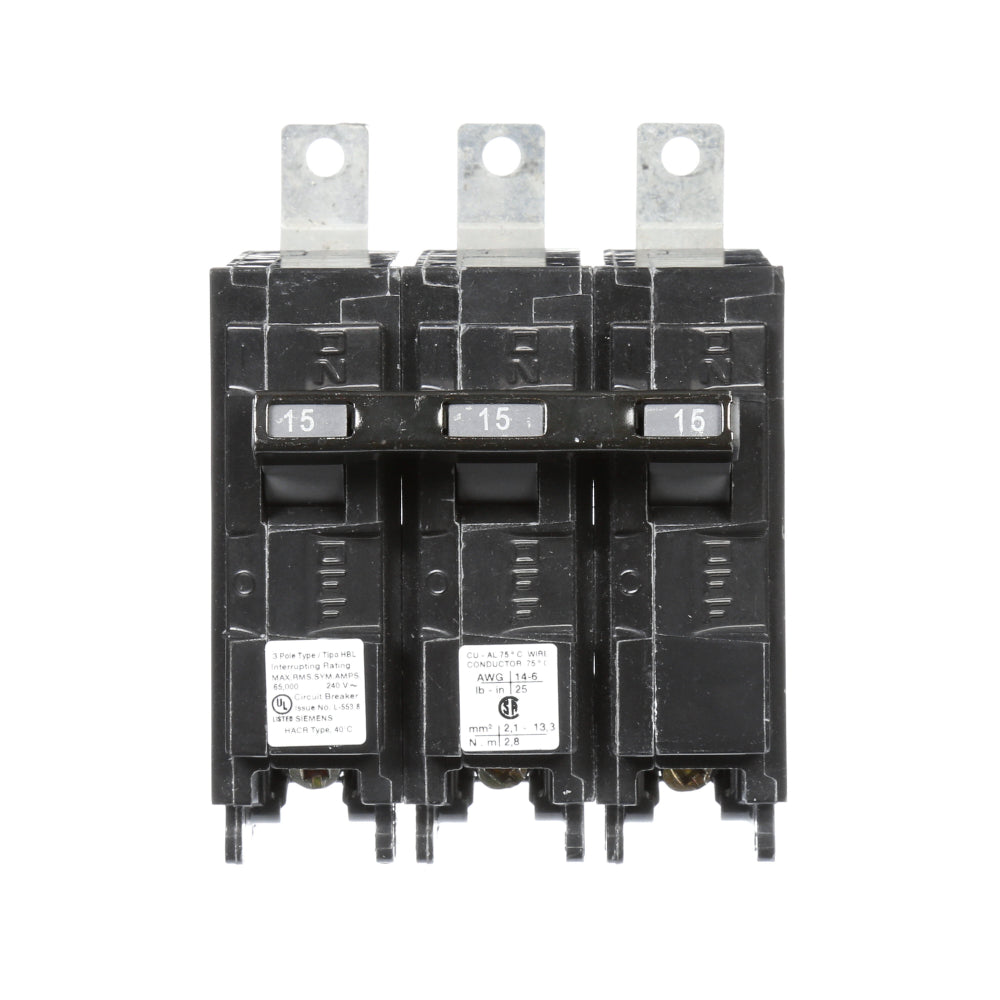

B315HH - Siemens 3 Pole 15 Amp 240VAC Bolt-On Molded Case Circuit Breaker 65kA Interrupt

B315HH

B315HH is a 3 pole, 15 amp, 240VAC bolt-on molded case circuit breaker designed for reliable low voltage circuit protection in commercial and industrial applications.This Siemens Type HBL circuit breaker features a 65kA interrupt rating, thermal-magnetic trip unit, and is UL listed, HACR, and CSA certified for safe and dependable performance. Its compact design and toggle actuator make it ideal for panelboard mounting.

• Part Number: B315HH
• Manufacturer: Siemens
• Series/Frame: Type HBL
• Amperage: 15 Amps
• Voltage Rating: 240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA
• Frequency: 60 Hz
• Trip Unit: Thermal-Magnetic
• Standards: UL Listed, HACR, CSA, Reverse Feed
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B315HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264205
• GTIN : 00783643264205
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
