B220HID - Siemens 20 Amp 240V 2 Pole B Series Bolt-On Circuit Breaker High Intensity Discharge

B220HID

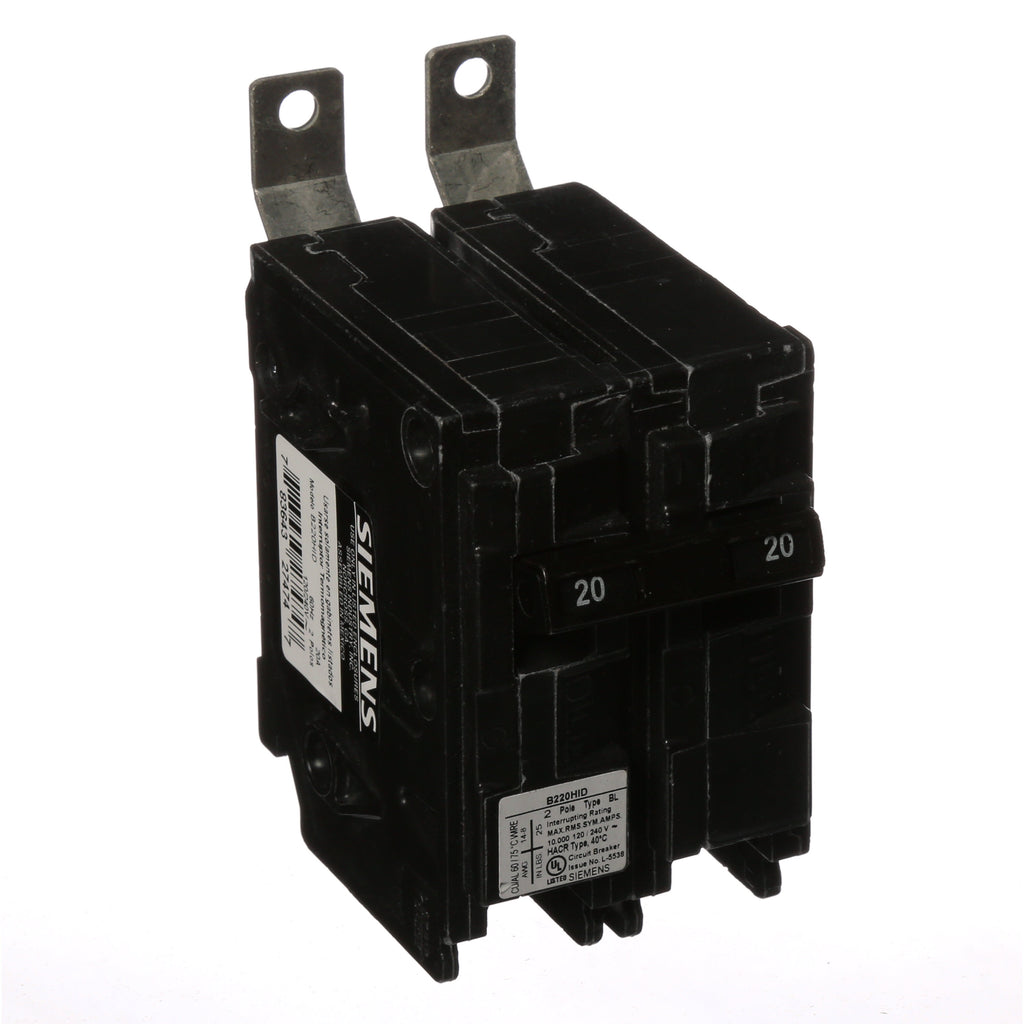

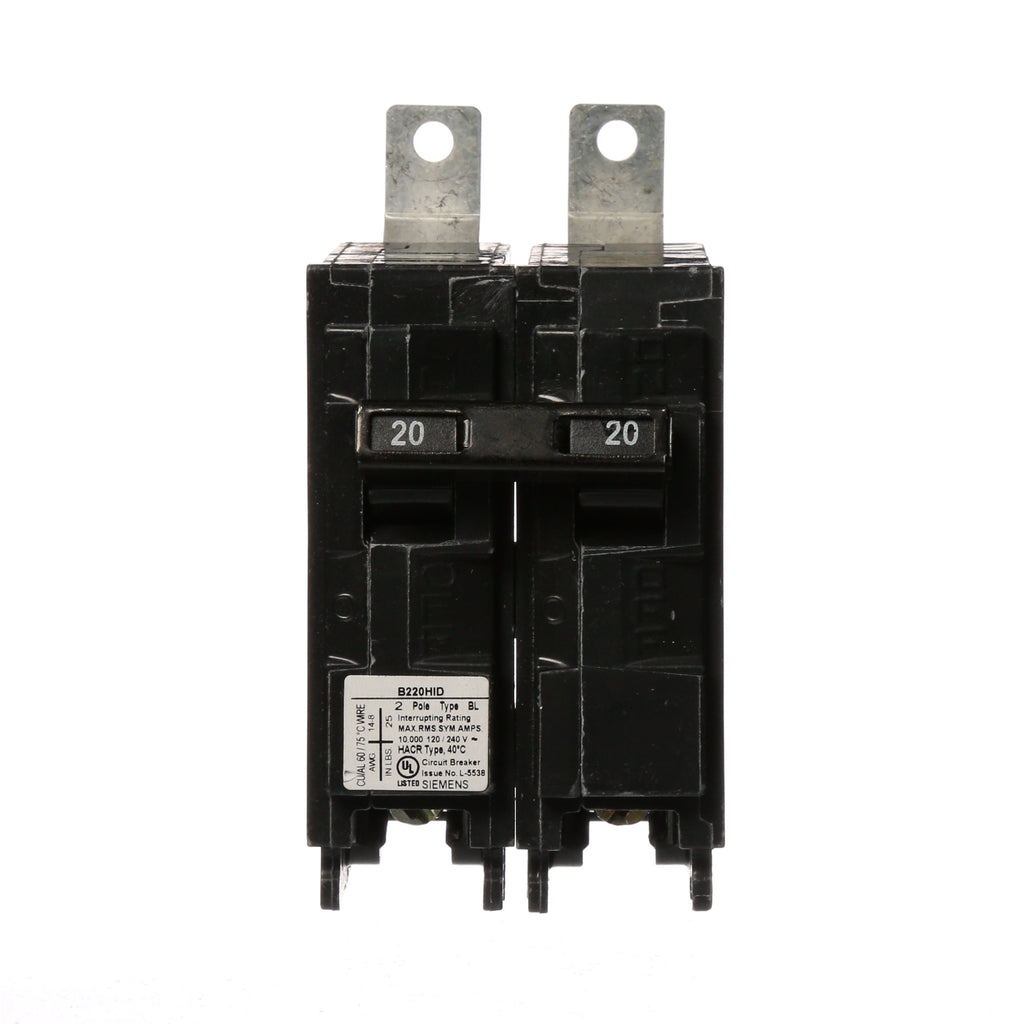

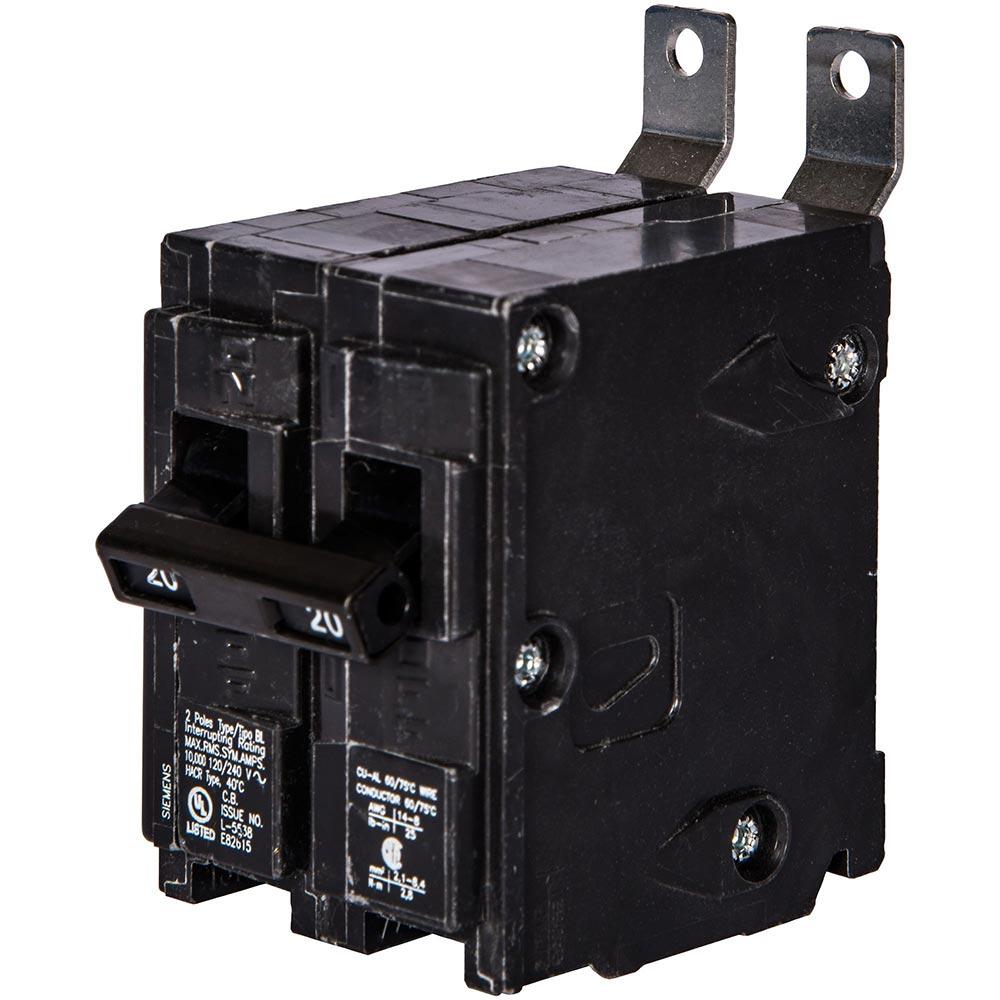

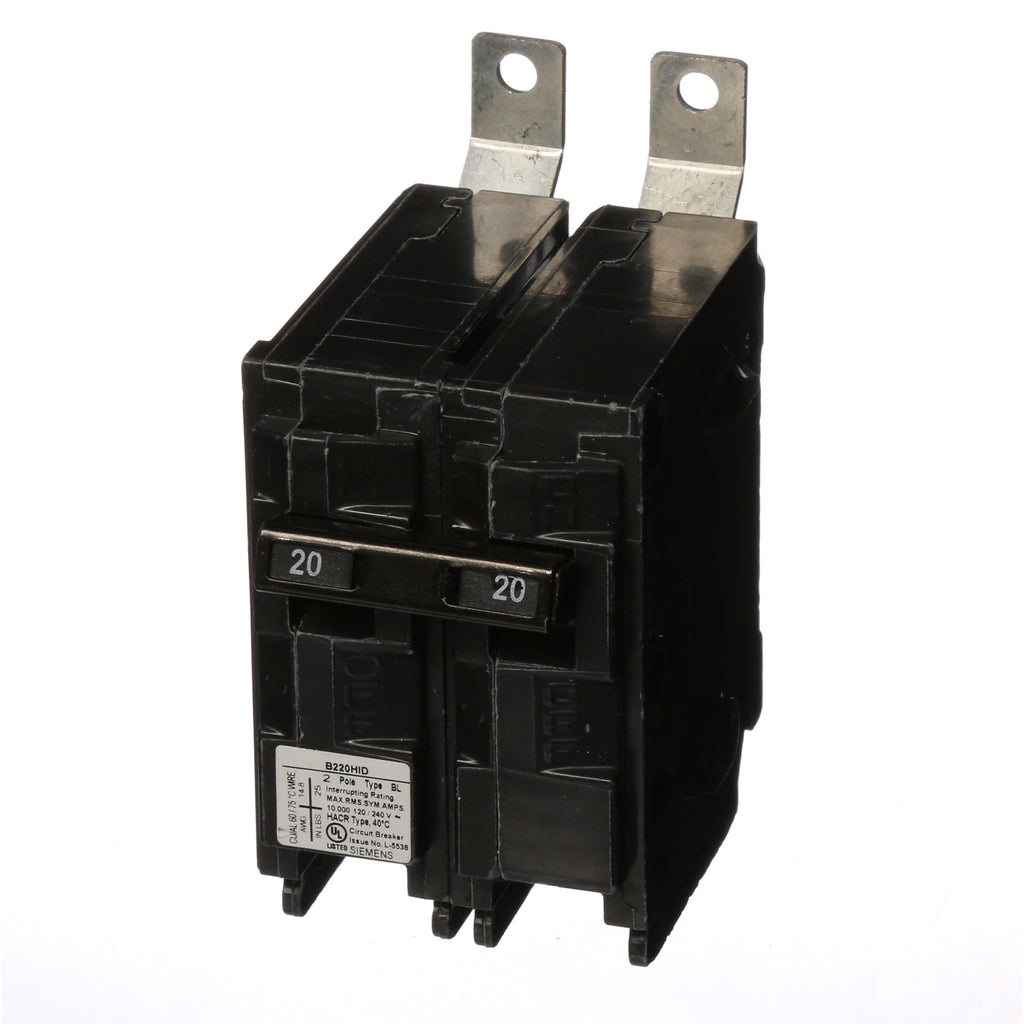

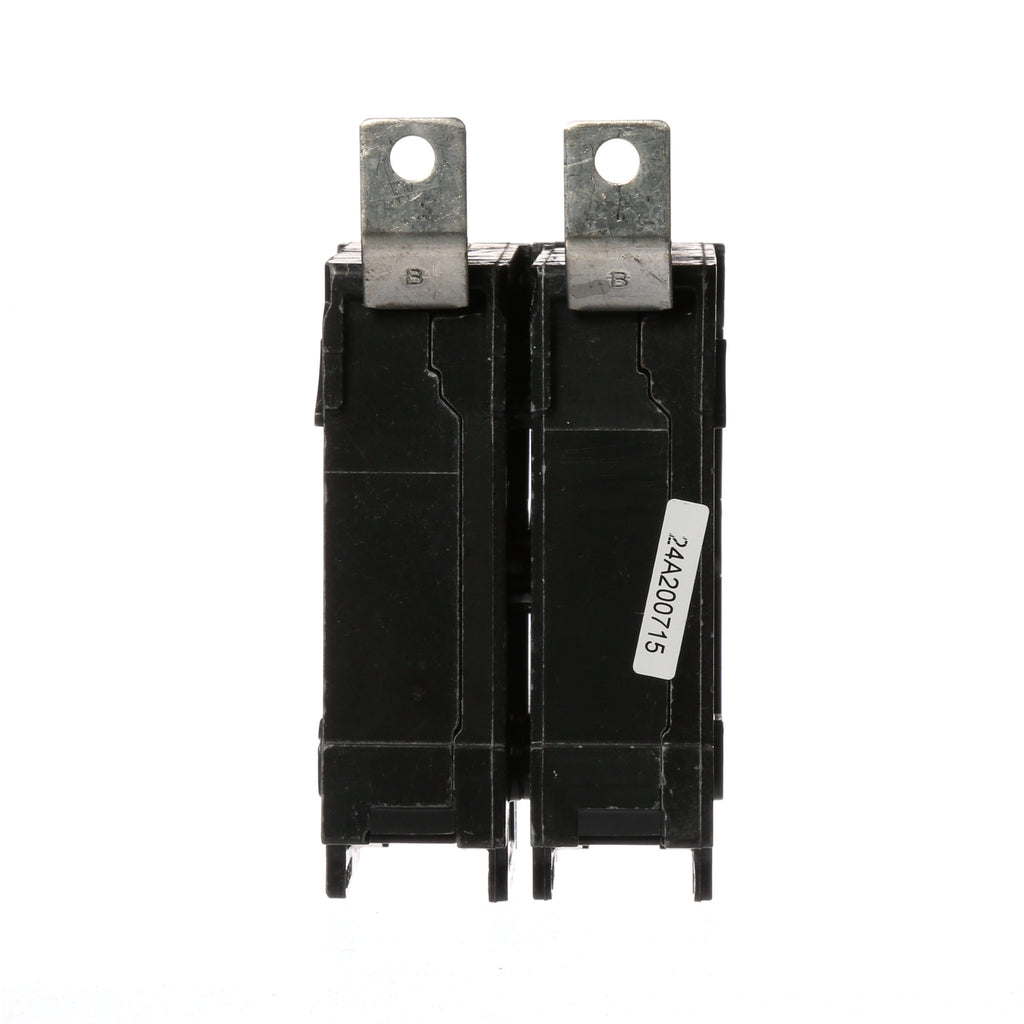

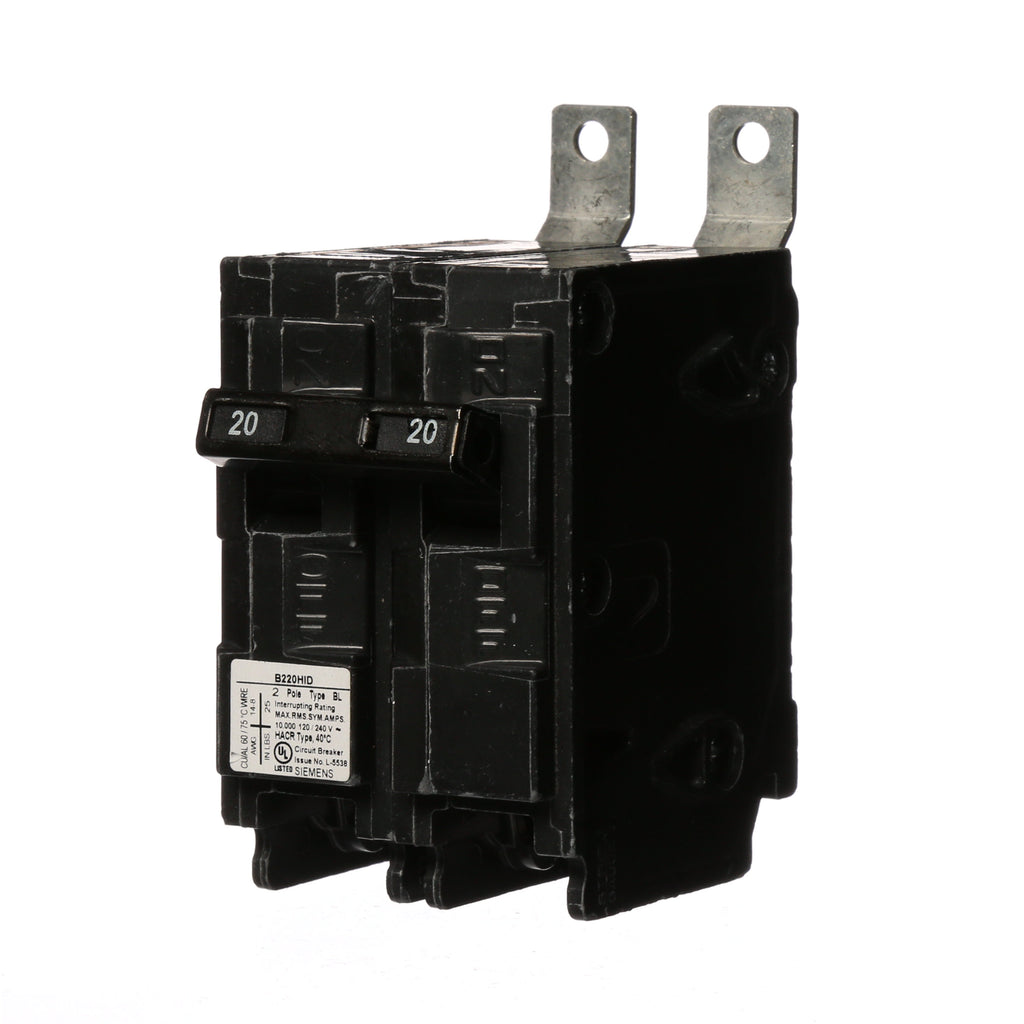

B220HID is a Siemens 20 Amp, 240 Volt, 2 Pole B Series bolt-on circuit breaker designed for high intensity discharge applications.This Siemens B220HID circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It is rated for 10,000 A interrupting capacity at 120 Volts AC and mounts with a bolt-on connection. The breaker is part of the B Series frame and is intended for single-phase AC power systems.

• Amperage: 20 Amp
• Voltage: 240 Volts AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10,000 A at 120 V AC
• Series/Frame: B Series
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Application: High Intensity Discharge (HID)
• Phase: Single Phase
• Voltage Type: AC
• Certifications: UL Listed (implied by Siemens standard compliance)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B220HID
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 783643274747
• GTIN : 00783643274747
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
