Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B220

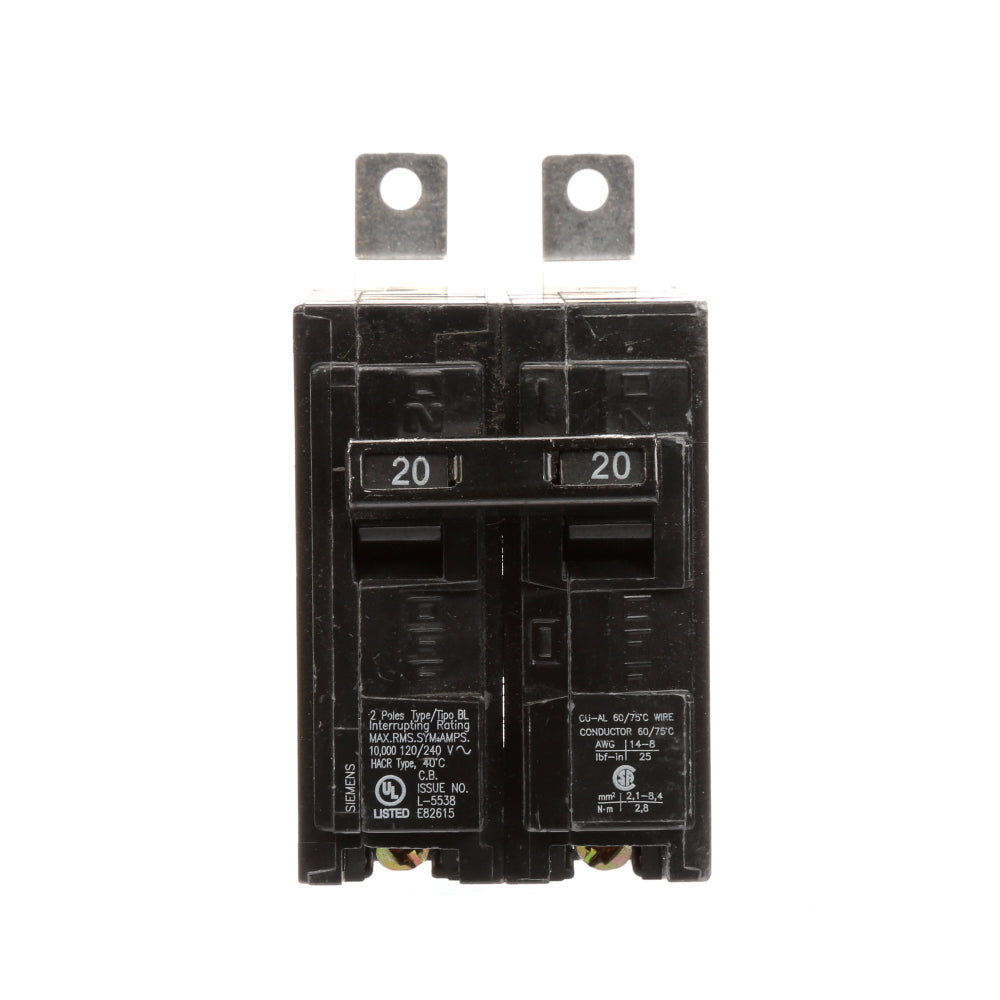

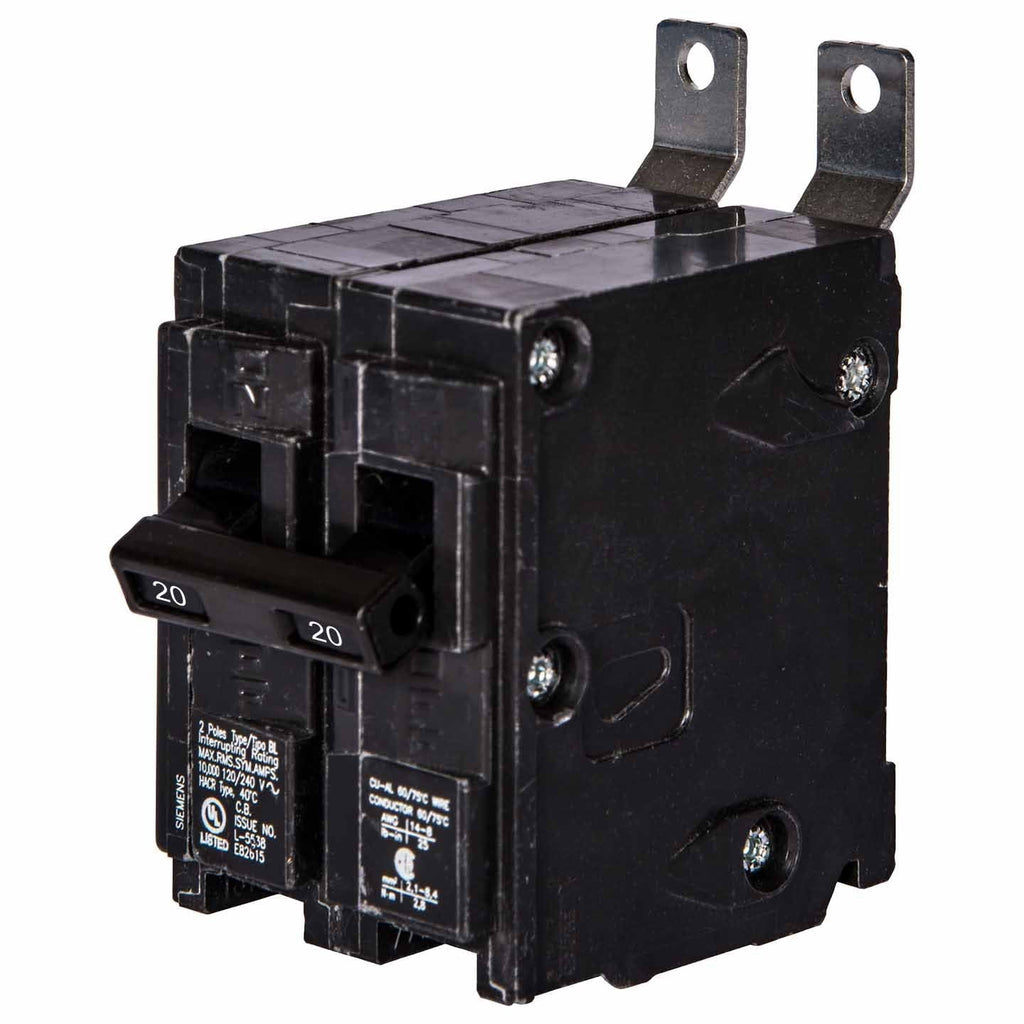

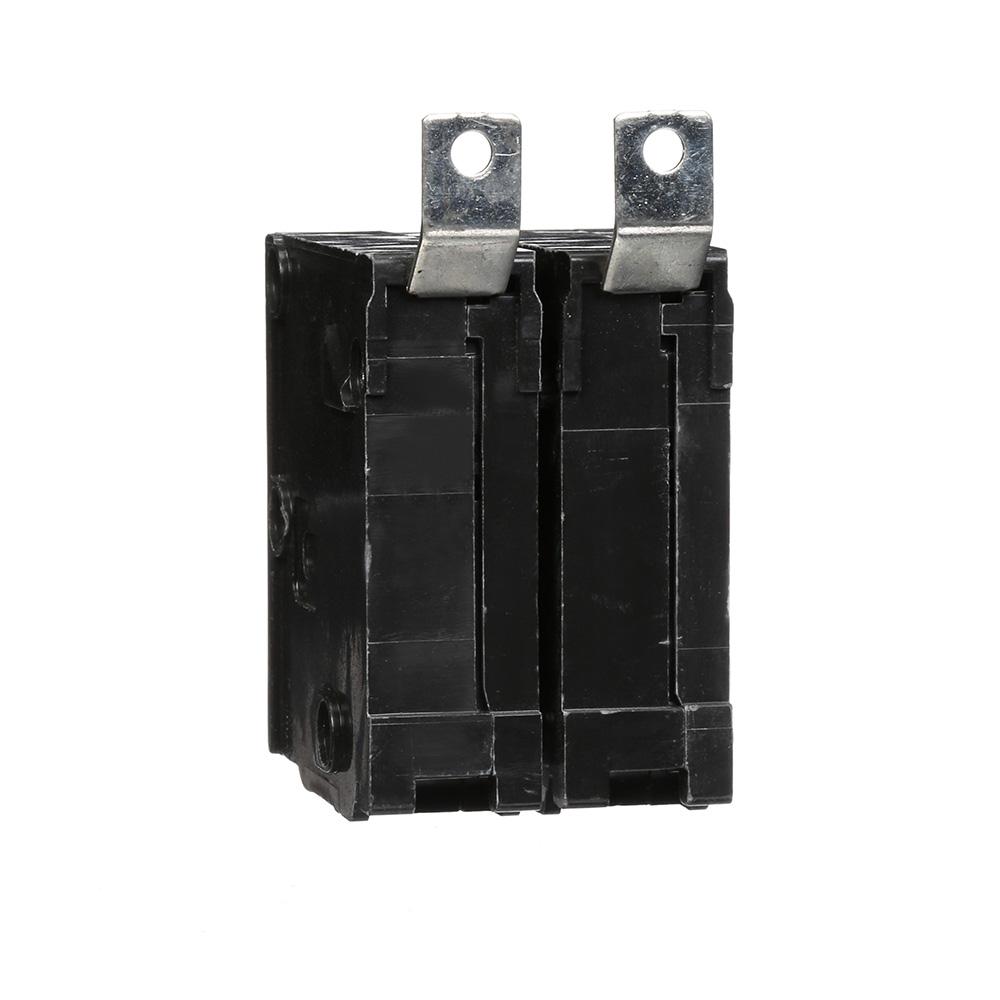

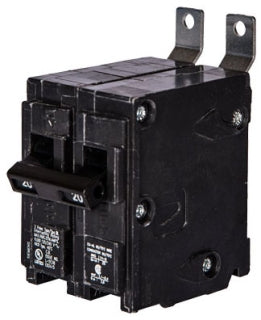

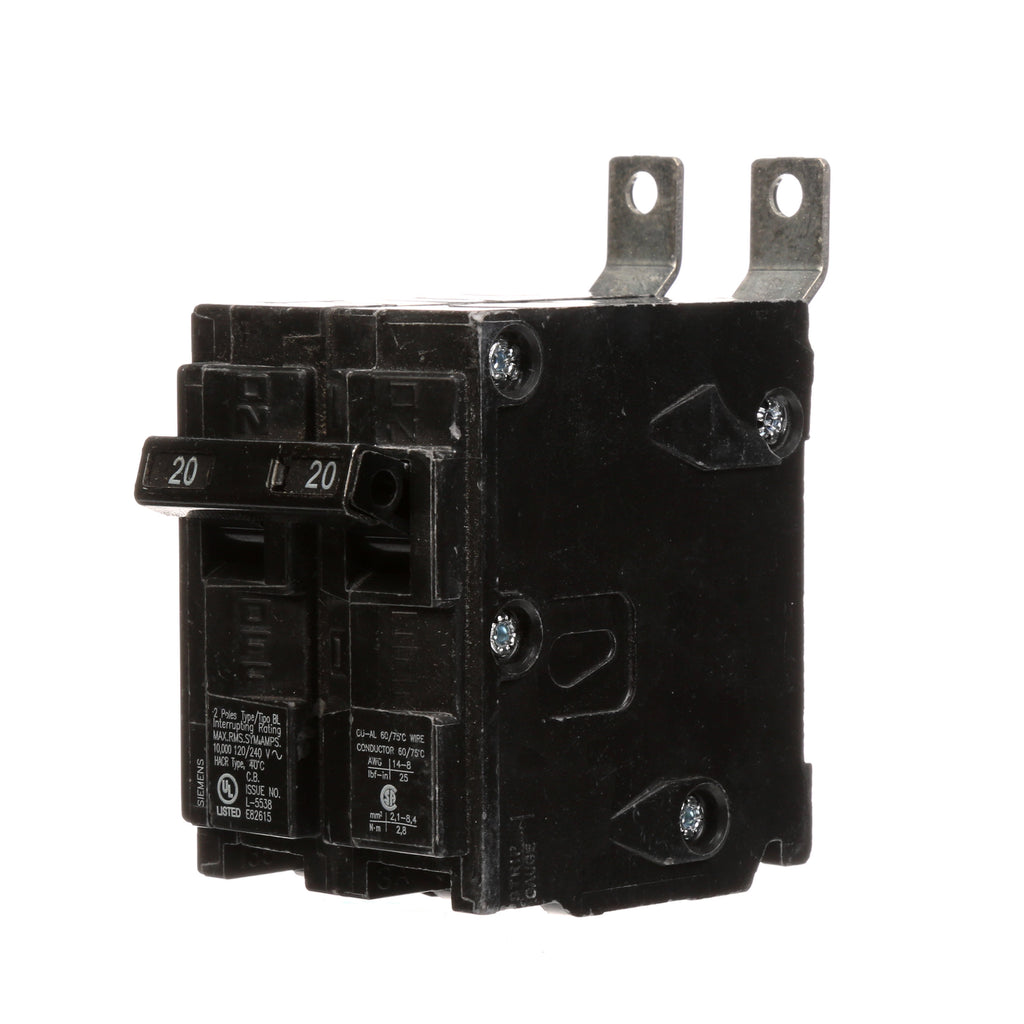

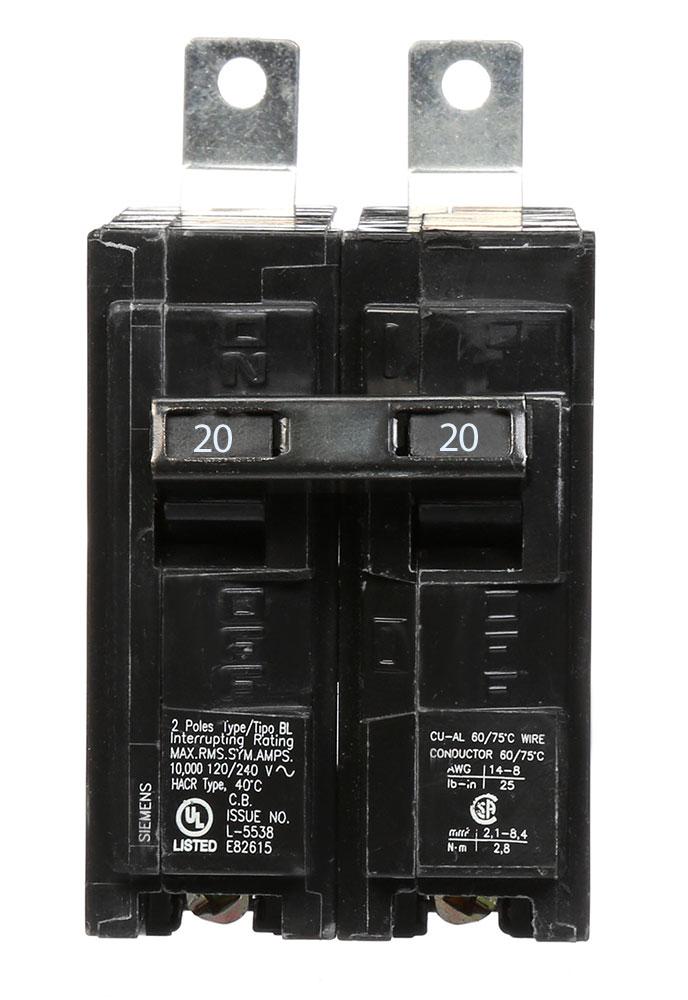

B220 - Siemens BL Series 2-pole, 20 Amp thermal magnetic molded case circuit breaker rated for 120/240VAC.The Siemens B220 features bolt-on mounting, 10kAIC interrupting rating at 120/240VAC, and thermal magnetic trip protection for reliable overcurrent safeguarding in panelboard applications.
- Part Number: B220
- Manufacturer: Siemens
- Series/Frame: BL
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 2
- Phase: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC at 120/240VAC
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
Specifications
- Part Number: B220
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263536
- GTIN : 00783643263536
- Country of Origin : Mexico
- Dimensions : 12.598 x 4.331 x 3.543 inch
- Weight : 0.639 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
