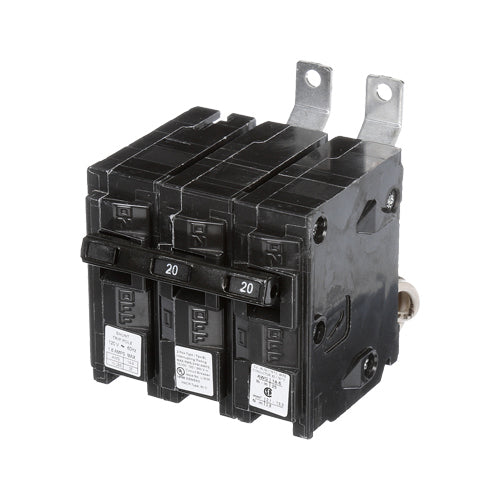

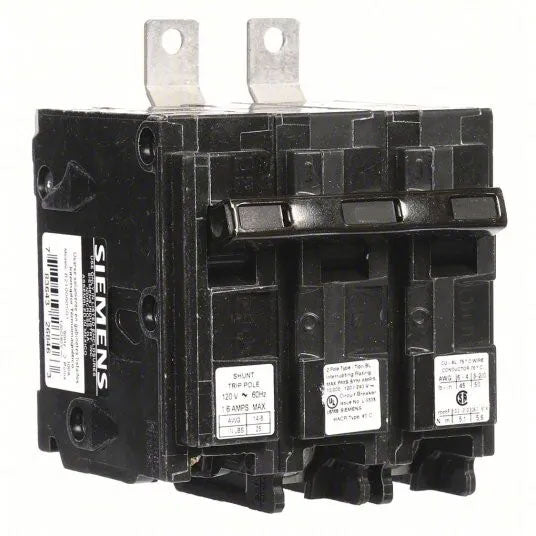

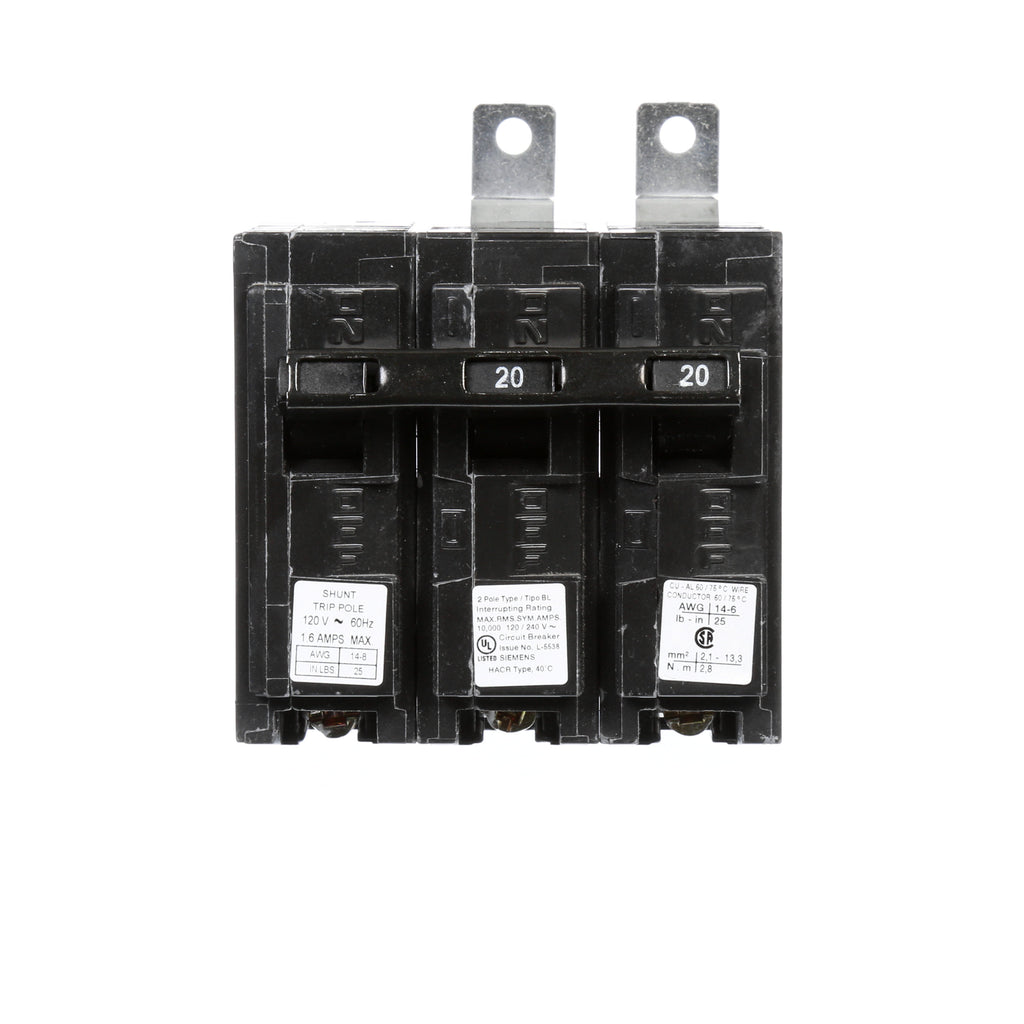

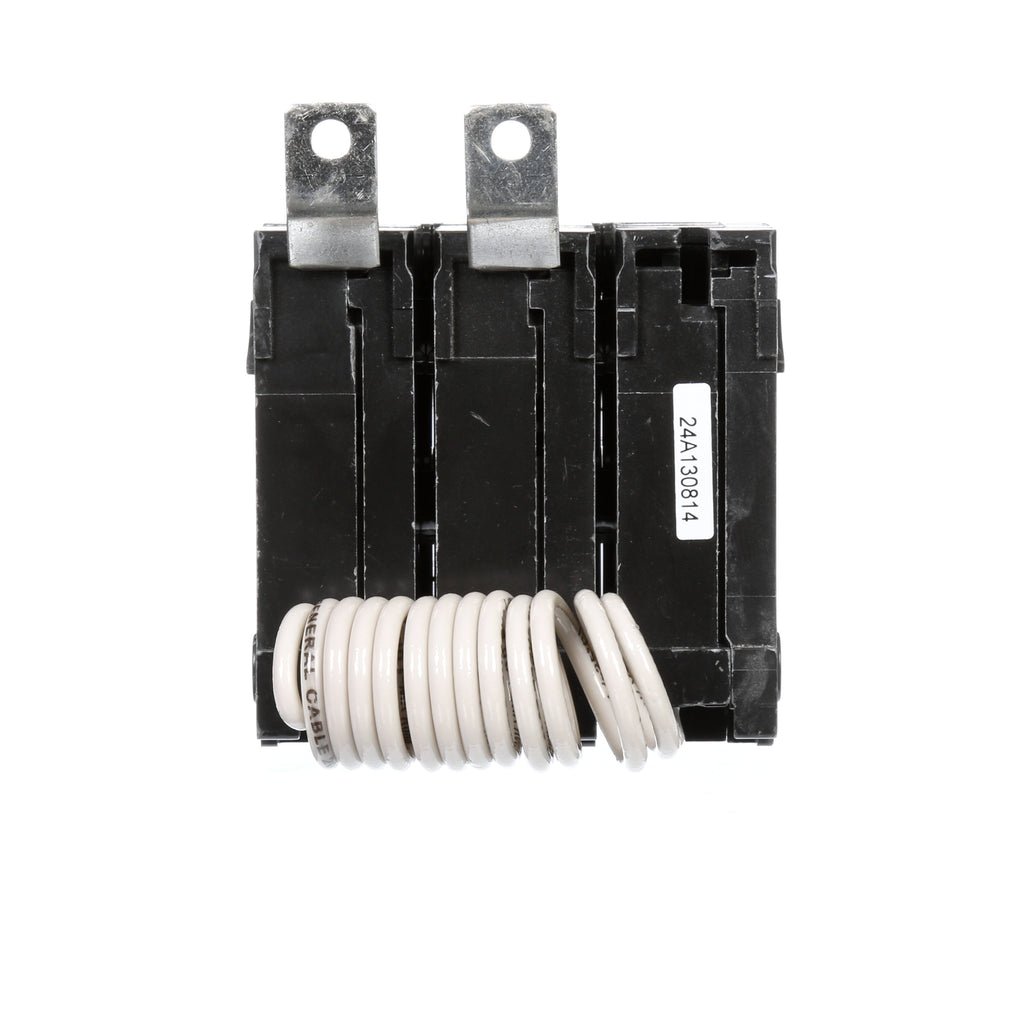

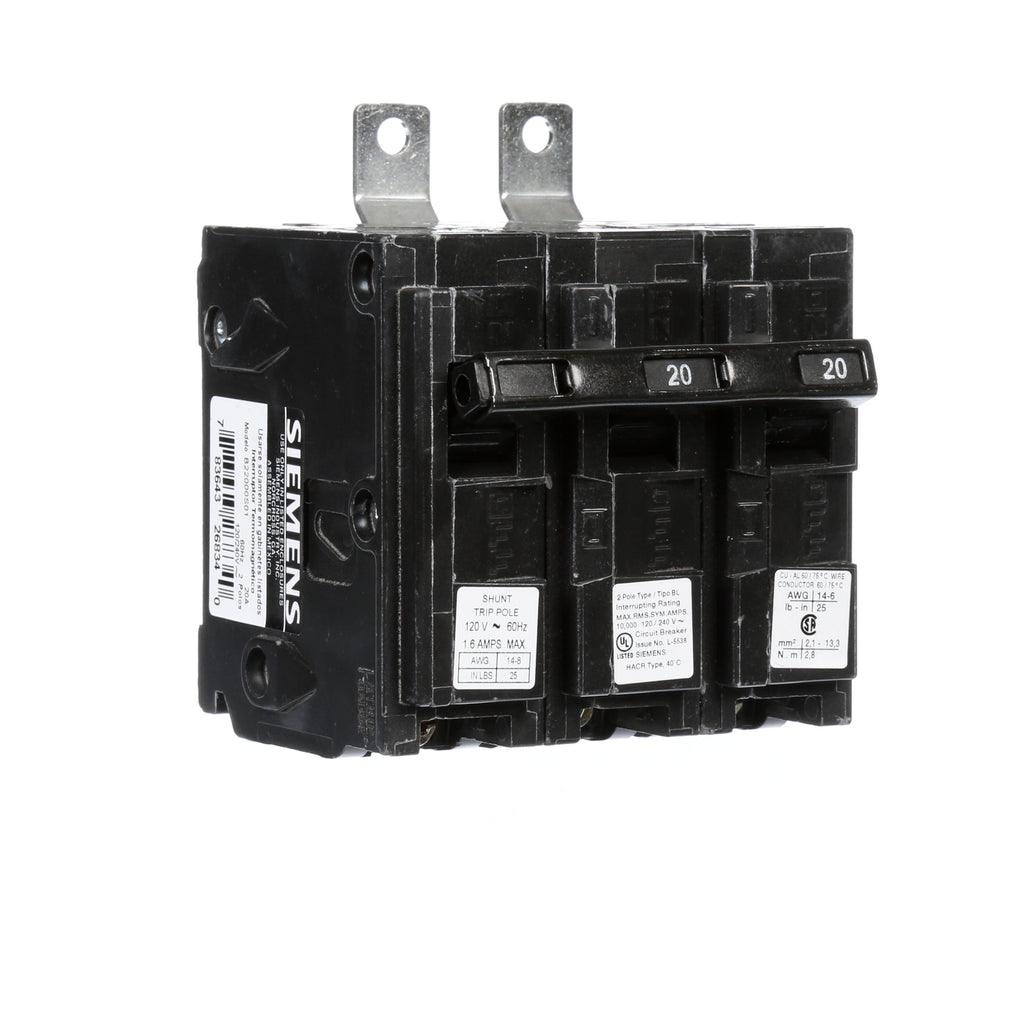

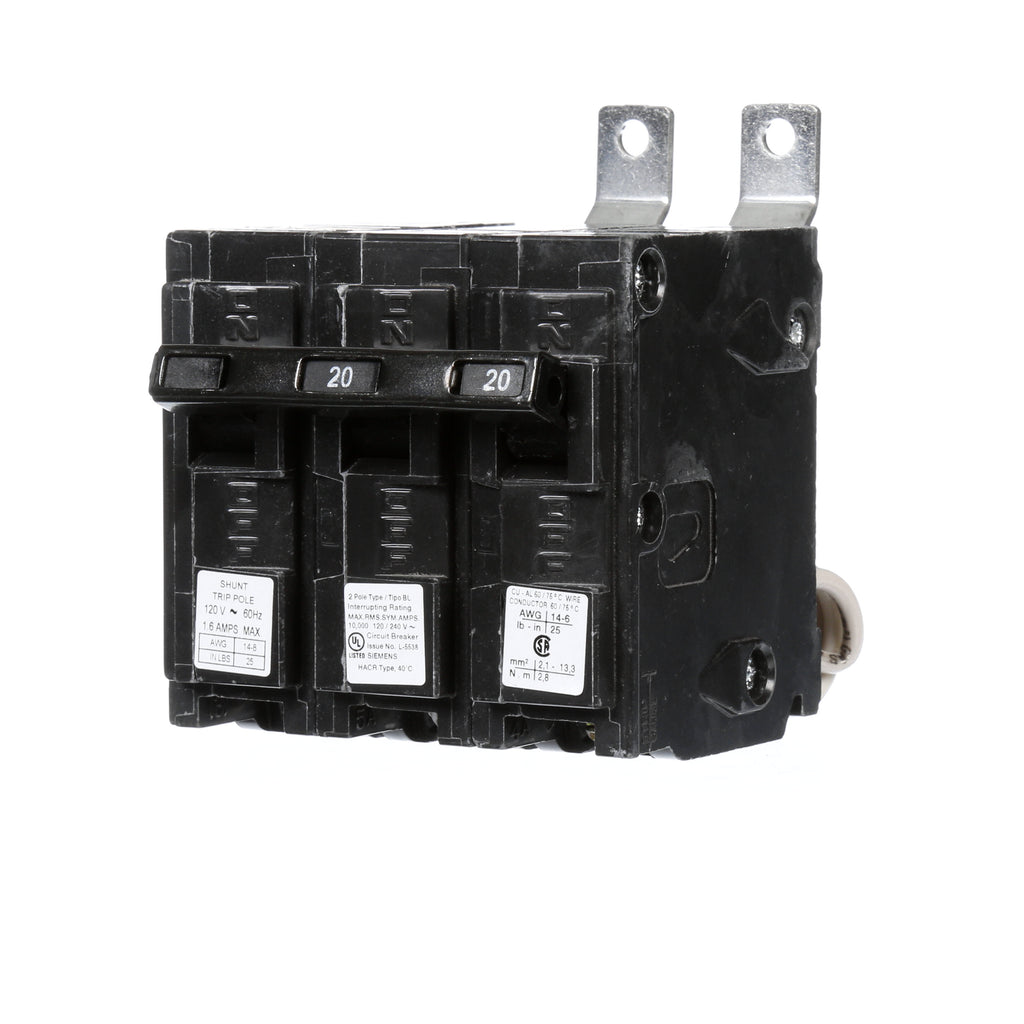

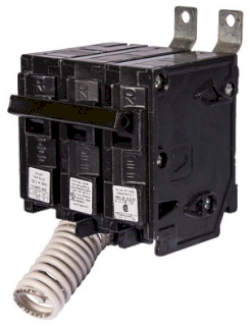

B22000S01 - Siemens 20 Amp 2 Pole 120/240V Molded Case Circuit Breaker with 10kA Interrupt Rating and 120V Shunt Trip

B22000S01

B22000S01 is a Siemens 20 Amp 2 Pole molded case circuit breaker designed for 120/240V AC applications with a 10kA interrupt rating and 120V shunt trip feature.This breaker features a bolt-on mounting type, thermal magnetic trip unit, and is part of Siemens' general purpose MCCB family. It provides reliable circuit protection with a 10,000 A interrupting capacity at 240VAC and includes a 120V shunt trip for remote tripping capability. The compact design supports panel mounting and meets industry certifications for safety and performance.

• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 AIC at 240VAC
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Frame/Series: General Purpose MCCB
• Certifications: Industry Standard Safety Certifications
• Connection Type: Bolt-On
• Product Lifecycle: Active

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B22000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268340
• GTIN : 00783643268340
• Country of Origin : Mexico
• Dimensions : 2.571 x 3.00 x 2.89 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
