Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATMR3-1/2

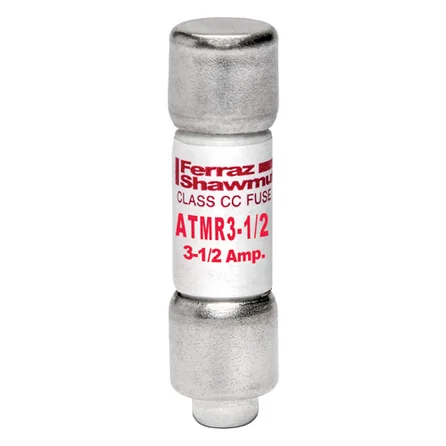

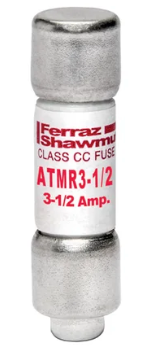

ATMR3-1/2 is a Ferraz Shawmut Mersen Class CC fast-acting fuse rated for 3.5 amperes and 600 volts AC/DC, designed for branch circuit protection.This fuse features a compact cylindrical body with a 0.41 inch diameter and 1.5 inch length, offering very current-limiting protection with a 200 kA interrupt rating at 600 volts. It uses a ferrule terminal with tin-plated copper material and mounts via clip for easy installation. The ATMR3-1/2 is UL and CSA certified, RoHS compliant, and suitable for both AC and DC applications.
- Key Specifications
- Amperage: 3.5 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: Class CC
- Speed/Characteristic: Fast-Acting
- Interrupt Rating: 200 kA AC, 100 kA DC
- Mounting Type: Clip
- Terminal Type: Ferrule, Tin-Plated Copper
- Dimensions: 0.41 in diameter, 1.5 in length
- Certifications: UL 248, CSA C22.2 No. 248.4
- RoHS Compliant: Yes
- Part Number: ATMR3-1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 782001903879
- GTIN : 00782001903879
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
