Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0Y

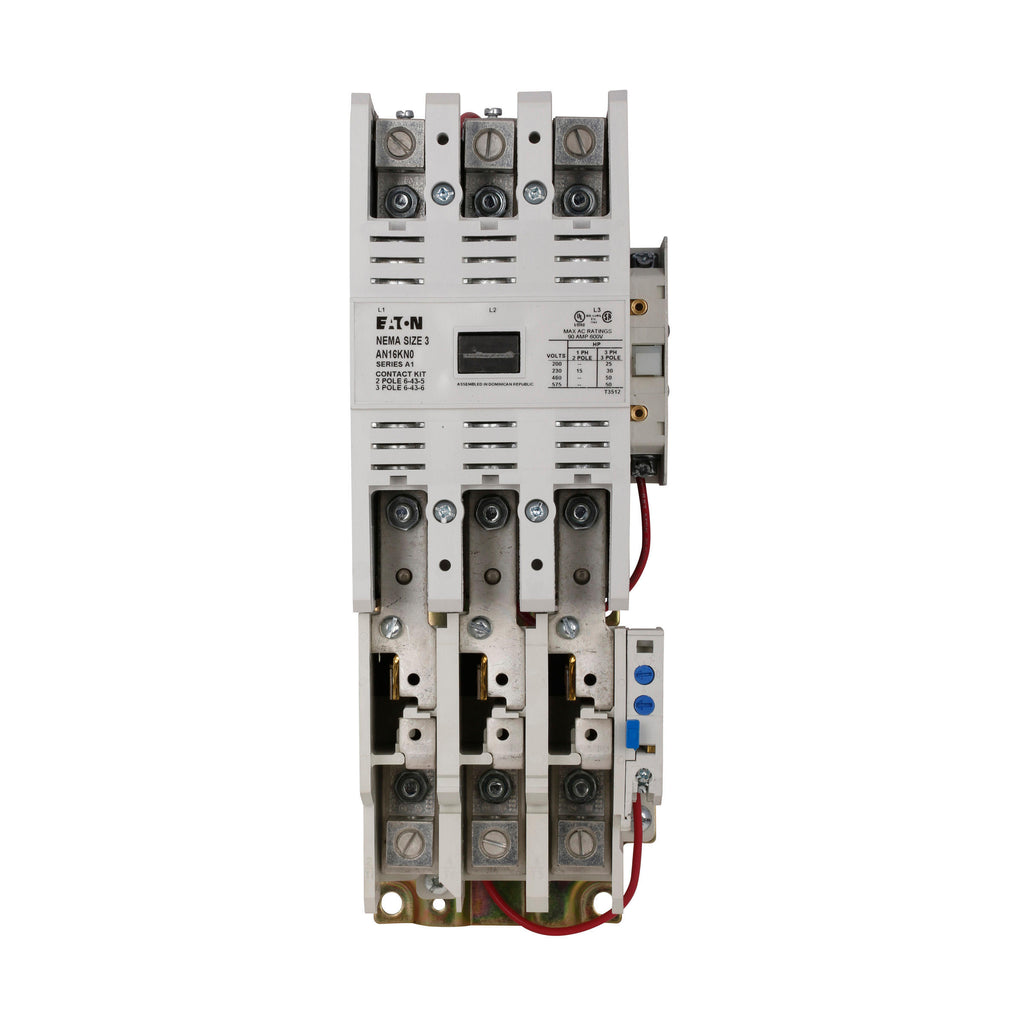

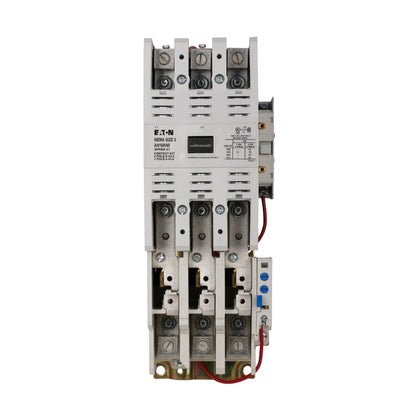

AN16KN0Y is a Cutler Hammer Freedom Series NEMA Size 3 magnetic motor starter designed for reliable motor control in industrial applications. This full voltage, non-reversing starter features a C306 bi-metal overload relay and is built for 3-phase operation with a 90A current rating and 380-415VAC voltage range. The starter is housed in an open enclosure and is suitable for horizontal surface mounting, making it ideal for a variety of motor control needs. The AN16KN0Y provides robust protection and control for motors up to 50 HP at 380V 50Hz and 30 HP at 480/600V. It includes ambient temperature compensated bimetallic overload protection with automatic/manual reset options and trip class 10/20. The unit is designed for durability and ease of maintenance, supporting up to 3,000,000 electrical operations at maximum HP ratings.
- Part Number: AN16KN0Y
- Manufacturer: Cutler Hammer
- Series: Freedom Series
- NEMA Frame Size: 3
- Mounting: Horizontal, Surface
- Enclosure: Open
- Current Rating: 90A
- Voltage: 380-415VAC
- Poles: 3
- Phase: 3
- Overload Relay: C306 Bi-Metal
- Reset: Automatic/Manual
- Approvals: CSA, UL
Specifications
- Part Number: AN16KN0Y
- Manufacturer : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- Coil Voltage Minimum : 48
- Nema Rating : 3
Product Data
- Weight : 15
