Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0K

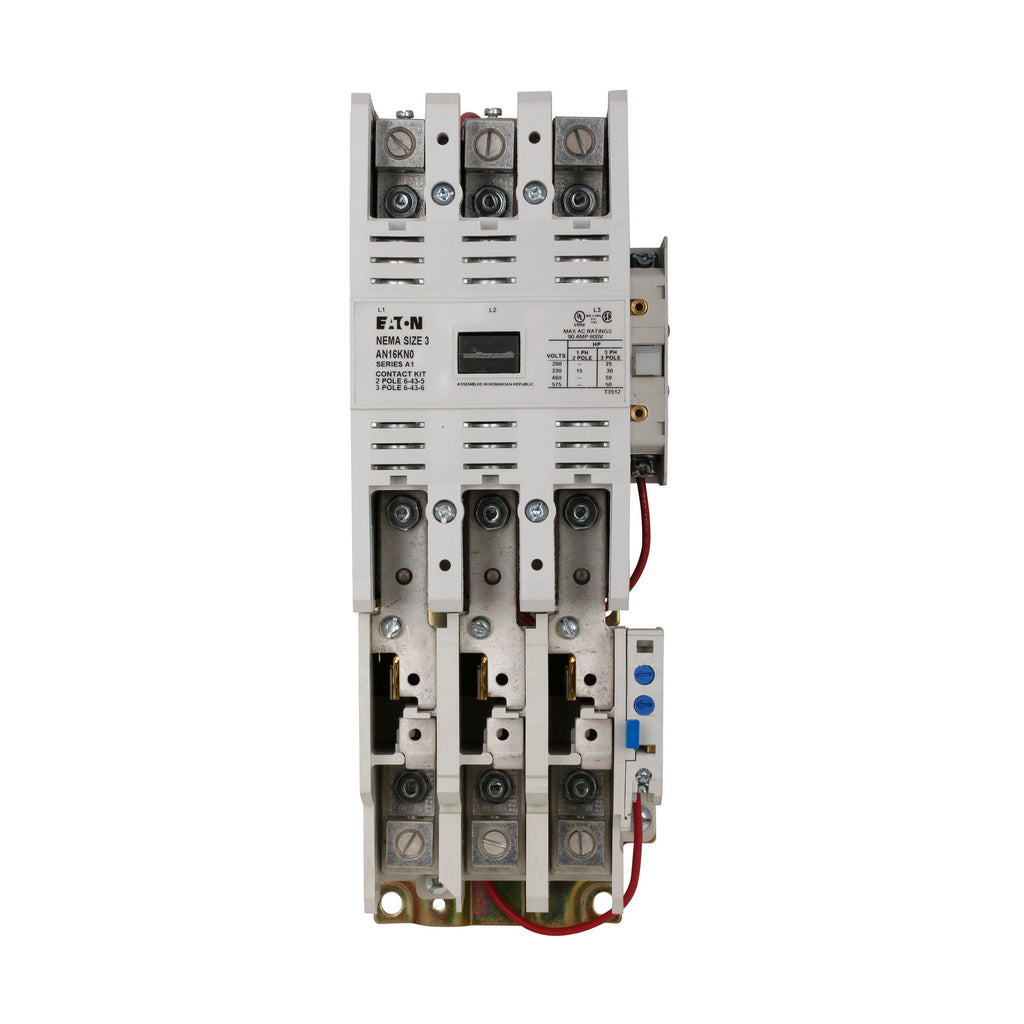

AN16KN0K is a Cutler Hammer Freedom Series NEMA Size 3 motor starter designed for reliable three-phase motor control applications. This full voltage, non-reversing starter features a 90A amperage rating, 3 poles, and a 600VAC maximum voltage, making it suitable for a wide range of industrial uses. The starter is equipped with a C306 bi-metal overload relay for dependable protection and is designed for horizontal mounting. Heater packs must be purchased separately to match the motor requirements. The unit is built to meet NEMA standards and is suitable for general duty control applications. This starter is part of the Freedom Series, known for durability and ease of use in demanding environments. It is ideal for applications requiring a robust, open enclosure starter with bimetallic overload protection. The unit is designed for 3-phase operation and is suitable for use with motors up to 50 HP at 480/600V.
- Part Number: AN16KN0K
- Manufacturer: Cutler Hammer
- Series: Freedom Series
- Frame Size: NEMA Size 3
- Amperage Rating: 90A
- Maximum Voltage: 600VAC
- Poles: 3
- Mounting Type: Horizontal
- Overload Relay: C306 bi-metal
- Configuration: Full Voltage, Non-Reversing
- Phase: Three-phase
- Enclosure: Open
Specifications
- Part Number: AN16KN0K
- Manufacturer : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 240
- Nema Rating : 3
Product Data
- Weight : 15
