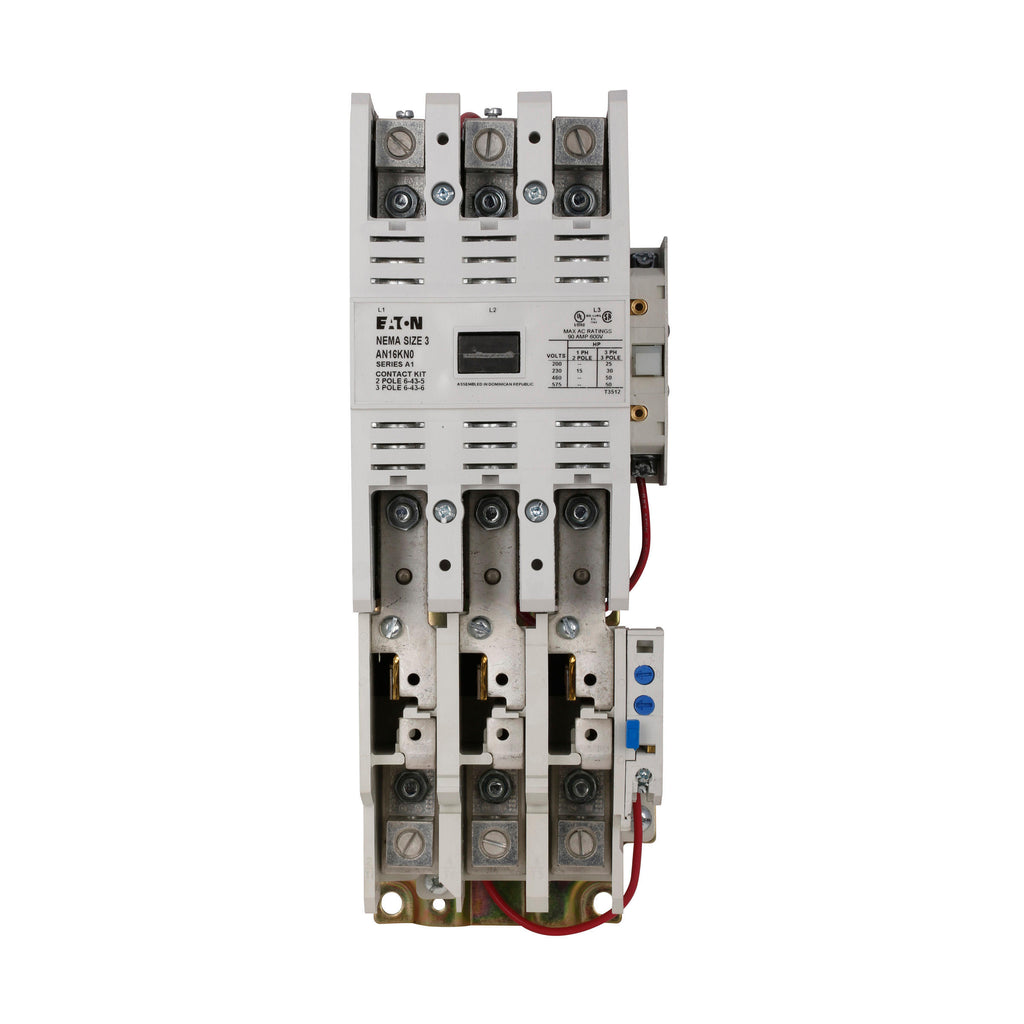

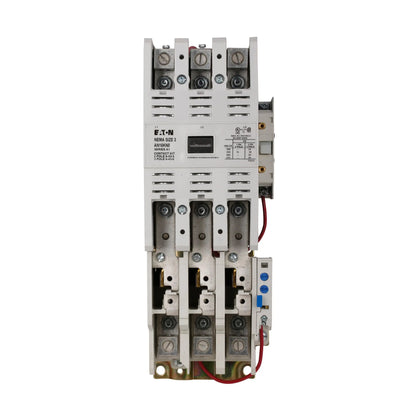

AN16KN0 - Cutler Hammer 90A 600V 3-Pole NEMA Size 3 Freedom Series Non-Reversing Motor Starter with C306 Bi-Metal Overload Relay, Open Enclosure, 120V Coil

AN16KN0

AN16KN0 is a Cutler Hammer Freedom Series NEMA Size 3, non-reversing, 3-pole motor starter designed for robust industrial motor control applications.

This full voltage starter features a 90A contactor, 600V maximum voltage rating, and includes a C306 bi-metal overload relay for reliable motor protection. The unit is supplied with a 120V coil, is certified to UL and CSA standards, and is rated for up to 50 HP at 480/600V. Heater packs are adjustable and must be purchased separately. The starter is housed in an open enclosure and is designed for horizontal mounting.

Key Specifications
• Amperage: 90A
• Voltage: 600VAC maximum
• Poles: 3
• Mounting Type: Horizontal
• Interrupt Rating: Not specified in available data
• Series/Frame: Freedom Series, NEMA Size 3
• Trip Unit: C306 bi-metal overload relay (ambient temperature compensated, automatic/manual reset, Class 10/20)
• Certifications: UL Listed, CSA Certified
• Coil Voltage: 120V (60 Hz) or 110V (50 Hz)
• Enclosure: Open
• Configuration: Non-reversing
• Horsepower: 25 HP at 208V, 30 HP at 240V, 50 HP at 480/600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN16KN0
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN16
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Nema Rating : 3

Product Data

• UPC : 782116017904
• GTIN : 00782116017904
• Dimensions : 4.61" X 3.31" X 4.38"
• Weight : 3 lb
