Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0H

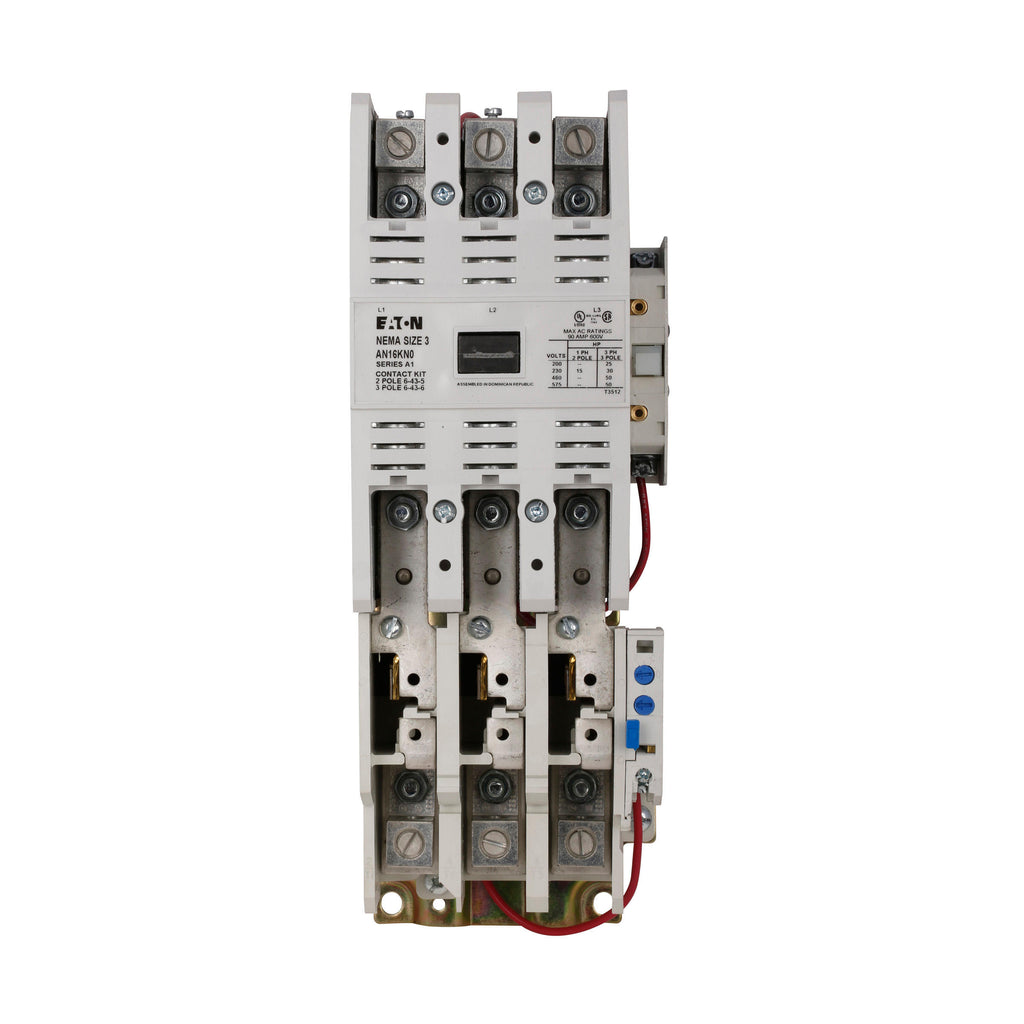

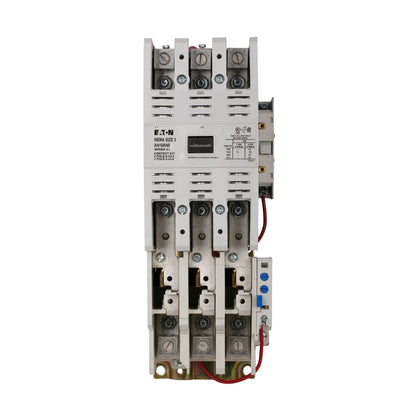

AN16KN0H is a Cutler Hammer Eaton Freedom Series motor starter designed for reliable full voltage, non-reversing motor control applications.This motor starter features a 90 ampere rating with 3 poles and supports three-phase power. It is built to NEMA Size 3 standards with an open enclosure and includes a C306 bi-metal overload relay. The unit supports motor horsepower ratings up to 25 HP at 208V, 30 HP at 240V, and 50 HP at 480/600V. The coil voltage is factory set for 110-120V AC operation. It is designed for horizontal mounting and complies with CSA and UL certifications.
- Amperage: 90 A
- Voltage: 600 VAC maximum
- Poles: 3
- Phase: Three-phase
- Coil Voltage: 110-120 V AC
- Mounting Type: Horizontal
- Overload Relay: C306 bi-metal
- NEMA Frame Size: Size 3
- Configuration: Full voltage, non-reversing
- Certifications: CSA Certified, UL Listed
Specifications
- Part Number: AN16KN0H
- Manufacturer : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 277
- Nema Rating : 3
Product Data
- Weight : 15
