- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0L

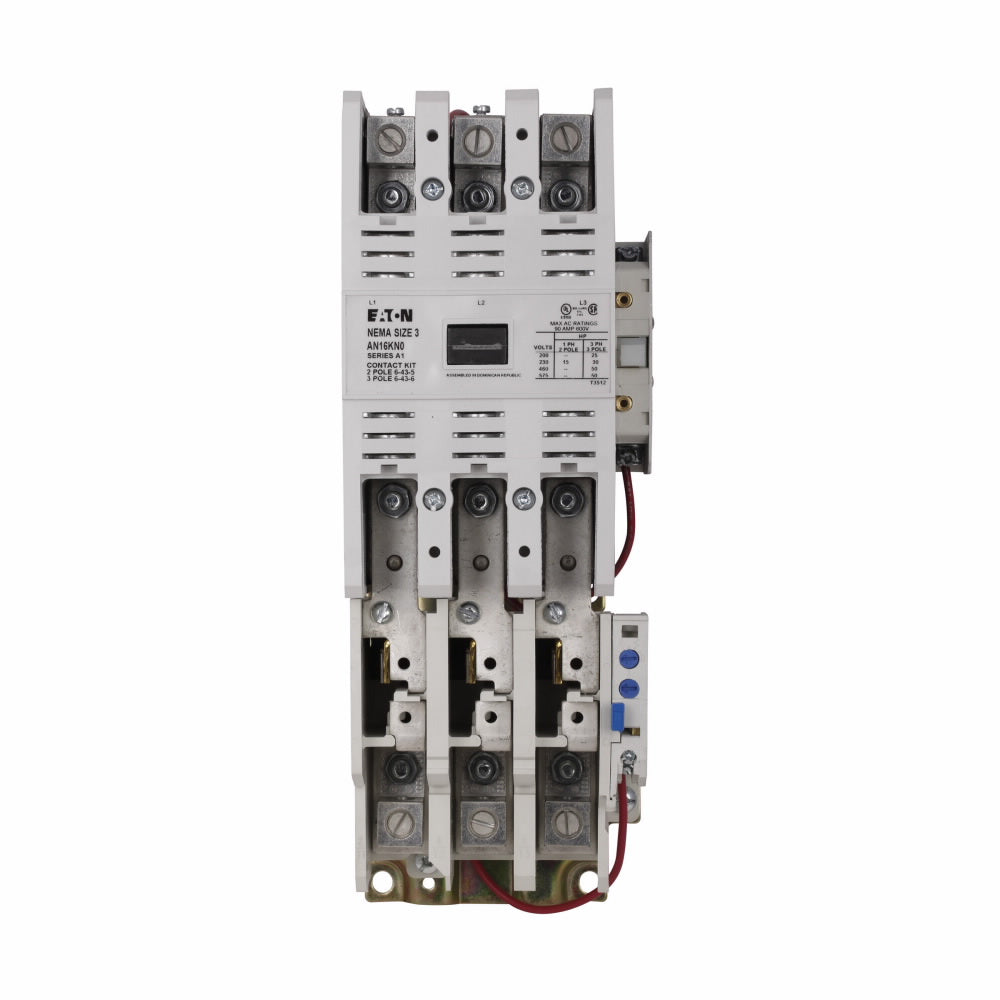

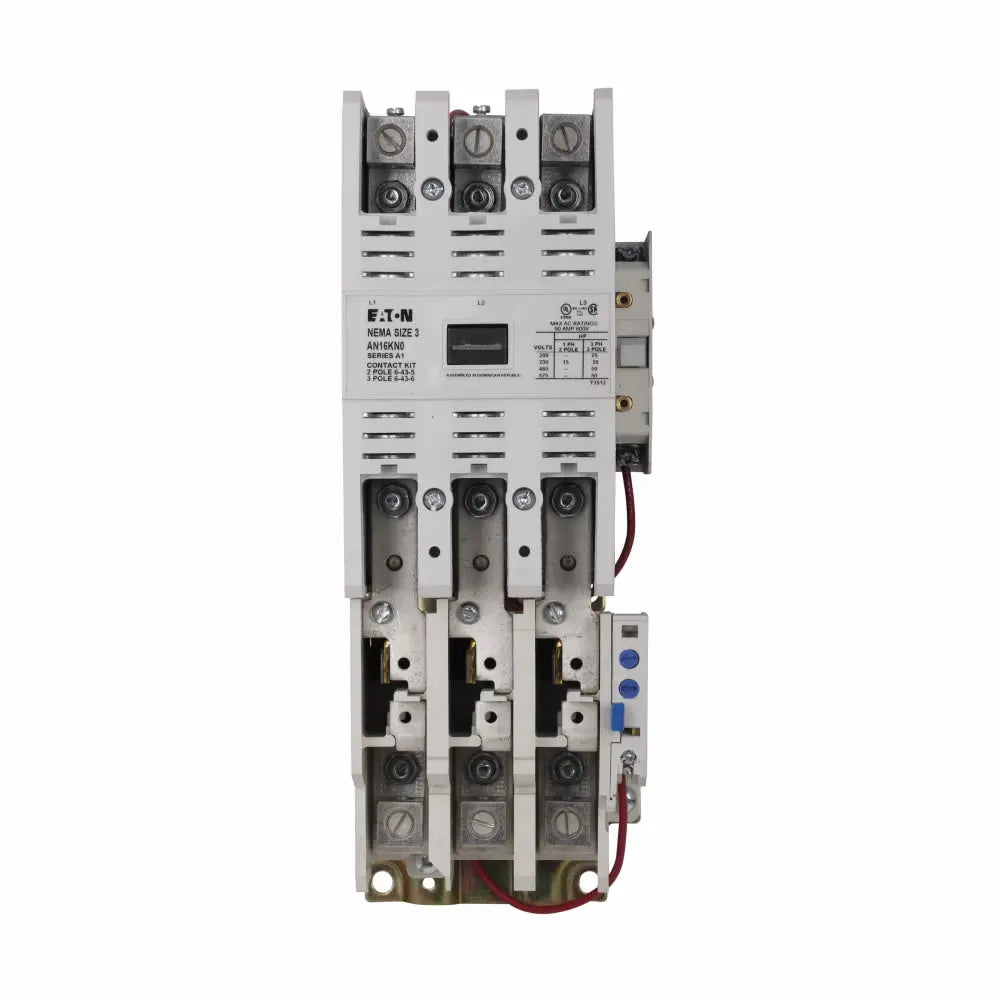

AN16KN0L is a Cutler Hammer Freedom Series motor starter designed for 3-phase motor control applications with a 90 amp rating and 3 poles. It features a 380V coil and is suitable for use up to 600 volts.AN16KN0L is a full voltage, non-reversing NEMA Size 3 motor starter equipped with a C306 bi-metal overload relay. It supports motor horsepower ratings of 25 hp at 208V, 30 hp at 240V, and 50 hp at 480/600V. The starter is designed for horizontal mounting and open enclosure use. Heater packs must be purchased separately.
- Amperage Rating: 90 A
- Voltage: Up to 600 V
- Poles: 3
- Coil Voltage: 380 V
- NEMA Frame Size: Size 3
- Overload Relay: C306 bi-metal
- Mounting Type: Horizontal
- Full Voltage, Non-Reversing
- Horsepower Ratings: 25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V
- Open Enclosure
- Certifications: CSA Certified, UL Listed
Specifications
- Part Number: AN16KN0L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 415
- Coil Voltage Minimum : 380
- Nema Rating : 3
Product Data
- UPC : 078211388039
- GTIN : 00782113880396
- Country of Origin : Dominican Republic
- Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
- Weight : 9.3 lb
- Certification : CSA Certified,UL Listed
