Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0V

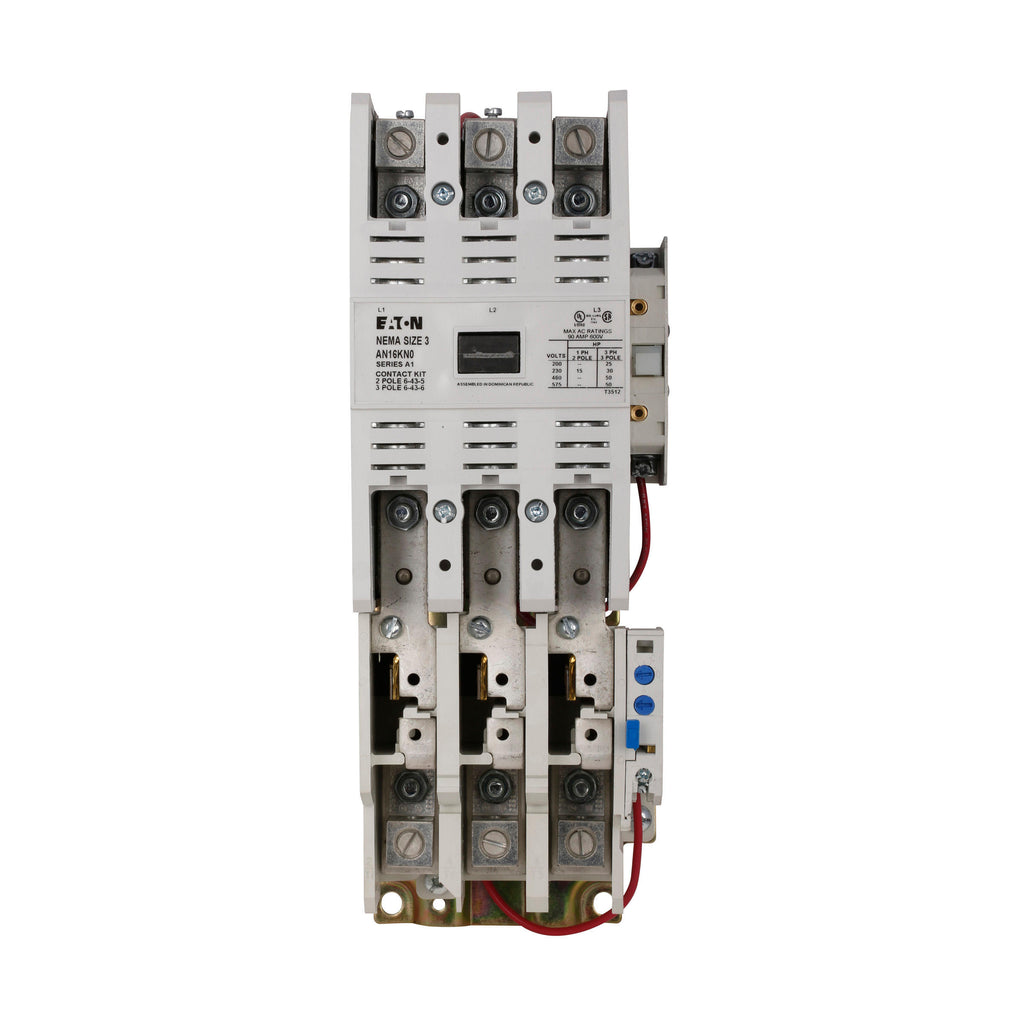

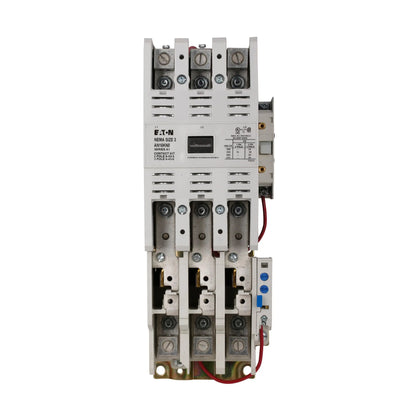

AN16KN0V is a Cutler Hammer Freedom Series NEMA Size 3 motor control starter designed for reliable three-phase motor protection and control. This non-reversing starter features a 90A amperage rating, 3 poles, and a 600VAC maximum voltage, making it suitable for a wide range of industrial applications. The unit includes a 32V coil and is built with a bimetallic overload relay for dependable thermal protection. The horizontal mounting configuration allows for flexible installation in control panels and enclosures. This starter is part of the Freedom Series, known for its robust NEMA Size 3 construction and compatibility with adjustable heater packs (sold separately). The open enclosure design provides easy access for maintenance and inspection. The starter is UL Listed and CSA Certified, ensuring compliance with North American safety standards.
- Part Number: AN16KN0V
- Manufacturer: Cutler Hammer
- Series: Freedom Series
- Frame Size: NEMA Size 3
- Amperage Rating: 90A
- Number of Poles: 3
- Maximum Voltage: 600VAC
- Mounting Type: Horizontal
- Coil Voltage: 32V
- Overload Relay: Bimetallic
- Configuration: Non-reversing
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: AN16KN0V
- Manufacturer : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 32
- Coil Voltage Minimum : 32
- Nema Rating : 3
Product Data
- Weight : 15
