- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16KN0N

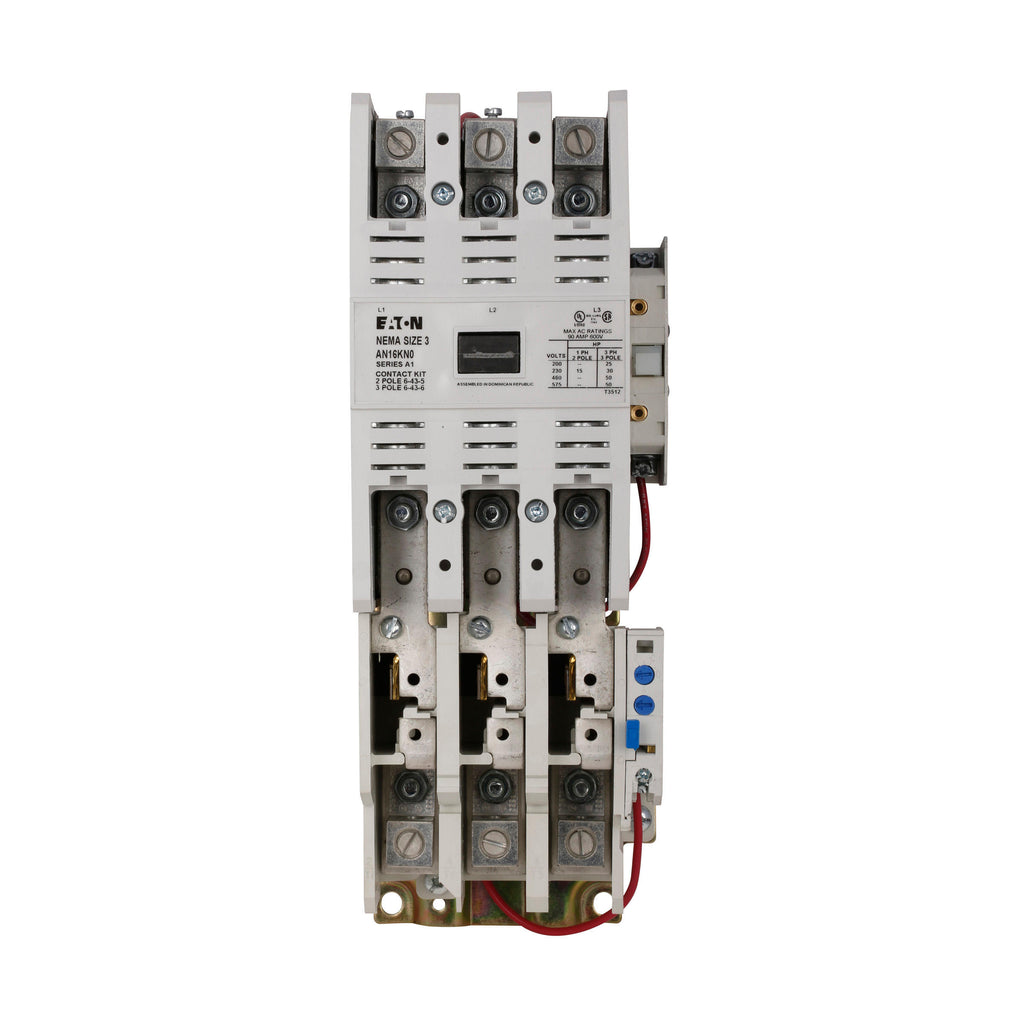

AN16KN0N is a Cutler Hammer Freedom Series NEMA Size 3 motor control starter designed for full voltage non-reversing applications in industrial motor control systems. This three-pole, three-phase starter is rated for 90 amperes and features a C306 bi-metal overload relay with ambient temperature compensation for reliable motor protection. The unit is equipped with a horizontal mounting configuration and comes with adjustable heater packs for flexible amperage settings across different motor sizes.
- Amperage Rating: 90 A
- Phase: Three-phase
- Poles: 3
- NEMA Frame Size: Size 3
- Configuration: Full Voltage Non-Reversing
- Overload Relay: C306 bi-metal with automatic/manual reset
- Horsepower: 25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V
- Mounting: Horizontal
- Certifications: UL Listed, CSA Certified
- Electrical Operations: 3,000,000 at maximum hp ratings
Specifications
- Part Number: AN16KN0N
- Manufacturer : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 550
- Coil Voltage Minimum : 550
- Nema Rating : 3
Product Data
- Weight : 15
