Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Lug Terminal Kit
- Series
- Micrologic
- Frame
- AL
- Poles
- 2
- Barrels
- 2
- Country of origin
- United States
- MCM Size
- 500
- Metal Type
- Aluminum
- Compatible Frames
- LE,LEL,LEP,LX,LXL,LXP,LXI,LXIL,LXIP
- UPC
- 785901060932
- GTIN
- 00785901060932
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Show all specifications (2 more)
- Weight
- 0.28
- Wire Size
- AWG 12...AWG 4 aluminiumAWG 4/0...500 kcmil aluminium/copper
Product description & additional details
AL600LI5

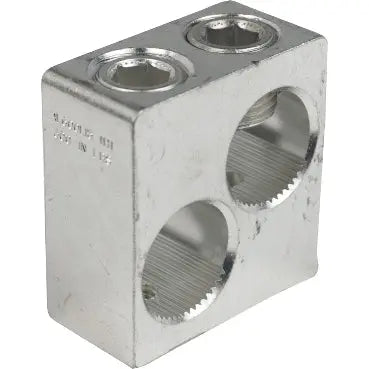

AL600LI5 is a Square D mechanical lug kit designed for use with LE/LX series circuit breakers, providing a secure and reliable connection for large conductors.
This lug kit includes one mechanical lug per set, compatible with LE/LX series circuit breakers, and accepts two 4/0 AWG to 500 kcmil aluminum or copper conductors per lug. The lugs are made of tin-plated aluminum, suitable for both aluminum and copper conductors, and are rated for a maximum breaker current of 600A.
-
Key Specifications
- Manufacturer: Square D
- Part Number: AL600LI5
- Amperage: 600A max
- Poles: 2
- Conductor Size: 4/0 AWG min, 500 kcmil max
- Mounting Type: Mechanical lug (for LE/LX series circuit breakers)
- Series/Frame: LE/LX
- Material: Tin-plated aluminum
- Conductor Type: Accepts aluminum or copper
- Quantity: 1 lug per kit
- Certifications: Not specified in available data
- Voltage, Interrupt Rating, Trip Unit: Not specified in available data
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AL600LI5
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Micrologic
- Type : AL
- Poles : 2
- MCM Size : 500
- Barrels : 2
- Metal Type : Aluminum
- Compatible Frames : LE,LEL,LEP,LX,LXL,LXP,LXI,LXIL,LXIP
Product Data
- UPC : 785901060932
- GTIN : 00785901060932
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.28
- Wire Size : AWG 12...AWG 4 aluminium
AWG 4/0...500 kcmil aluminium/copper
Technical Documents
