Product Info
- Manufacturer:Eaton
- Sub-Category:Lug Terminal Kit
Description
3TA225FD

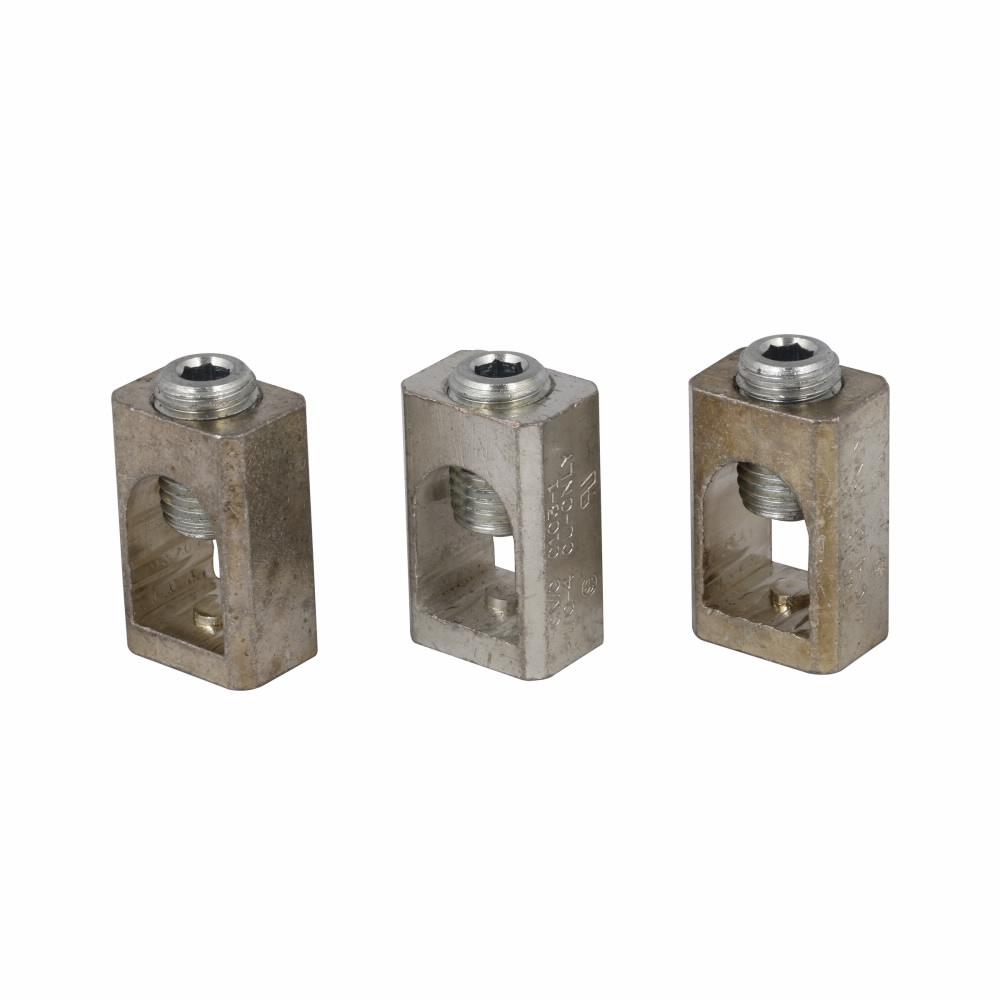

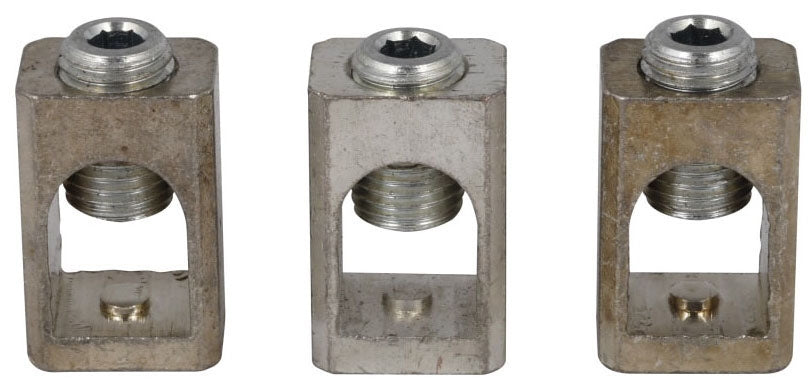

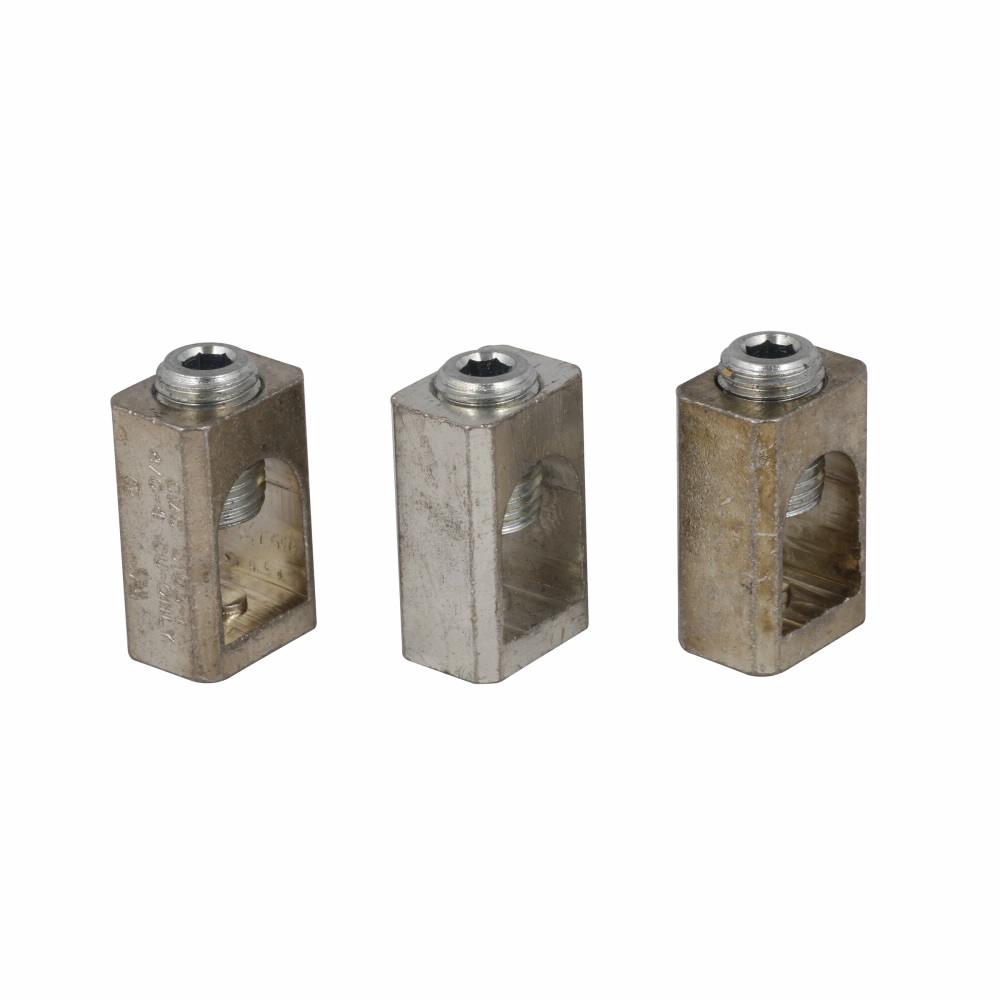

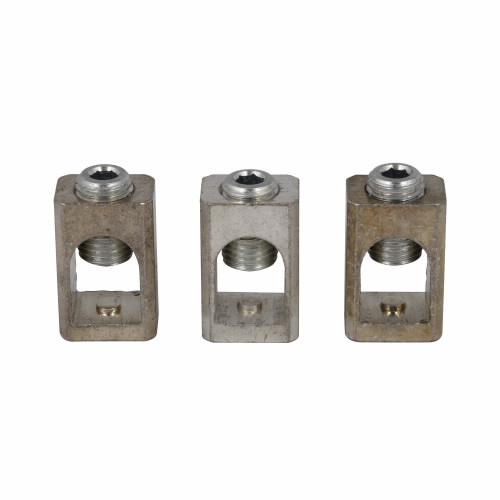

3TA225FD is an Eaton molded case circuit breaker accessory featuring pressure type line and load terminals rated at 225 A for Series C F-Frame.
Eaton 3TA225FD line and load terminals support #4-4/0 AWG Cu/Al wire with a torque rating of 120 lb-in (13.6 Nm), designed specifically for F-Frame Series C molded case circuit breakers including FB, FD, HFD, FDC, FG, and HFDDC frames at 225 A rating. This terminal kit includes 18 pressure type terminals for reliable electrical connections in industrial applications.
Key Specifications
- Part Number: 3TA225FD
- Manufacturer: Eaton
- Amperage Rating: 225 A
- Series: Series C
- Frame: F-Frame
- Type: Line and load terminals
- Terminals: Pressure type line and load
- Wire Size: #4-4/0 AWG Cu/Al
- Quantity: 18
- Torque: 120 lb-in (13.6 Nm)
- Certifications: UL Listed
- UPC: 786679222409
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3TA225FD
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Series C
- Type : C
- Voltage : 600VAC
- Amperage : 225
- MCM Size : 212
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM
Product Data
- UPC : 786679222409
- GTIN : 00786679222409
- Country of Origin : United States
- Dimensions : 2.2 in x 0.5 in x 1.2 in (Length/Depth x Height x Width)
- Weight : 0.09
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : AWG 4 to AWG 4/0, Cu/Al
