Description
3RT2526-1BP40

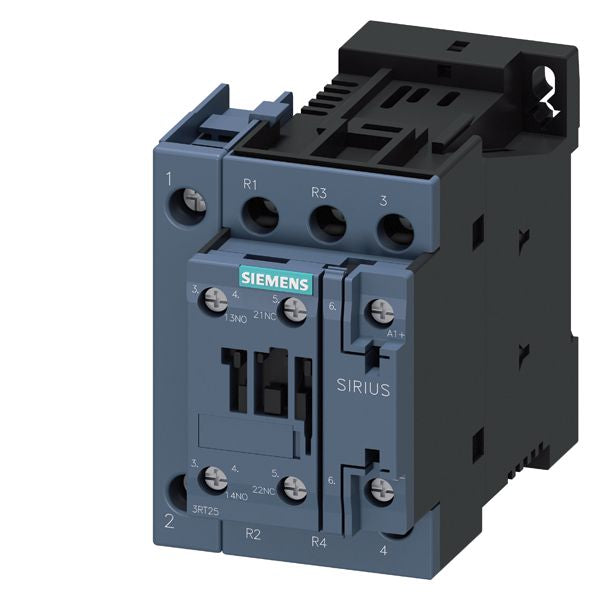

3RT2526-1BP40 is a Siemens motor control power contactor designed for reliable switching in industrial applications.
This 4-pole contactor features a 25 ampere rating with an AC-3 utilization category, suitable for motors up to 11 kW at 400 V. It operates with a 230 V DC coil voltage and includes main contacts configured as 2 normally open (NO) plus 2 normally closed (NC), along with auxiliary contacts of 1 NO and 1 NC. The device uses screw terminals and is sized S0, optimized for DIN rail or vertical mounting.
- Key Specifications
- Amperage: 25 A
- Coil Voltage: 230 V DC
- Number of Poles: 4
- Power Rating: 11 kW at 400 V
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: 35 mm DIN Rail / Vertical Mount
- Terminal Type: Screw Terminals
- Size/Frame: S0
- Part Number: 3RT2526-1BP40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 230
- UPC : 785901742784
- GTIN : 00785901742784
- Weight : 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
