Description
3RT2526-1AF00

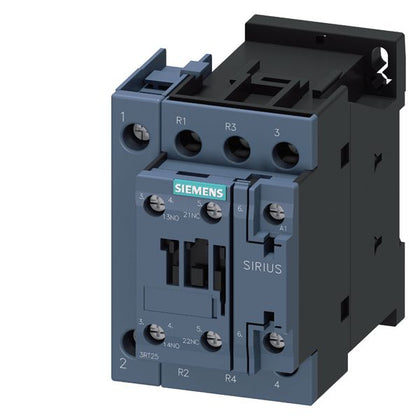

3RT2526-1AF00 is a Siemens power contactor designed for AC-3 duty cycle applications with a rated current of 25 amperes at 400 volts, delivering 11 kilowatts of switching capacity. This four-pole contactor features a 110 volt AC coil operating at 50 Hz and includes main contacts configured as 2 NO + 2 NC (2 normally open and 2 normally closed) with auxiliary contacts of 1 NO + 1 NC for flexible control logic integration. The contactor utilizes screw terminal connections for secure wiring and operates reliably across a temperature range of -25°C to 60°C, with a maximum switching voltage rating of 690 VAC.
- Rated Current: 25 A AC-3
- Power Rating: 11 kW at 400 V
- Poles: 4-pole configuration
- Coil Voltage: 110 V AC, 50 Hz
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Termination: Screw Terminal
- Operating Temperature: -25°C to 60°C
- Maximum Switching Voltage: 690 VAC
Specifications
- Part Number: 3RT2526-1AF00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 110
Product Data
- UPC : 662643916904
- GTIN : 00662643916904
- Weight : 1
