Description
3RT2526-1BG40

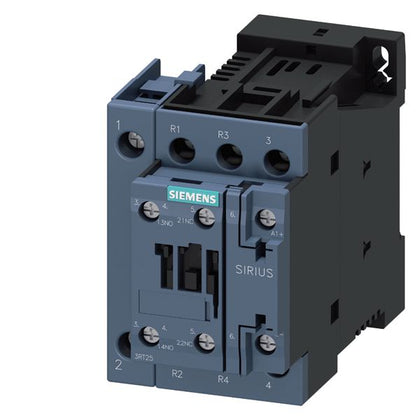

3RT2526-1BG40 is a Siemens SIRIUS 3RT25 series motor contactor designed for reliable switching and control of three-phase motors in industrial applications. This 4-pole contactor features a 125 VDC coil, 25 A rated current, and is suitable for AC-3 duty up to 11 kW at 400 V. The device includes 2 normally open and 2 normally closed main contacts, plus 1 NO and 1 NC auxiliary contacts, all with screw terminals for secure wiring. The compact S0 frame size allows for efficient DIN rail mounting in control panels. This contactor is engineered for durability and ease of installation, supporting both horizontal and vertical mounting on 35 mm DIN rails. It is ideal for motor control circuits requiring frequent switching and reliable auxiliary signaling. The robust construction ensures long service life in demanding environments.
- Part Number: 3RT2526-1BG40
- Manufacturer: Siemens
- Series: SIRIUS 3RT25
- Frame Size: S0
- Rated Current: 25 A
- Rated Voltage: 125 VDC coil
- Number of Poles: 4
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: DIN Rail (35 mm)
- Terminal Type: Screw
- Application: Motor Control, AC-3 Duty
Specifications
- Part Number: 3RT2526-1BG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 125
Product Data
- UPC : 004089263516
- GTIN : 00040892635164
- Weight : 1
