Description

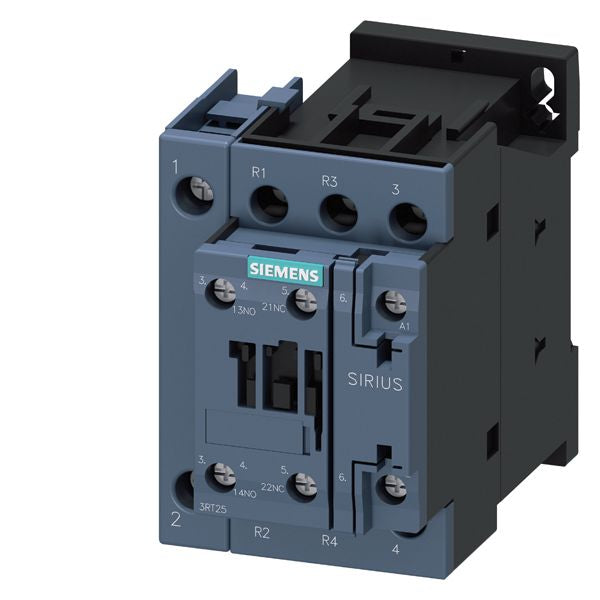

3RT2526-1AC20
3RT2526-1AC20 is a Siemens Sirius power contactor designed for AC-3 duty cycle applications with 25 A rated current and 11 kW power handling at 400 V.
This 4-pole contactor features 2 NO + 2 NC main contacts with 1 NO + 1 NC auxiliary contacts integrated into the design. The unit operates on 24 V AC coil voltage at 50/60 Hz and is equipped with screw terminals for secure installation. Size S0 frame provides compact integration into control panels and motor starter assemblies.
-
Key Specifications
- Part Number: 3RT2526-1AC20
- Manufacturer: Siemens
- Rated Current: 25 A
- Rated Power: 11 kW at 400 V
- Configuration: 4-pole
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Coil Voltage: 24 V AC, 50/60 Hz
- Terminal Type: Screw Terminal
- Frame Size: S0
- Duty Cycle: AC-3
- Operating Temperature: -25 degrees C to 60 degrees C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT2526-1AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 24
Product Data
- UPC : 004089263514
- GTIN : 00040892635140
- Weight : 1
