Description
3RT2526-1AP00

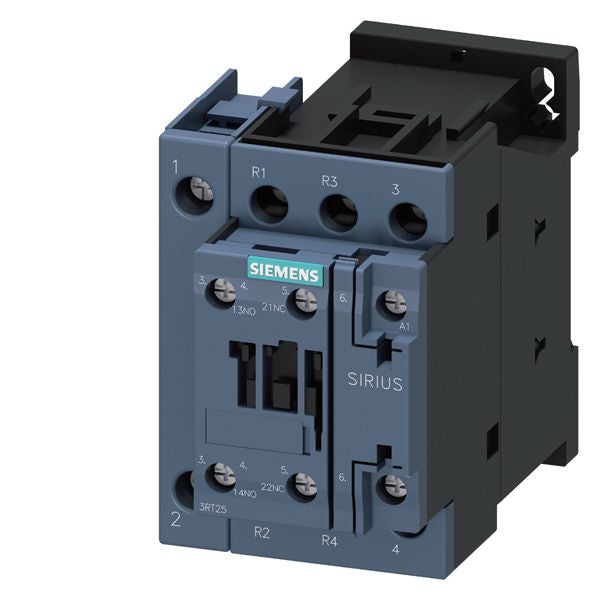

3RT2526-1AP00 is a Siemens power contactor designed for reliable motor control applications. This device features a 4-pole configuration with 2 normally open (NO) and 2 normally closed (NC) main contacts, plus 1 NO and 1 NC auxiliary contacts, making it suitable for a wide range of industrial control circuits. This contactor is rated for AC-3 duty at 25 amperes and 11 kW at 400 volts, with a control voltage of 230 volts AC at 50 Hz. It is built to the S0 frame size and uses screw terminals for secure wiring connections. The robust design supports frequent switching operations and is ideal for motor starting, stopping, and reversing in demanding environments.
- Manufacturer: Siemens
- Part Number: 3RT2526-1AP00
- Amperage: 25 A
- Voltage: 400 V AC (motor), 230 V AC (control)
- Poles: 4
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: Screw terminal
- Frame Size: S0
- Frequency: 50 Hz
- Duty: AC-3
- Power Rating: 11 kW
Specifications
- Part Number: 3RT2526-1AP00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT25
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 230
Product Data
- UPC : 066264391691
- GTIN : 00662643916911
- Weight : 1
