Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
21037R

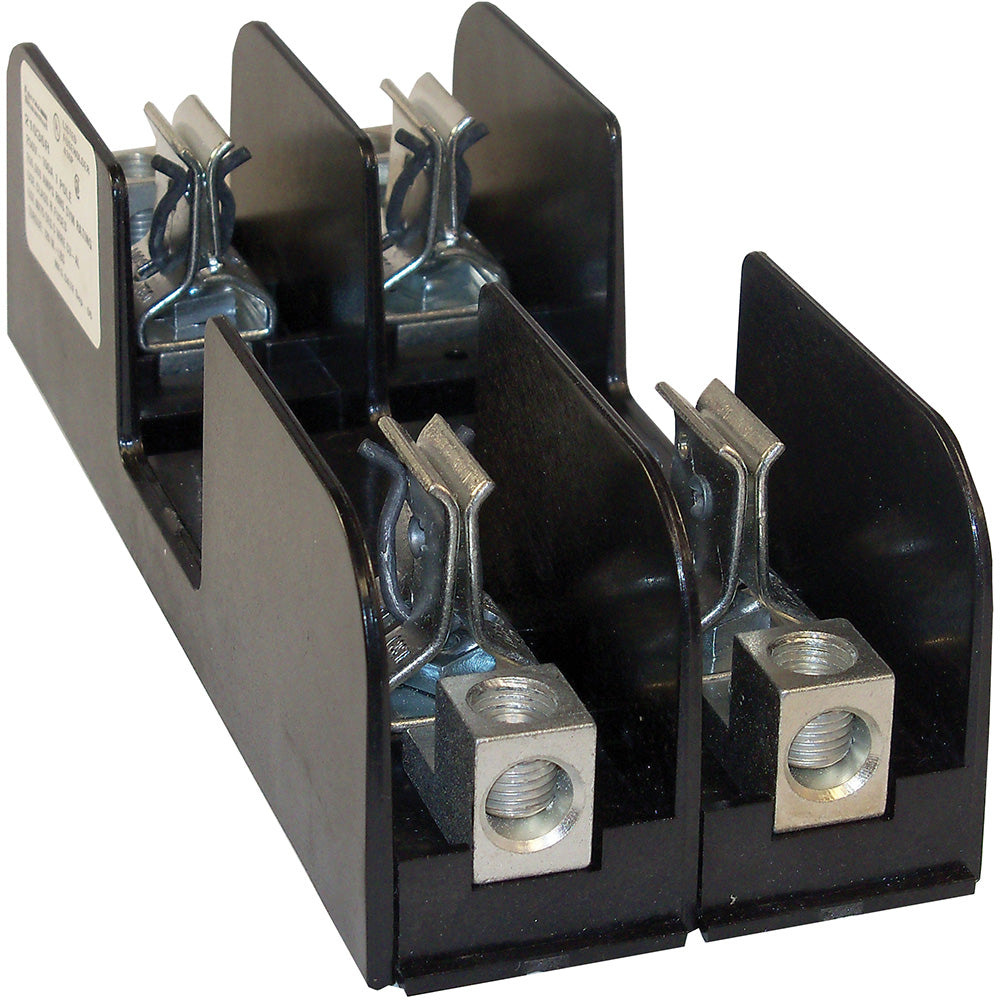

21037R is a Mersen 2 pole fuse block designed for Class R fuses, rated at 100 amps and 250 volts AC.21037R fuse block features spring reinforced clips and box lugs suitable for aluminum and copper conductors from 2/0 to #6. It supports UL Class RK1 and RK5 fuses and has an interrupting rating of 200,000 AIC RMS. The fuse block is UL listed, UL recognized, and CSA certified, meeting UL 4248 requirements.
- Amperage: 100 Amps
- Voltage Rating: 250 Volts AC/DC
- Poles: 2 Pole
- Fuse Class: Class R (UL Class RK1 and RK5 compatible)
- Mounting Type: Box Lugs for Al/Cu 2/0 - #6
- Interrupting Rating: 200,000 AIC RMS
- Clip Type: Spring Reinforced
- Material: Molded Glass-Filled Polycarbonate (GFPC)
- Certifications: UL Listed (Guide IZLT, File E52283), UL Recognized Component, CSA Certified (Class 6225, File 32169)
- Suitable for Industrial and Power Distribution Applications
Specifications
- Part Number: 21037R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 210
- Voltage : 250
- Amperage : 100
Product Data
- UPC : 78200166465
- GTIN : 00782001664657
- Country of Origin : Mexico
- Dimensions : 3.20 in x 8.33 in x 2.28 in
- Weight : 1.25 lb
- Certification : CSA Certified, UL Listed
