Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Bussmann
- Sub-Category
- Fuse Block
- Series
- CH Series
- Frame
- CHCC
- Rated current
- 30
- Voltage
- 600V
- Country of origin
- China
- Section
- Fuse Holder
- UPC
- 05171236267
- GTIN
- 00051712362672
- Dimensions
- 1.38 in x 2.91 in x 3.28 in (Length/Depth x Height x Width)
- Weight
- 0.22
- Certification
- UL Listed
Product description & additional details
CHCC2DU

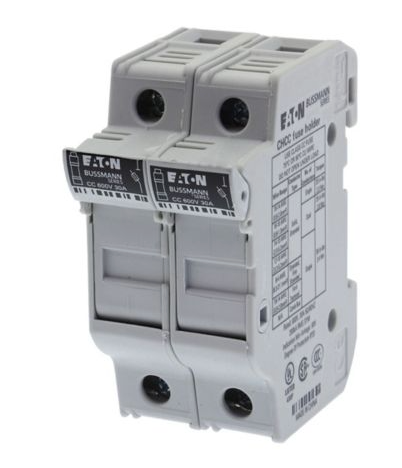

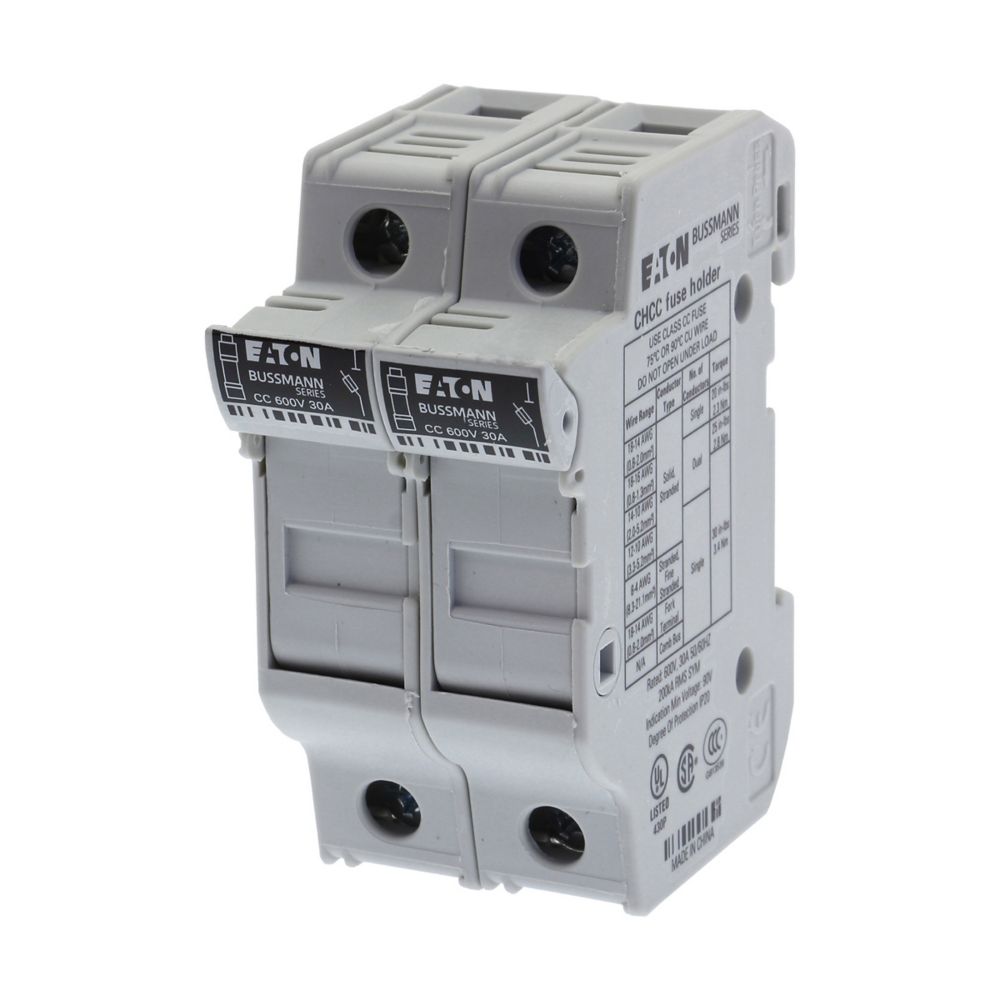

CHCC2DU is a two-pole, modular DIN rail fuse holder from Eaton Bussmann, designed for reliable circuit protection in industrial applications.
This Eaton Bussmann Series CHCC fuse holder accommodates 10mm x 38mm Class CC fuses, offering a 30 Amp current rating and 48V DC voltage rating. It features finger-safe, IP20 construction for enhanced safety, and is suitable for use with solid, stranded, or fine stranded wire. The holder is rated for an operating temperature range of -20°C to 120°C and is UL Listed for high short-circuit current ratings. Optional open fuse indication and remote PLC modules are available for advanced monitoring.
-
Key Specifications
- Part Number: CHCC2DU
- Manufacturer: Eaton Bussmann
- Amperage: 30A
- Voltage: 48V DC
- Poles: 2
- Mounting Type: DIN Rail
- Interrupt Rating: High SCCR, UL Listed
- Series/Frame: CHCC
- Trip Unit: Not applicable (fuse holder)
- Certifications: UL Listed, IP20 finger-safe
- Fuse Type: Class CC, 10mm x 38mm
- Operating Temperature: -20°C to 120°C
- Wire Compatibility: 75°C or 90°C solid, stranded, fine stranded
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CHCC2DU
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Section : Fuse Holder
- Family : CH Series
- Type : CHCC
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 05171236267
- GTIN : 00051712362672
- Country of Origin : China
- Dimensions : 1.38 in x 2.91 in x 3.28 in (Length/Depth x Height x Width)
- Weight : 0.22
- Certification : UL Listed
