Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Fuse Block
- Series
- P243 Series
- Frame
- P243
- Rated current
- 60
- Voltage
- 500V
- UPC
- 782001974190
- GTIN
- 00782001974190
- Weight
- 0.36 lb
Product description & additional details

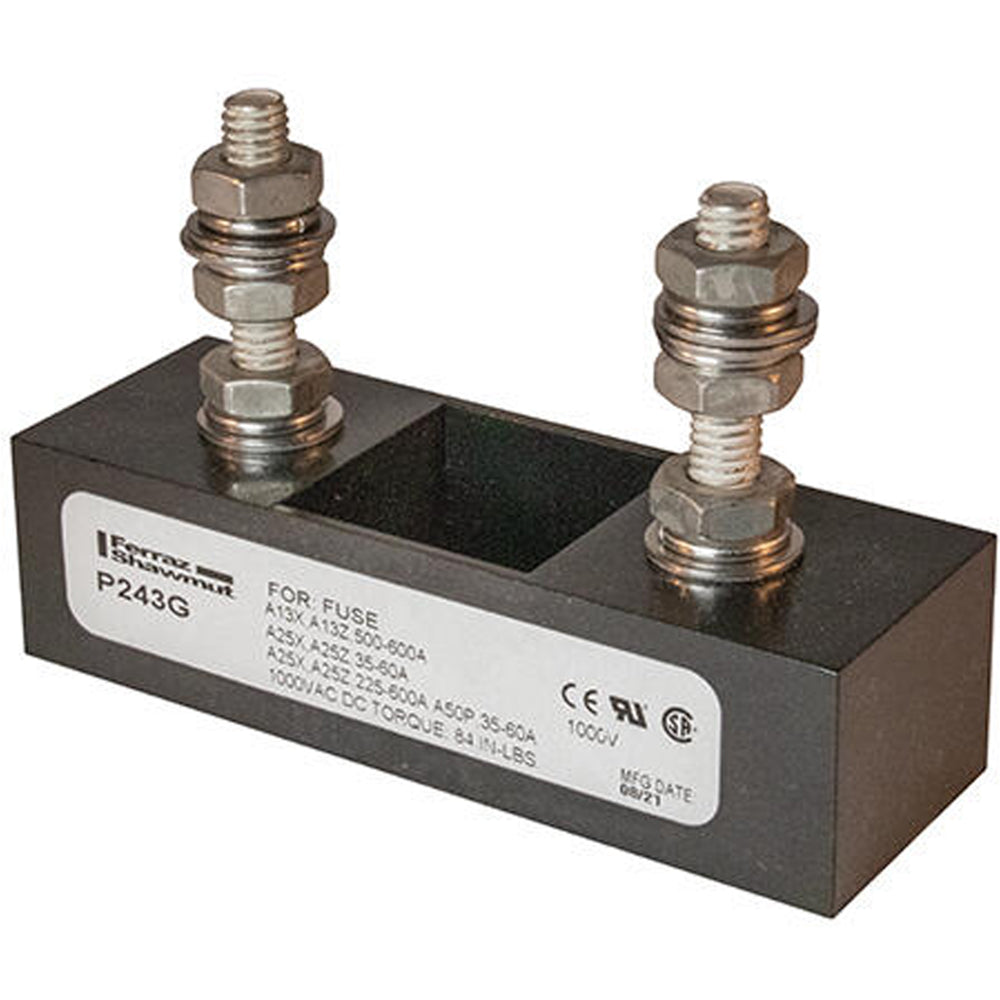

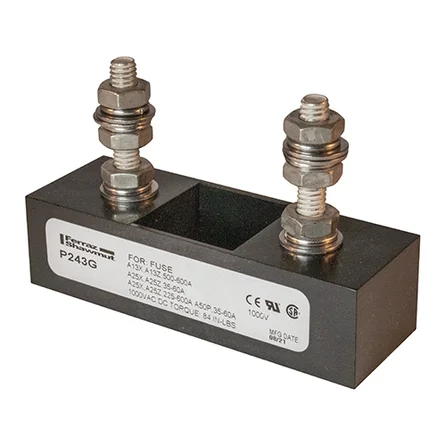

P243G
P243G is a 600A, 1000VAC 1-pole semiconductor fuse block designed for secure bolt-in mounting of Form 101 fuses. This fuse block features a glass-filled polycarbonate body with tin or zinc-plated studs and mounting hardware, providing reliable electrical protection for motor control and power distribution applications. It supports up to 600 amperes and is rated for 1000 volts AC and DC, with a stud center-to-center spacing of 2.44 inches. The P243G is UL Recognized and CSA Certified as a component, suitable for use with AMP-TRAP® Form 101 fuses. It is designed for stud-type fuse mounting with a torque rating of 360 in-lbs on 1/2-13 studs.
- Amperage: 600A
- Voltage Rating: 1000VAC / 1000VDC
- Poles: 1
- Fuse Type: Form 101 Semiconductor Fuse
- Mounting Type: Bolt-in Stud Mount
- Stud Size: 1/2-13
- Stud Center-to-Center: 2.44 inches
- Material: Glass-filled Polycarbonate
- Approvals: UL Recognized Component, CSA Certified
- Torque Rating: 360 in-lbs
- Clip Type Voltage Rating: 1200VAC or less
Specifications
- Part Number: P243G
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : P243 Series
- Type : P243
- Voltage : 500
- Amperage : 60
Product Data
- UPC : 782001974190
- GTIN : 00782001974190
- Weight : 0.36 lb
