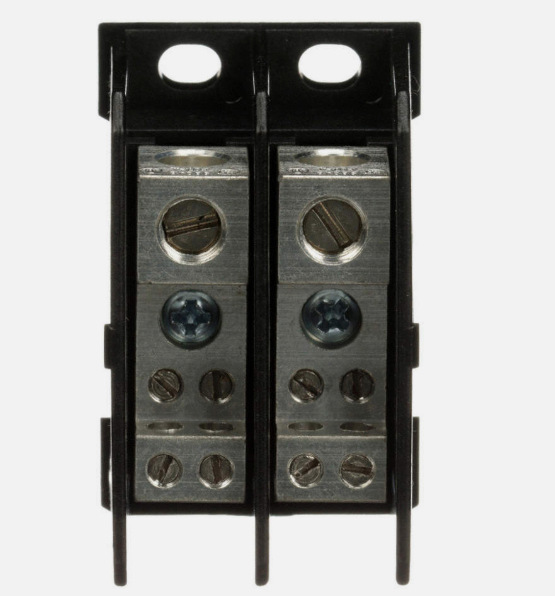

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Fuse Block
- Series
- Linergy
- Country of origin
- United States
- UPC
- 785901156956
- GTIN
- 00785901156956
- Dimensions
- 2.29 in (58.17 mm) x 1.48 in (37.59 mm) x 1.62 in (41.15 mm) (Height x Width x Depth)
- Weight
- 0.15 lb
- Certification
- CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
Product description & additional details
9080LBA261104
9080LBA261104 is a Schneider Electric 2-pole power distribution block designed for reliable electrical circuit connections.
This Linergy series fuse block supports 115 amps for copper conductors and 90 amps for aluminum conductors, rated for 600 volts AC/DC. It features 1 line input and 4 load outputs, with tin-plated aluminum lugs for enhanced conductivity and corrosion resistance. The block has a short circuit current rating of 65 kA, ensuring safety and durability in demanding applications.
- Key Specifications
- Manufacturer: Schneider Electric
- Part Number: 9080LBA261104
- Category: Fuse Block / Power Distribution Block
- Poles: 2
- Line Inputs: 1
- Load Outputs: 4
- Amperage: 115A Copper, 90A Aluminum
- Voltage Rating: 600V AC/DC
- Short Circuit Current Rating: 65 kA
- Mounting Type: Miniature Power Distribution Block
- Series: Linergy
- Lug Material: Tin-Plated Aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9080LBA261104
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Linergy
Product Data
- UPC : 785901156956
- GTIN : 00785901156956
- Country of Origin : United States
- Dimensions : 2.29 in (58.17 mm) x 1.48 in (37.59 mm) x 1.62 in (41.15 mm) (Height x Width x Depth)
- Weight : 0.15 lb
- Certification : CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
