UFC3150G

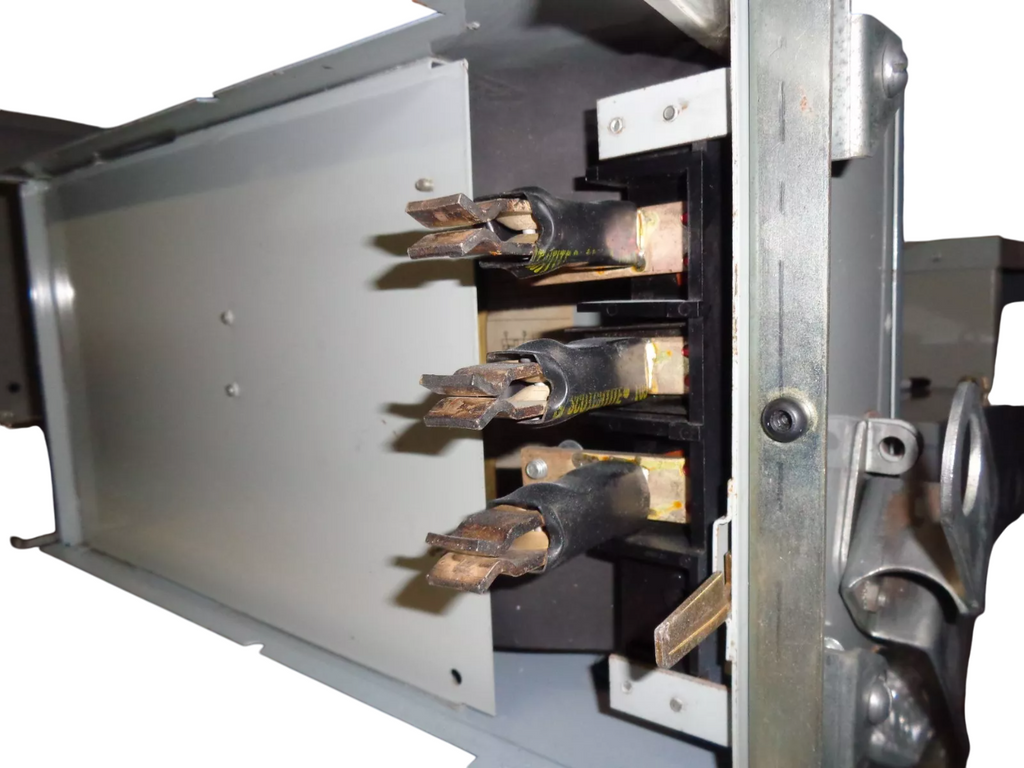

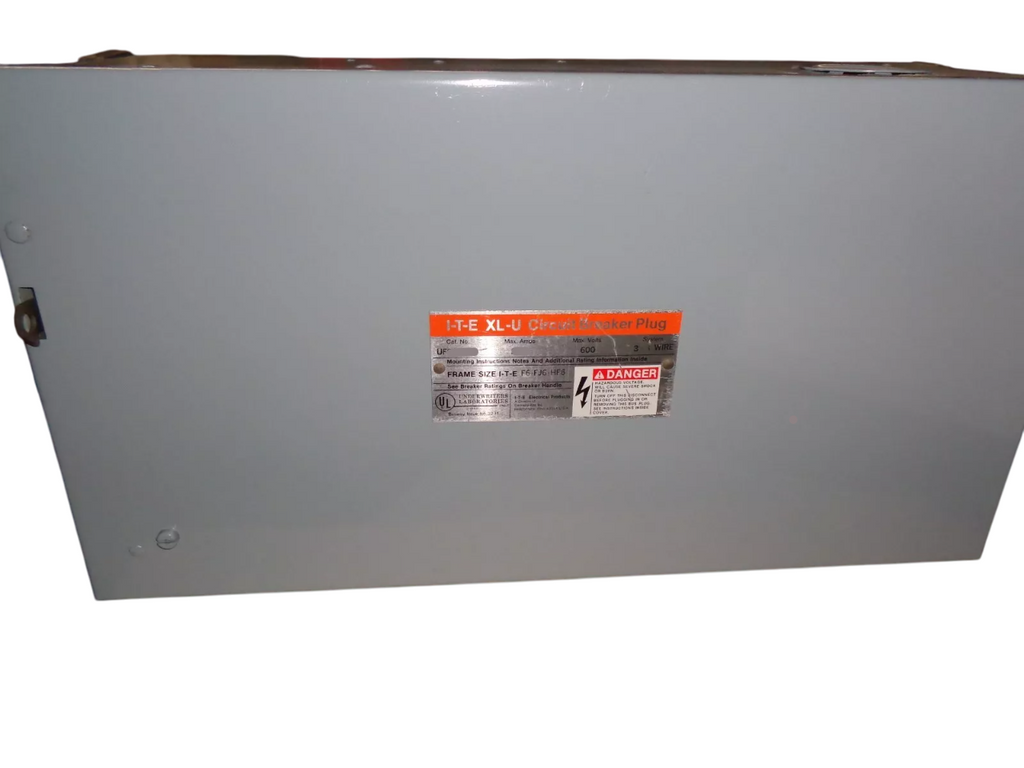

UFC3150G is a Siemens 150 Amp, 600 Volt, 3-pole breaker type bus plug designed for reliable power distribution in busway systems.This bus plug features a breaker type design compatible with Siemens FD frame circuit breakers, suitable for 3-phase, 3-wire applications at 600 volts. It provides a 150 ampere rating with a 35kA interrupt rating at 480 volts, ensuring robust short circuit protection. The unit is mechanically interlocked with the busway housing to prevent installation or removal while energized, enhancing safety. It is designed for bolt-on mounting and can be used in horizontal or vertical busway configurations.
- Amperage: 150 Amps
- Voltage: 600 Volts
- Poles: 3
- Type: Breaker Type Bus Plug
- Compatible Frame: FD Frame Circuit Breaker
- Interrupt Rating: 35kA at 480V
- Mounting: Bolt-on to busway housing
- Phase/Wire: 3-phase, 3-wire
Specifications
- Part Number: UFC3150G
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : XL-U
- Type : UFC
- Voltage : 600
- Amperage : 150
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 3
- Compatible Frames : FD
Product Data
- Weight : 55
