2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD63B150

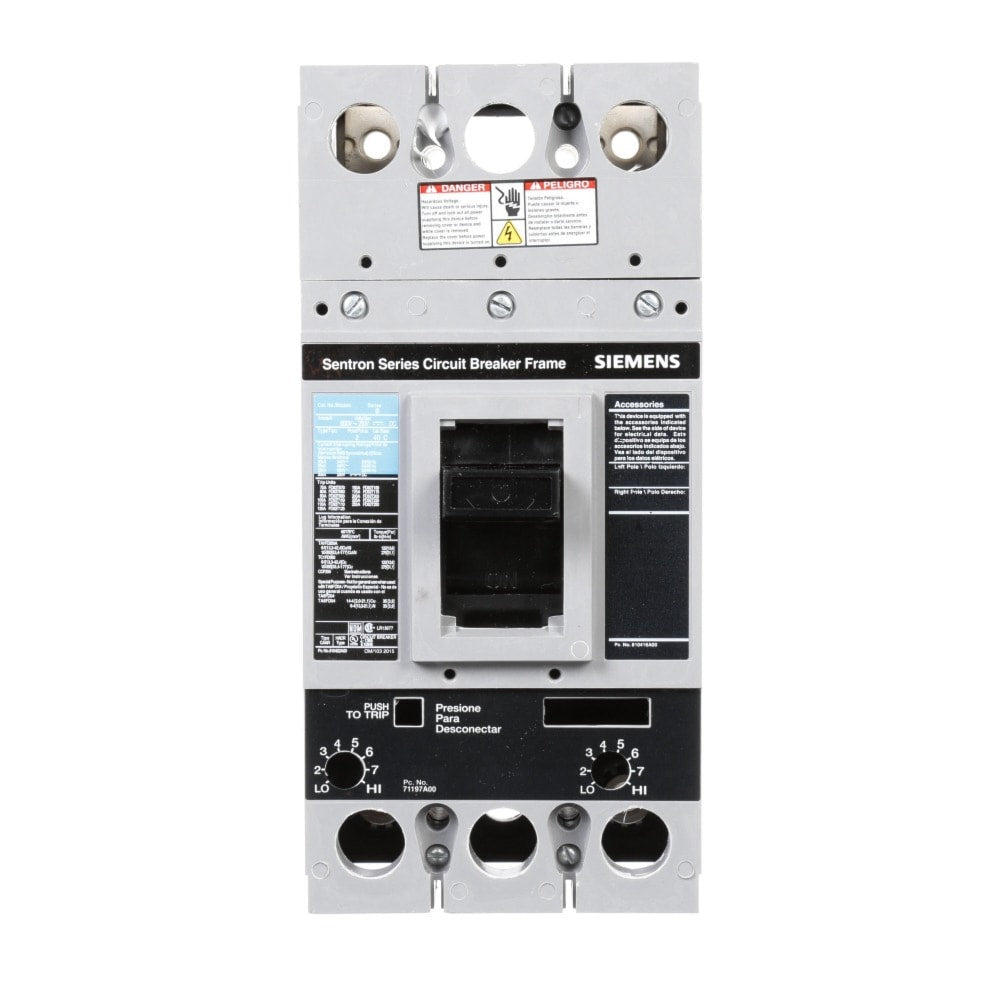

FD63B150 is a Siemens Sentron molded case circuit breaker designed for industrial power distribution applications. This 3-pole breaker features a 150-ampere rating at 600 volts AC and utilizes the FD frame design with bolt-on connection terminals. The unit comes equipped with an interchangeable trip unit and standard breaking capacity, making it suitable for reliable overcurrent protection in commercial and industrial settings.
- Amperage Rating: 150A
- Voltage Rating: 600V AC (50/60Hz)
- Poles: 3-Pole
- Frame Type: FD Frame
- Connection: Bolt-On with Lugs
- Trip Unit: Interchangeable
- Interrupt Rating: 22kA @ 600V
- Temperature Rating: 40 Degrees C Standard
- Dimensions: 7 in L x 6 in W x 11 in H
- Enclosure Compatibility: NEMA Type 3R
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FD63B150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211476
- GTIN : 00783643211476
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 9.017
- Certification : UL, CSA, IEC
