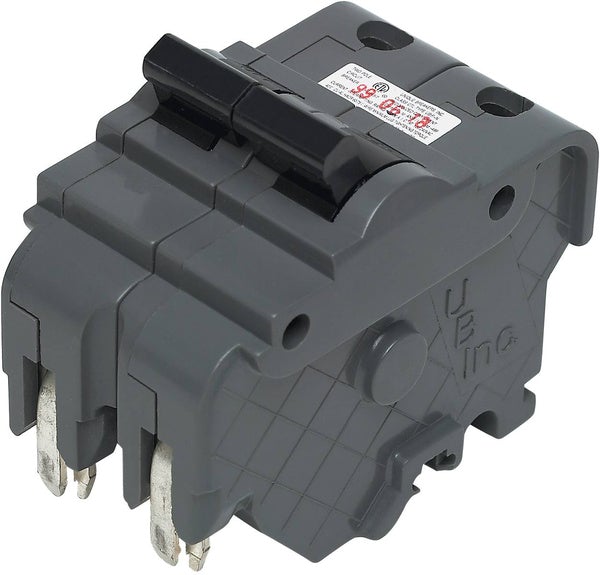

UBIF260N - Connecticut Electric 2-Pole 60 Amp 120/240V Circuit Breaker Thermal Magnetic Trip 10kA Interrupt

UBIF260N

UBIF260N is a 2-pole, 60 amp circuit breaker designed for 120/240V applications, providing reliable protection with a thermal/magnetic trip unit.This Connecticut Electric breaker is a thick replacement type compatible with Federal Pacific Electric type NA load centers. It features a 10,000 AIC interrupt rating, plug-in mounting style, and is ETL listed for safety and performance.

Key Specifications
• Amperage: 60 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC
• Trip Unit: Thermal/Magnetic
• Series/Frame: UBIF
• Certifications: ETL Listed
• Replacement for Federal Pacific Electric type NA (thick) breakers
• Operating Temperature: 40 Celsius

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIF260N
• Manufacturer : CONNECTICUT-ELECTRIC, INC.
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIFN
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 70A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925019445
• GTIN : 00094925019445
• Country of Origin : China
• Dimensions : 2 in x 3.36 in x 3.36 in
• Weight : 2 lb
• Panel Type : Federal Pacific Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
