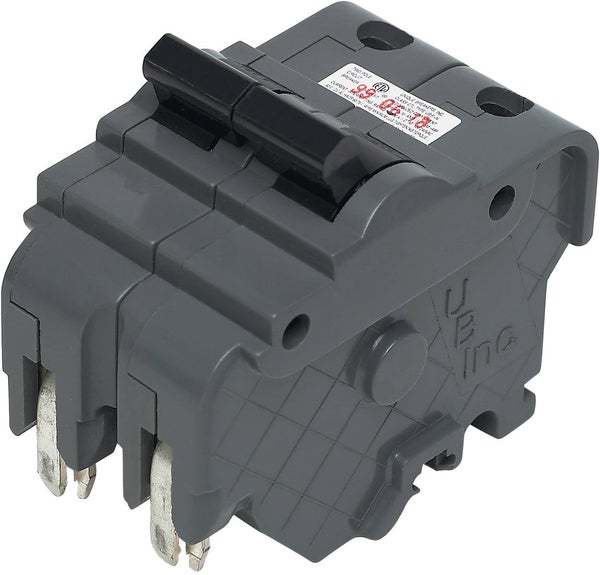

UBIF240N - Connecticut Electric 2-Pole 40A 120/240V Circuit Breaker Type UBIF Thick Series

UBIF240N

UBIF240N is a 2-pole, 40 amp circuit breaker by Connecticut Electric designed for 120/240 volt applications.UBIF240N is a replacement circuit breaker for Federal Pacific Electric type NA (thick) breakers, classified and approved for use in Federal Pacific load centers. It features a common trip unit, 10,000 AIC interrupt rating, and is ETL listed for residential use.

Key Specifications
• Manufacturer: Connecticut Electric
• Part Number: UBIF240N
• Amperage: 40A
• Voltage: 120/240V
• Poles: 2
• Series/Frame: UBIF Thick
• Interrupt Rating: 10,000 AIC at 120/240V
• Trip Unit: Common Trip
• Mounting Type: Plug-In
• Certifications: ETL Listed
• Application: Residential, Federal Pacific load centers replacement
• Country of Origin: China

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIF240N
• Manufacturer : Connecticut Electric
• Brand : Ferraz Shawmut
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIFN
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 70A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925019421
• GTIN : 00094925019421
• Country of Origin : China
• Dimensions : 2 in x 3.36 in x 3.36 in
• Weight : 2
• Panel Type : Federal Pacific Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
