UBIF220N - Connecticut Electric 20 Amp 2-Pole 240V Molded Case Circuit Breaker 10kAIC Thick Type UBIF

UBIF220N

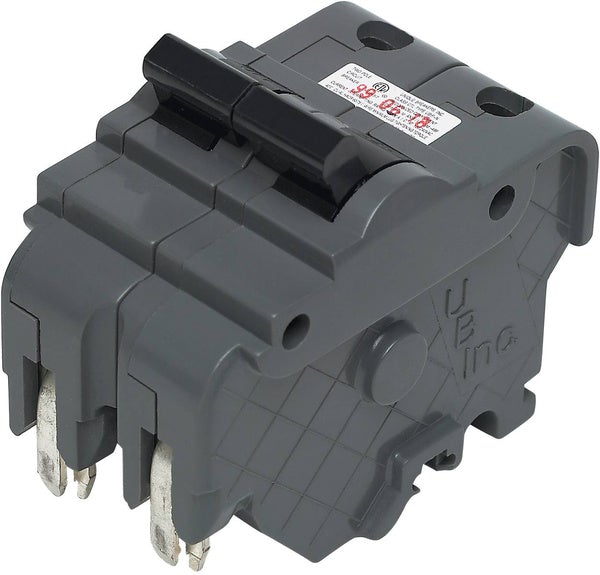

UBIF220N is a 20 Amp, 2-pole molded case circuit breaker from Connecticut Electric designed for use in Federal Pacific Electric type NA (thick) breaker load centers.

This circuit breaker operates at 240 volts AC with a 10,000 AIC interrupt rating. It is ETL listed and classified for replacement in Federal Pacific Electric panels, featuring a bolt-on mounting style and a robust thick frame design. The UBIF220N provides reliable overcurrent protection with a thermal-magnetic trip unit and is suitable for residential and commercial electrical distribution applications.

• Manufacturer: Connecticut Electric
• Part Number: UBIF220N
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10,000 AIC
• Mounting Type: Bolt-on (Thick Frame)
• Series/Frame: UBIF Thick Type
• Trip Unit: Thermal-Magnetic
• Certifications: ETL Listed
• Replacement for Federal Pacific Electric type NA breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIF220N
• Manufacturer : Connecticut Electric
• Brand : Connecticut Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIFN
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 70A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925019407
• GTIN : 00094925019407
• Country of Origin : China
• Dimensions : 2 in x 3.36 in x 3.36 in
• Weight : 2
• Panel Type : Federal Pacific Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
