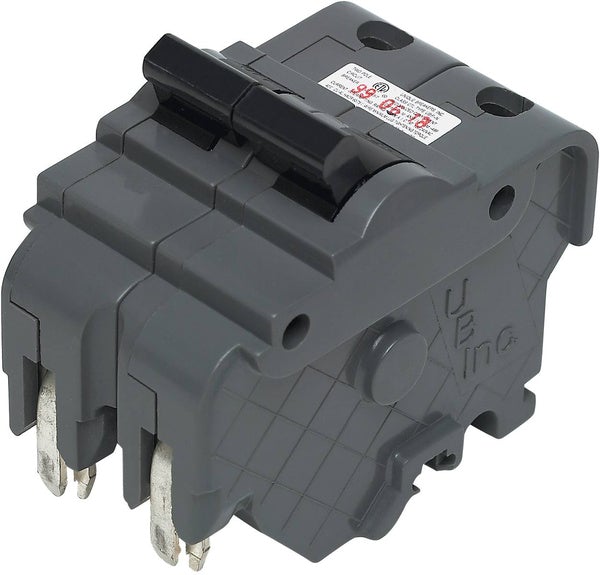

UBIF215N - Connecticut Electric 15 Amp 2-Pole 120/240V Plug-In Circuit Breaker Type UBIF Thick Series

UBIF215N

UBIF215N is a 15 Amp 2-Pole plug-in circuit breaker from Connecticut Electric designed for use in Federal Pacific load centers.This Type UBIF Thick Series breaker features a common trip mechanism, is HACR rated, and supports 120/240 VAC operation with a 10kA interrupt rating. It is a direct replacement for Federal Pacific Electric type NA (thick) breakers, ensuring compatibility and reliable performance.

• Amperage: 15 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC
• Series/Frame: UBIF Thick Series
• Trip Unit: Common Trip
• Certifications: HACR Rated
• Compatible with Federal Pacific load centers
• Replacement for Federal Pacific Electric type NA (thick) breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UBIF215N
• Manufacturer : Connecticut Electric
• Brand : Ferraz Shawmut
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Thick Series
• Type : UBIFN
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 70A/HACR
• Temp Rating : Minimum Operating Temp 0 Degrees F Max. Operating Temp.250 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 094925418118
• GTIN : 00094925418118
• Country of Origin : China
• Dimensions : 2 in x 3.36 in x 3.36 in
• Weight : 2
• Panel Type : Federal Pacific Load Centers
• Standards : ETL Listed, UL Listed
• Certification : ETL Listed, UL Listed
