Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD32Y225

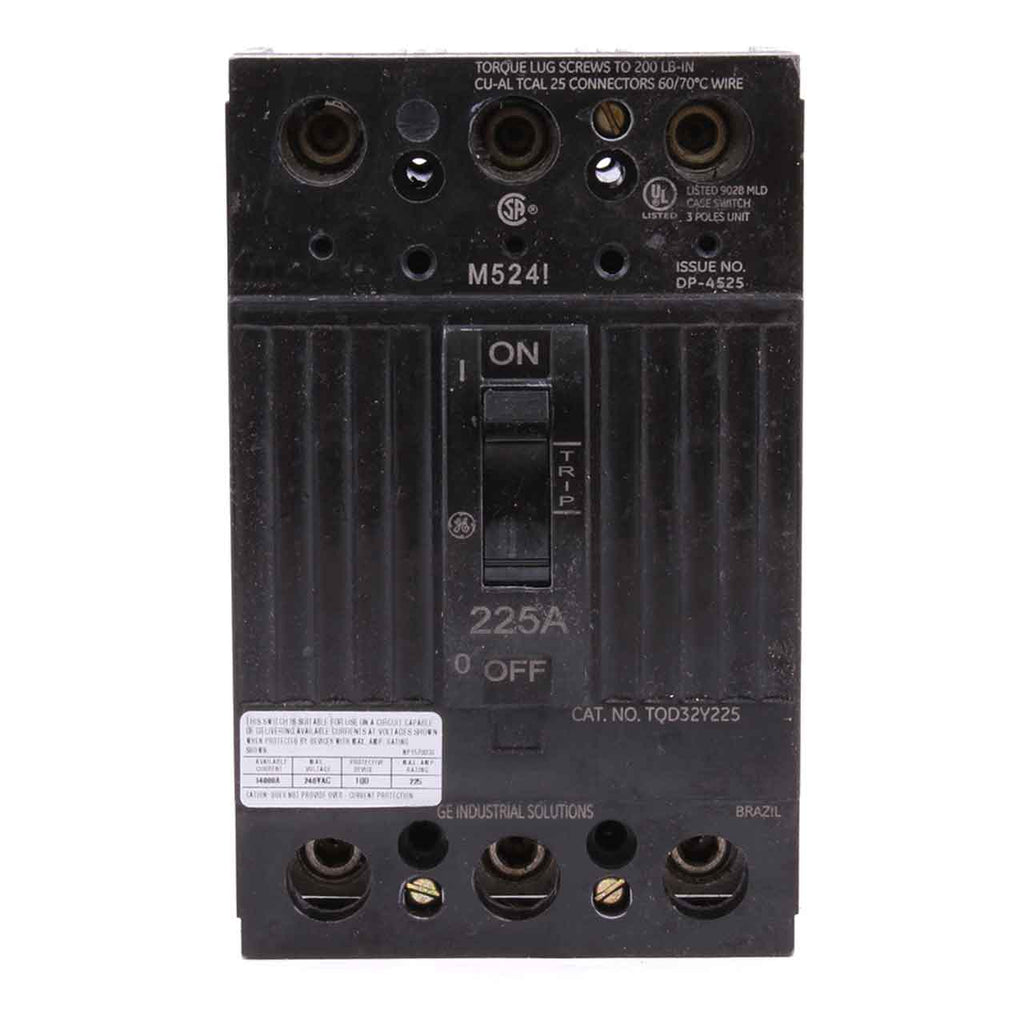

TQD32Y225 is a General Electric 3 pole, 225 amp, 240 volt molded case circuit breaker designed for bolt-on mounting.This circuit breaker is part of GE's Q-Line family, featuring a 14,000 amp interrupting rating and thermal magnetic trip unit for reliable protection. It supports line and load lug terminals and is suitable for industrial and commercial electrical distribution.
- Amperage: 225 A
- Voltage Rating: 240 V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 14,000 A (14kA)
- Series/Frame: Q-Line
- Trip Unit: Thermal Magnetic
- Terminal Type: Line and Load Lug
- Certifications: UL Listed
Specifications
- Part Number: TQD32Y225
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 14kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Non-Automatic
Product Data
- UPC : 783164055078
- GTIN : 00783164055078
- Weight : 1
- Certification : UL Listed
