Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD32100

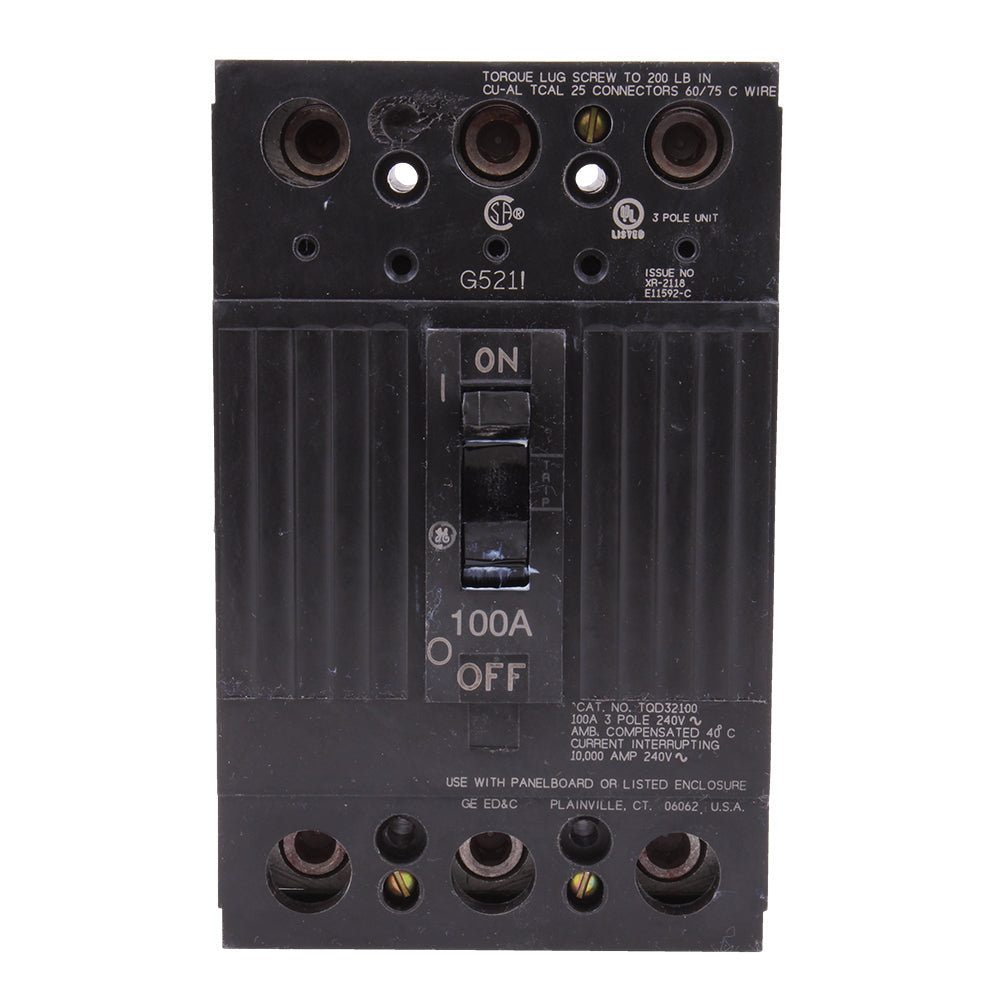

TQD32100 is a General Electric 3 pole, 100A, 240V molded case circuit breaker with a 10kA interrupting rating and bolt-on mounting. This TQD series breaker features thermal magnetic protection with LI (long-time and instantaneous) trip functions and is designed for reliable power distribution in commercial and industrial applications. This compact molded case circuit breaker is built for durability and safety, featuring non-interchangeable trip units and line and load side lug terminals. It is suitable for use in panelboards and switchgear requiring a compact, high-performance solution.
- Part Number: TQD32100
- Manufacturer: General Electric
- Series/Frame: TQD
- Amperage: 100A
- Voltage: 240V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA @ 240V
- Protection Type: Thermal Magnetic
- Functions: LI (Long-Time and Instantaneous Trip)
- Terminal Connection: Line & Load Side Lug
- Temperature Rating: 40°C
Specifications
- Part Number: TQD32100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164143881
- GTIN : 00783164143881
- Weight : 3
