TQD32225 General Electric 225A 3-Pole 240V Q-Line Molded Case Circuit Breaker

TQD32225

TQD32225 General Electric 225A 3-Pole 240V Q-Line Molded Case Circuit Breaker

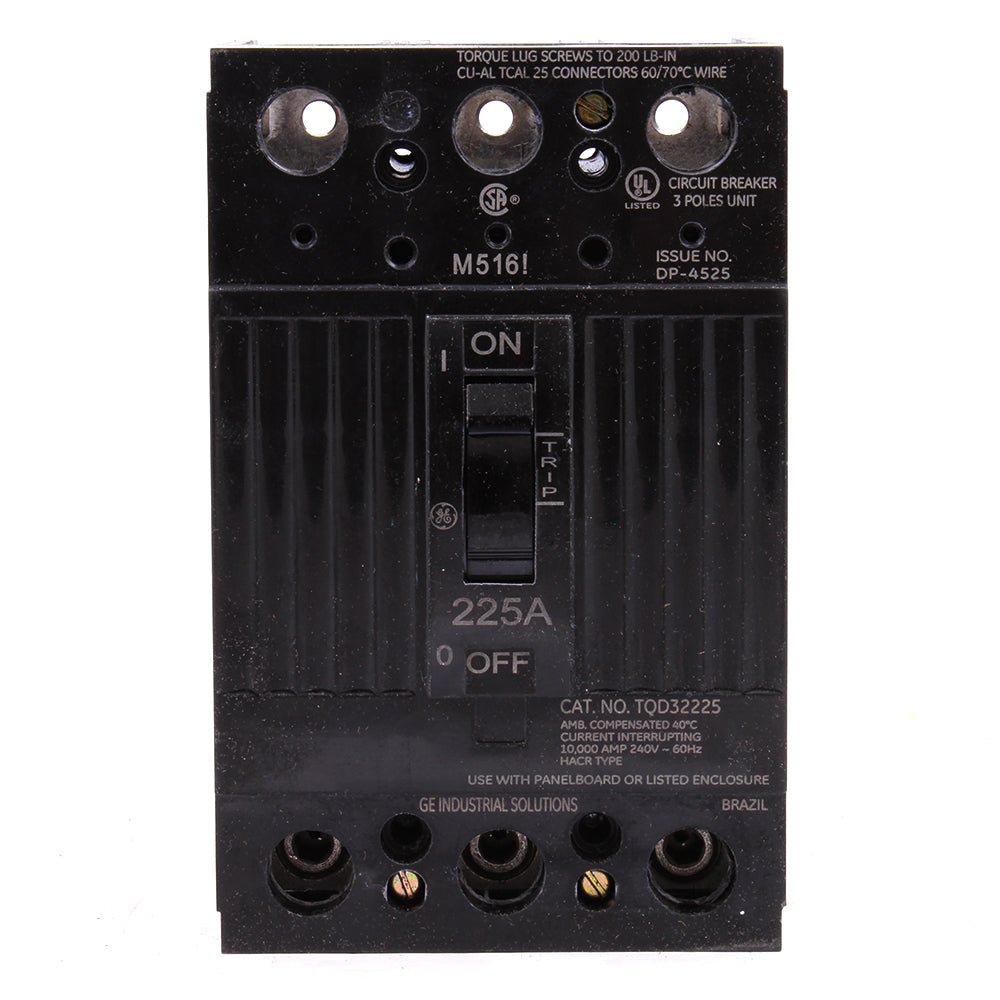

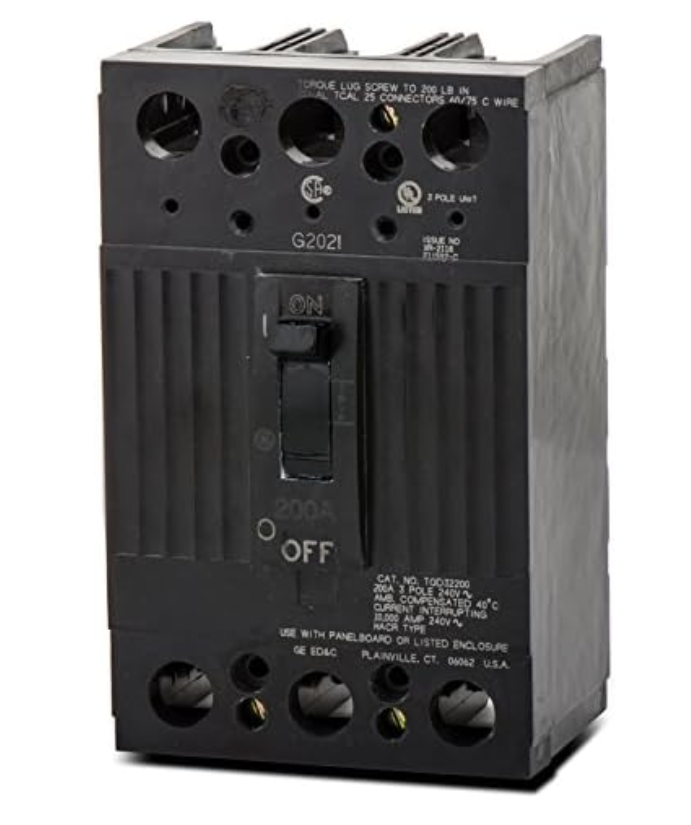

The TQD32225 is a General Electric Q-Line molded case circuit breaker rated 225A at 240 VAC, 3-pole, 3-phase, with a 10kA AIC interrupting rating at 240V and UL Listed under UL File E-11592 for service entrance, feeder, and branch circuit protection. The breaker uses a fixed thermal magnetic trip unit with long-time and instantaneous (LI) functions, bolt-on mounting, and load side lugs, and is built to the GE A-Series and Spectra Series panelboard footprint.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Commercial and industrial power distribution panelboards
• Service entrance, feeder, and branch circuit protection up to 225A
• Retrofit and replacement in GE A-Series and Spectra Series panelboards
• Motor and equipment branch circuit protection within the 225A load range

Key Features

• Thermal Magnetic Trip: Fixed long-time and instantaneous (LI) elements provide overload and short circuit protection
• 10kA Interrupting Rating: UL listed to safely clear fault currents up to 10,000A at 240V
• Bolt-On Mounting: Secures directly to panelboard bus for a stable, vibration-resistant connection
• Load Side Lugs: Factory-installed lugs sized for the breaker's rated conductor range at 40 deg C
• UL 489 Listed: Certified under UL File E-11592 for use as service, feeder, or branch protection
• Q-Line Panelboard Fit: Engineered to the GE A-Series and Spectra Series panelboard footprint

Specifications

• Manufacturer: General Electric (GE Industrial Solutions)
• Series: Q-Line
• Type: TQD
• Amperage: 225A
• Voltage Rating: 240 VAC
• Poles: 3
• Phase: 3
• Interrupting Rating: 10kA AIC at 240V
• Trip Unit: Thermal Magnetic, Fixed LI (Long-Time, Instantaneous)
• Mounting: Bolt-On
• Terminal Connection: Load Side Lugs
• Temperature Rating: 40 deg C
• Certification: UL Listed, UL File E-11592, UL 489
• Lifecycle Status: Discontinued by manufacturer, available while supplies last

Product Identification

• Dimensions: 6.56 in H x 4.13 in W x 2.63 in D (6-9/16 x 4-1/8 x 2-5/8 in)
• Weight: 3.00 lb
• UPC/GTIN: 783164021363

FAQ

• What is the TQD32225? A General Electric Q-Line molded case circuit breaker rated 225A, 3-pole, 240 VAC, with a 10kA interrupting rating.
• What is the interrupting rating of the TQD32225?&l


  Specifications

  • Part Number: TQD32225
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : TQD
  • Voltage : 240
  • Amperage : 225
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 783164021363
  • GTIN : 00783164021363
  • Weight : 3 lb
