Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD32175WL

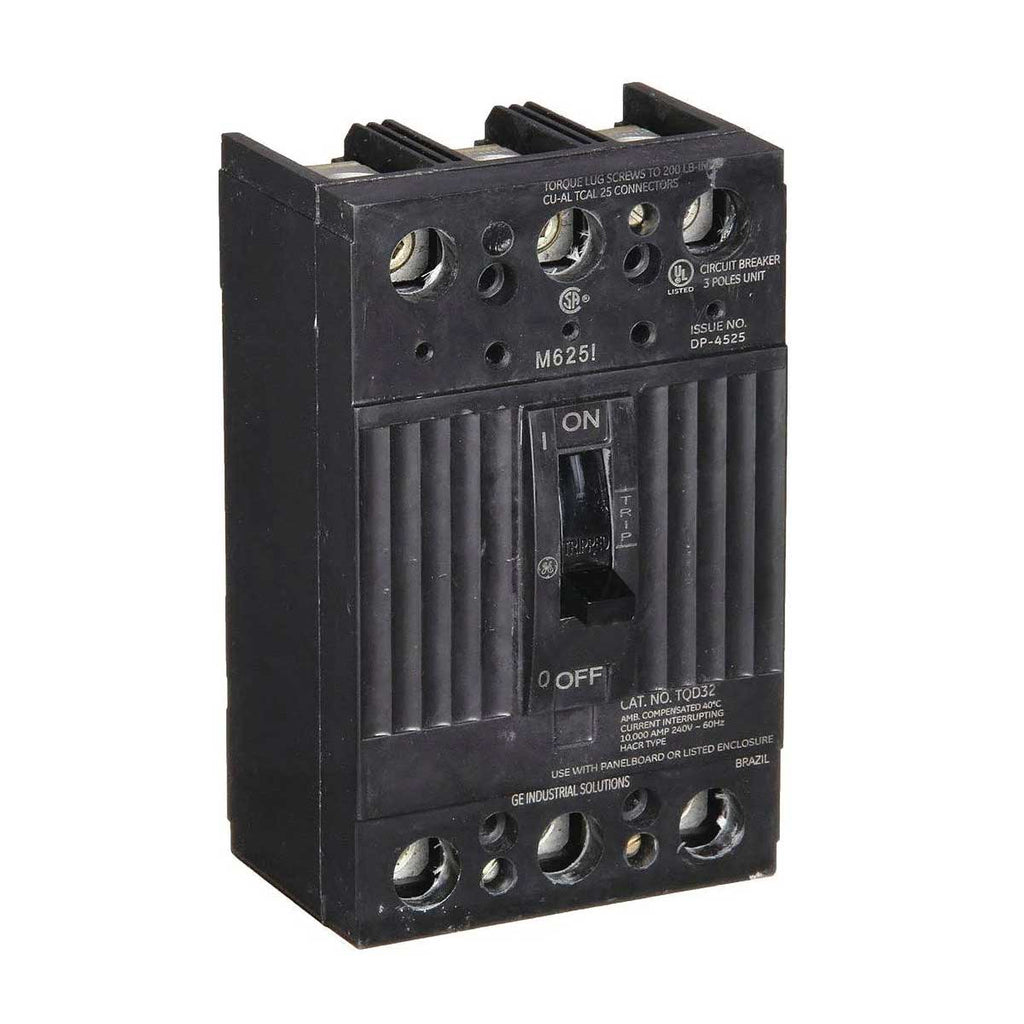

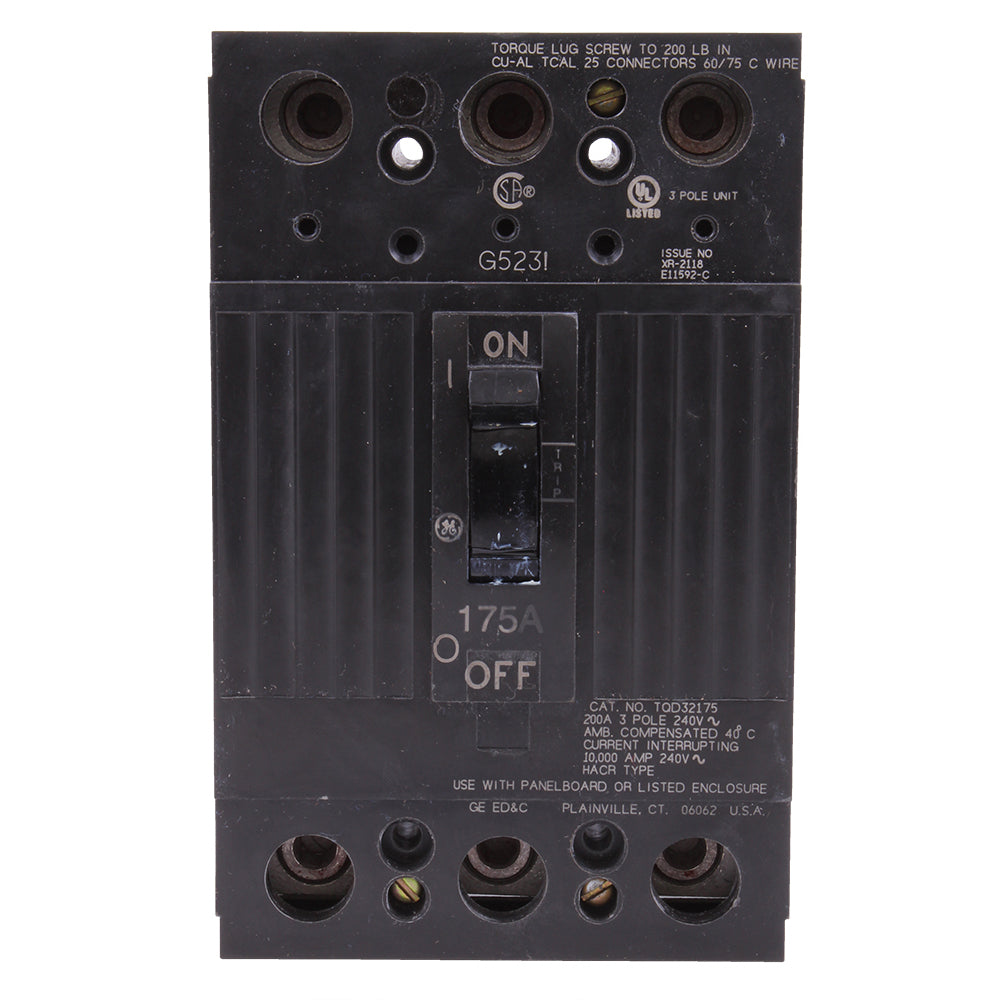

TQD32175WL is a General Electric 3-pole thermal magnetic molded case circuit breaker rated for 175 amps and 240 volts AC, designed for reliable circuit protection.This circuit breaker features a Q-Line frame with a non-interchangeable trip unit, suitable for 3-phase electrical systems. It has a 10kA interrupting rating at 240VAC, line and load side lug terminals, and supports feed-through mounting. The breaker is HACR rated and UL listed under file E11592, ensuring compliance with industry safety standards.
- Amperage: 175 A
- Voltage: 240 VAC
- Poles: 3
- Frame Type: Q-Line
- Interrupt Rating: 10kA at 240 VAC
- Trip Style: Non-Interchangeable Thermal Magnetic
- Mounting Type: Feed-Through Lugs
- Trip Function: LI (Long-time and Instantaneous fixed)
- Certifications: UL Listed (E11592), HACR Rated
- Suitable for Reverse Feed: Yes
- Lugs: TCAL25 Copper/Aluminum
Specifications
- Part Number: TQD32175WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164021332
- GTIN : 00783164021332
- Weight : 3
- Certification : UL
