- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFJ236250WL

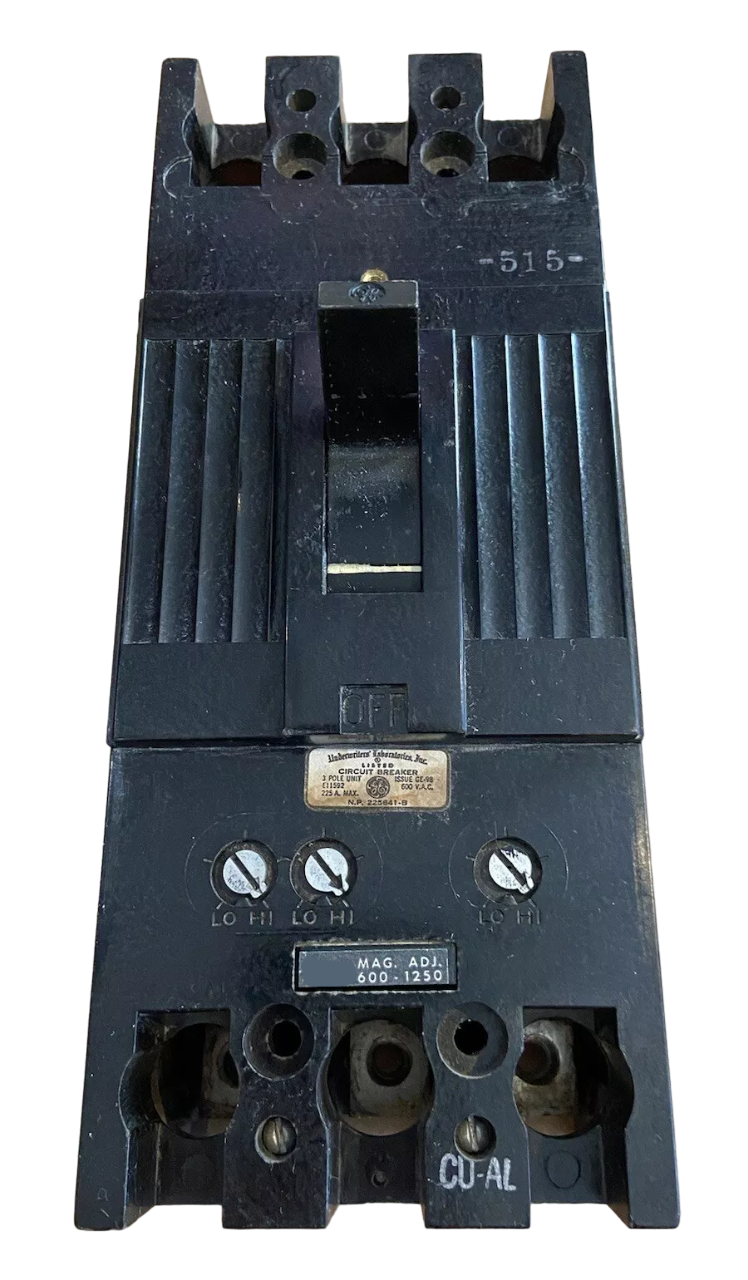

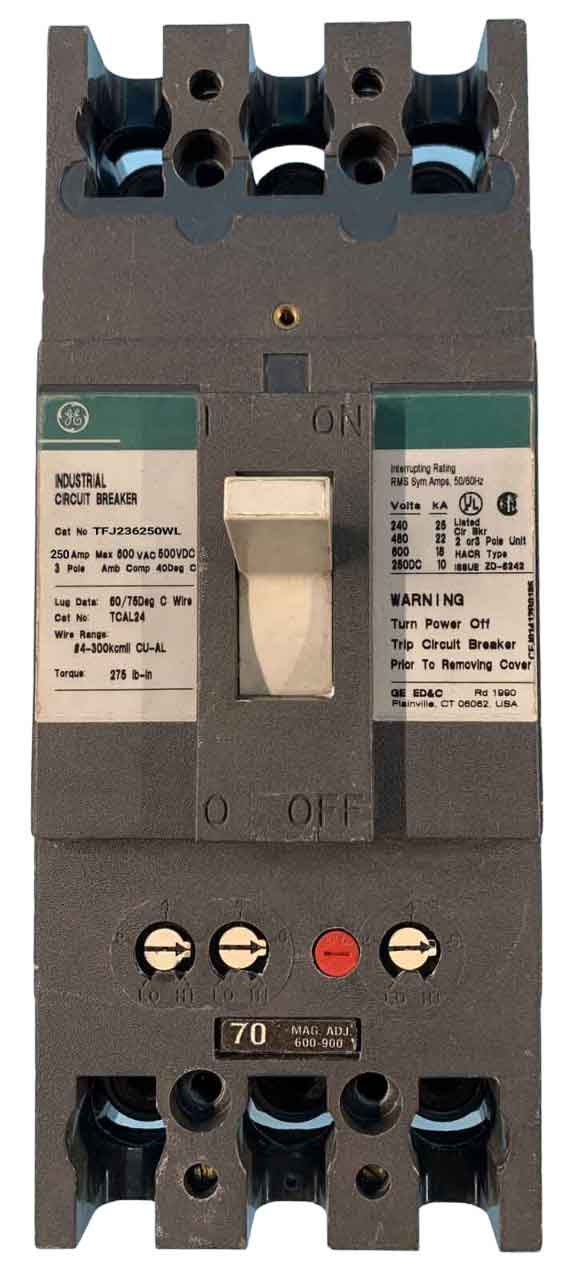

TFJ236250WL is a General Electric 3 pole, 600V, 250A molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This TFJ series breaker features an adjustable trip unit and is engineered for high interrupting capacity, making it suitable for demanding electrical environments. The TFJ236250WL is built with a robust TFJ frame and supports both copper and aluminum line/load lugs. It is rated for 600V AC and offers a high interrupting rating, ensuring safety and performance under fault conditions. The breaker is suitable for panelboard and switchgear applications, providing dependable circuit protection.
- Part Number: TFJ236250WL
- Manufacturer: General Electric
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Interrupting Rating: 22kA @ 480V
- Series/Frame: TFJ
- Mounting Type: Panelboard/Switchgear
- Trip Unit: Adjustable
- Line/Load Lugs: Copper/Aluminum
- Application: Commercial/Industrial
- Standards: UL Listed
Specifications
- Part Number: TFJ236250WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316419121
- Weight : 10
