Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFJ236080WL

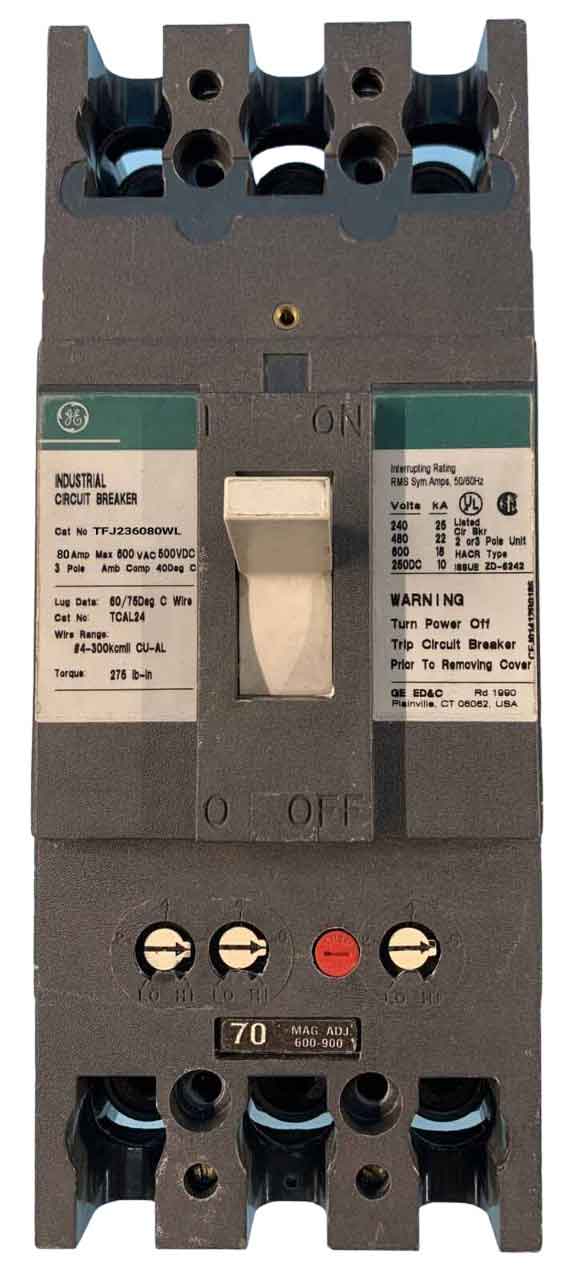

TFJ236080WL is a 3 pole, 80 amp, 600 volt molded case circuit breaker from General Electric's TFJ frame series.This circuit breaker features a thermal magnetic trip unit with an adjustable trip, designed for reliable protection in industrial and commercial power distribution applications. It has a high interrupting rating suitable for 600 VAC systems and is part of the F225 line family.
- Manufacturer: General Electric
- Amperage: 80 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: TFJ
- Interrupting Rating: 200 kA at 240 VAC (typical)
- Trip Unit: Thermal Magnetic, Adjustable
- Mounting Type: Molded Case
- Series/Family: F225 Line
- Certifications: Industry standard compliant
Specifications
- Part Number: TFJ236080WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078316406570
- Weight : 10
