Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFJ236080

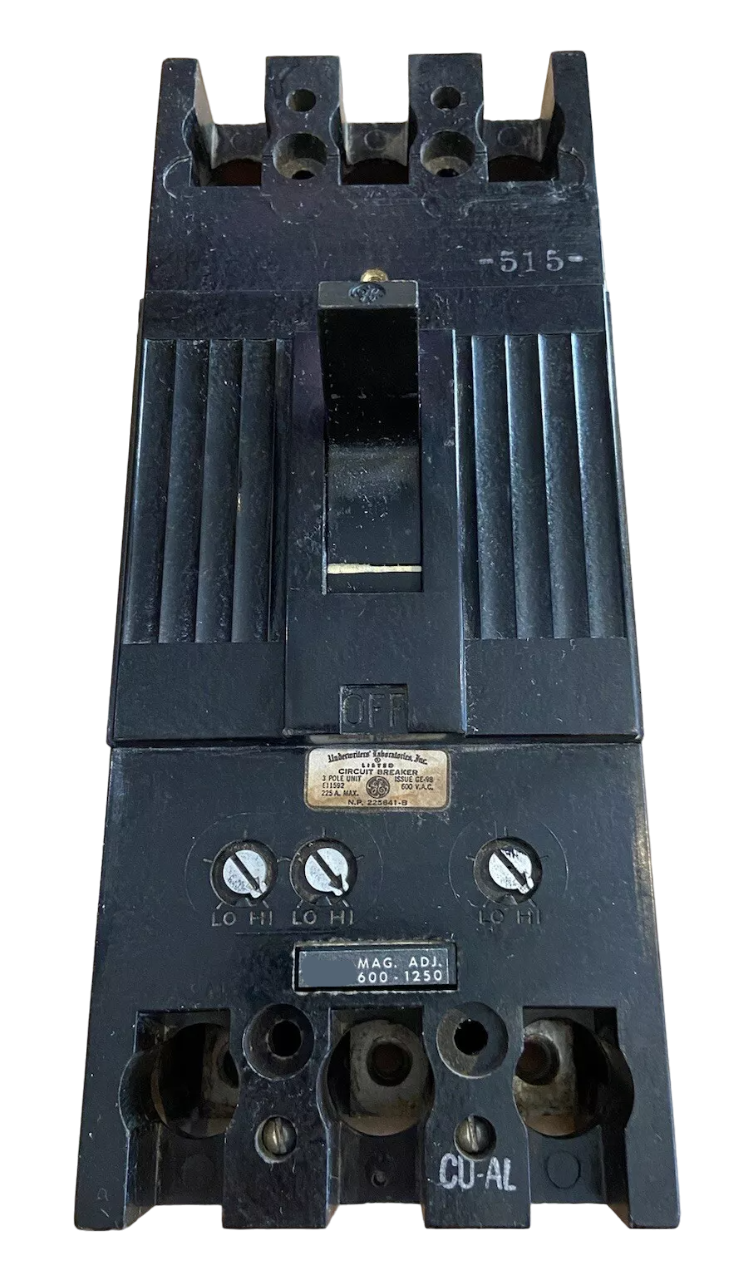

TFJ236080 is a General Electric 3 pole molded case circuit breaker rated for 80 amps and 600 volts AC, designed for reliable circuit protection.This thermal magnetic circuit breaker belongs to the TFJ frame of the F225 Line family and features long time and instantaneous trip functions. It has a 22kA interrupting rating at 480V and is suitable for reverse fed applications. The breaker includes line and load side lug terminals and is non-interchangeable trip type.
- Manufacturer: General Electric
- Amperage: 80 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Frame Type: TFJ
- Interrupt Rating: 22kA at 480V
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Suitable for Reverse Fed Applications
- Line and Load Side Lug Terminals
- Series: F225 Line
Specifications
- Part Number: TFJ236080
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 10
