2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFJ236225WL

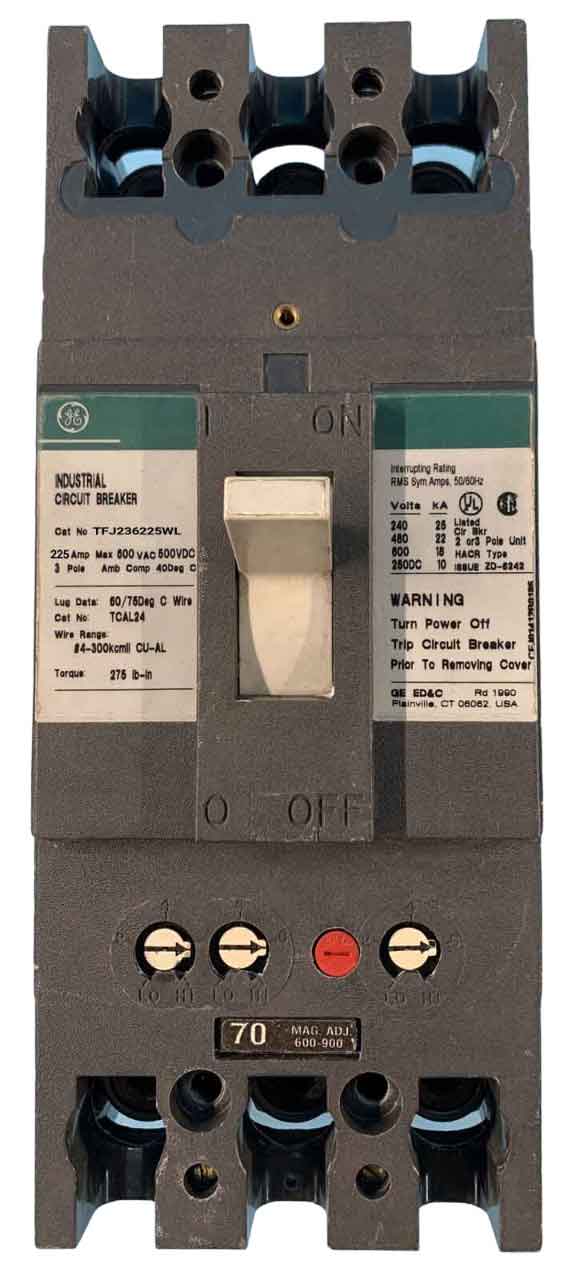

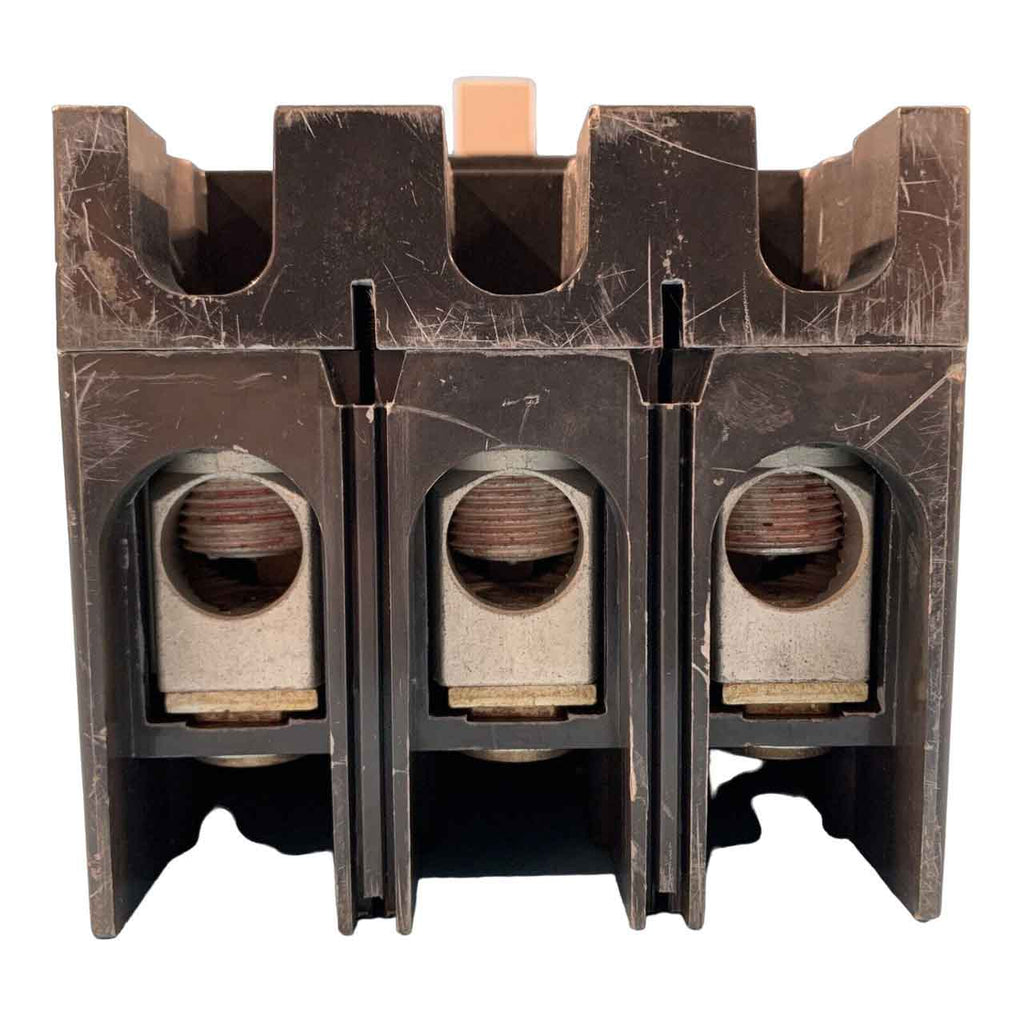

TFJ236225WL is a 225 amp, 600 volt, 3 pole molded case circuit breaker from General Electric designed for reliable circuit protection.This circuit breaker features the TFJ frame and offers adjustable trip settings. It is rated for use in 600 VAC systems and provides a high interrupting capacity suitable for demanding electrical applications. The breaker includes line and load side lugs for easy installation and is built to meet industry standards for safety and performance.
- Manufacturer: General Electric
- Part Number: TFJ236225WL
- Amperage: 225 A
- Voltage Rating: 600 V
- Poles: 3
- Frame Type: TFJ
- Interrupting Rating: 18 kA at 600 VAC, 22 kA at 480 VAC, 25 kA at 240 VAC
- Adjustable Trip
- Mounting Type: Molded Case
Specifications
- Part Number: TFJ236225WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316400779
- Weight : 9 lb
