Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

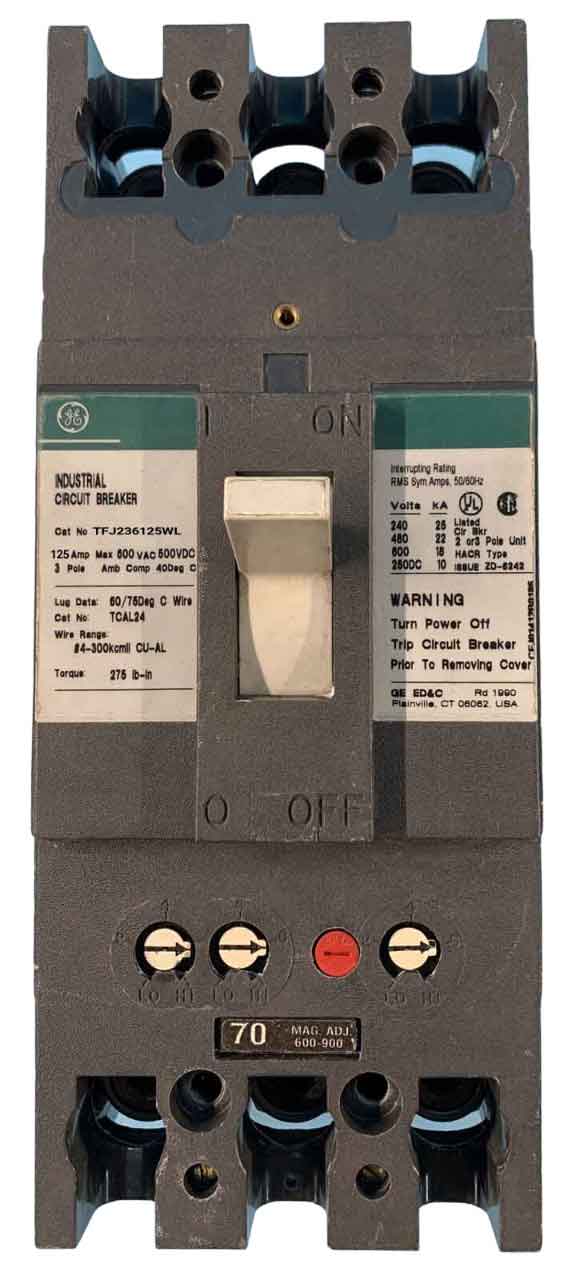

TFJ236125WL
TFJ236125WL is a 3-pole, 125 amp molded case circuit breaker from General Electric's F225 Line designed for reliable power distribution protection.This circuit breaker features a 600 Volt rating with a 22kA interrupting capacity at 480V, thermal magnetic trip unit, and TFJ frame style. It is suitable for industrial and commercial applications requiring robust overcurrent protection.
- Amperage: 125A
- Voltage: 600V
- Poles: 3
- Interrupt Rating: 22kA @ 480V
- Frame/Series: TFJ / F225 Line
- Trip Unit: Thermal Magnetic, Non-interchangeable
- Mounting Type: Feed-Thru
- Frequency: 50/60 Hz
- Certification: Tested to NETA specifications (for re-certified units)
- Application: Industrial and commercial power distribution
Specifications
- Part Number: TFJ236125WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316400770
- Weight : 9
