Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFJ236125

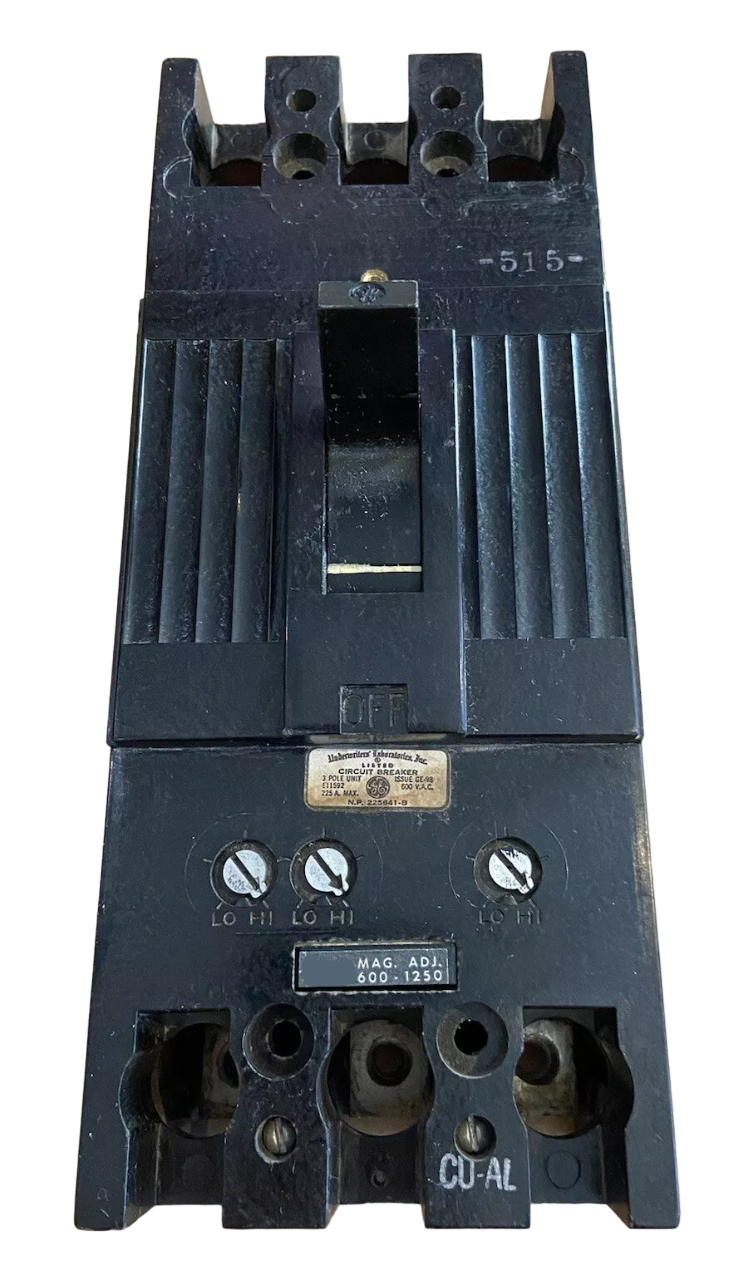

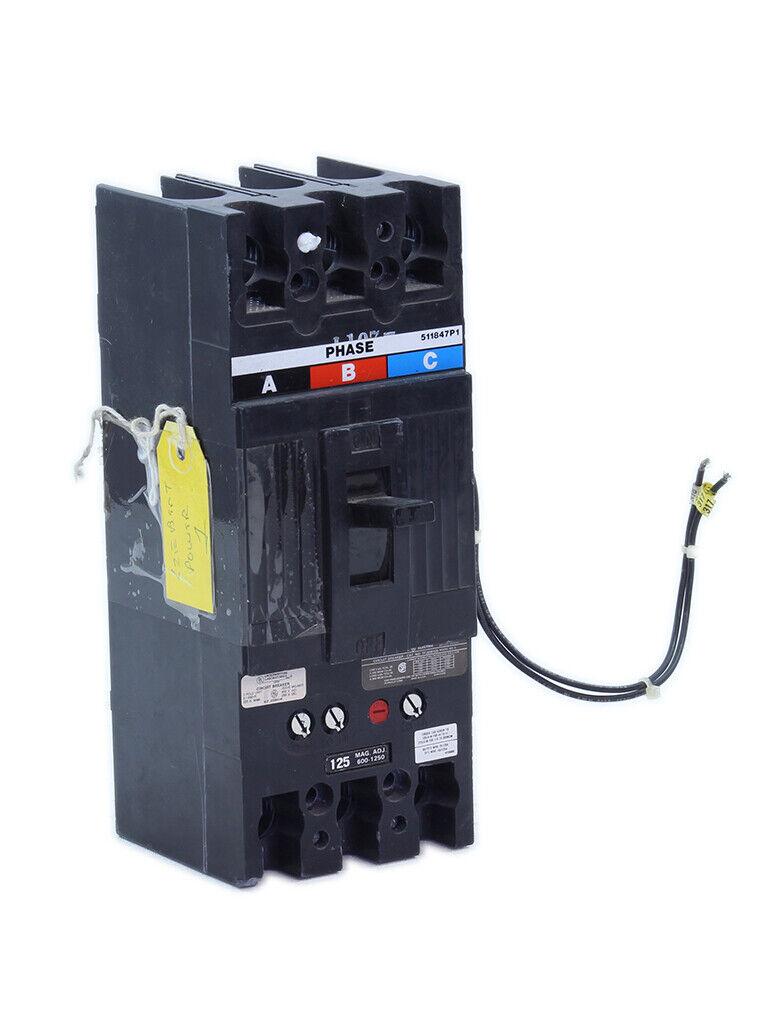

TFJ236125 is a General Electric 125 Amp, 600 Volt, 3 Pole Molded Case Circuit Breaker designed for industrial power distribution applications.TFJ236125 belongs to the F225 family line and features a bolt-on mounting type with a 22kA interrupt rating at 480V. It is a thermal magnetic trip unit breaker suitable for 3-phase systems, providing reliable circuit protection and compliance with UL 489 and ANSI C37 standards.
- Manufacturer: General Electric
- Part Number: TFJ236125
- Amperage: 125 Amps
- Voltage Rating: 600 Volts
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA at 480V AIC
- Series/Frame: F225 Line, TFJ Frame
- Trip Unit: Thermal Magnetic
- Phase: 3 Phase
- Certifications: UL 489, ANSI C37
Specifications
- Part Number: TFJ236125
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164007688
- Weight : 9
