Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

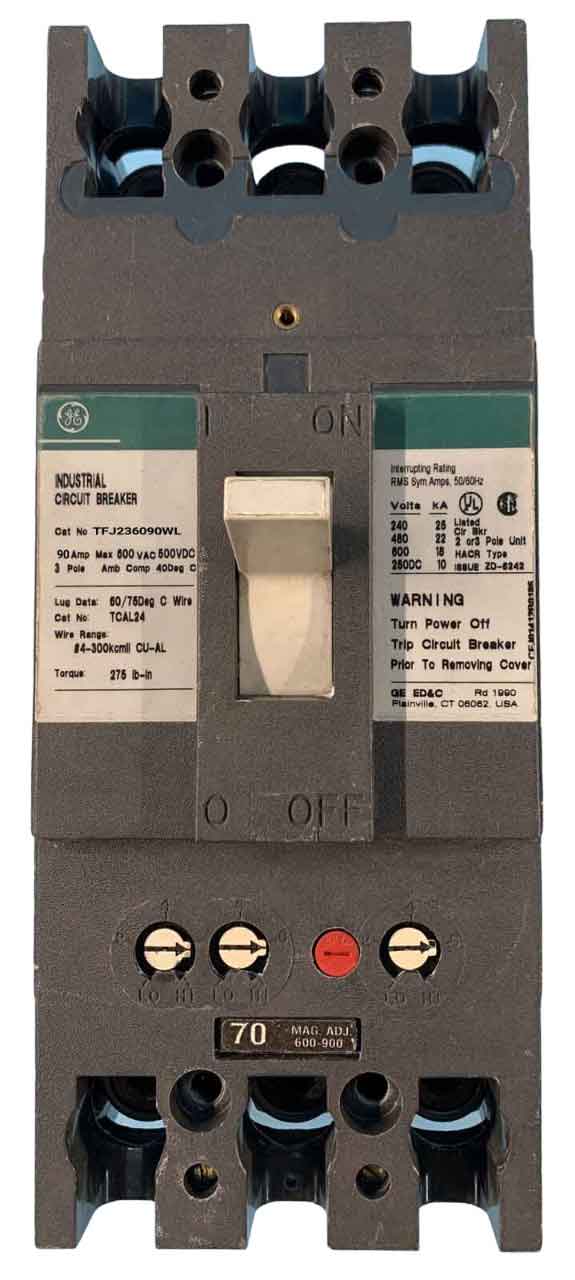

TFJ236090WL
TFJ236090WL is a General Electric 3 pole molded case circuit breaker rated for 90 amps and 600 volts AC, designed for industrial power distribution.This TFJ frame circuit breaker features a thermal magnetic trip unit, suitable for heavy power loads such as welding equipment and machine tools. It has a 22kA interrupt rating at 480 volts and is built to meet demanding electrical protection requirements.
- Amperage: 90 A
- Voltage: 600 V AC
- Poles: 3
- Frame Type: TFJ
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 22kA at 480 V
- Mounting Type: Feed-Thru
- Phase: 3
- Application: Industrial power distribution
- Manufacturer: General Electric
Specifications
- Part Number: TFJ236090WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFJ
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Weight : 9
